TPL

TL-SF1008D

Ean : 6935364020071

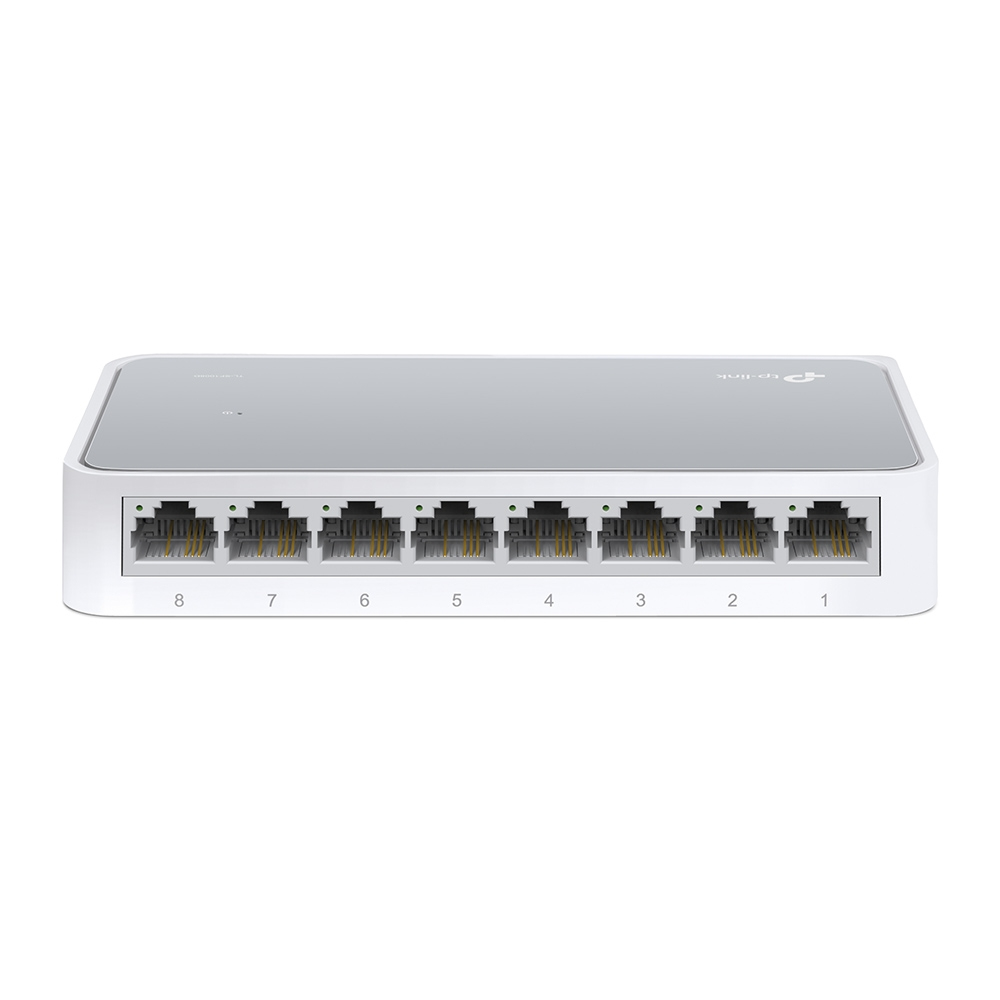

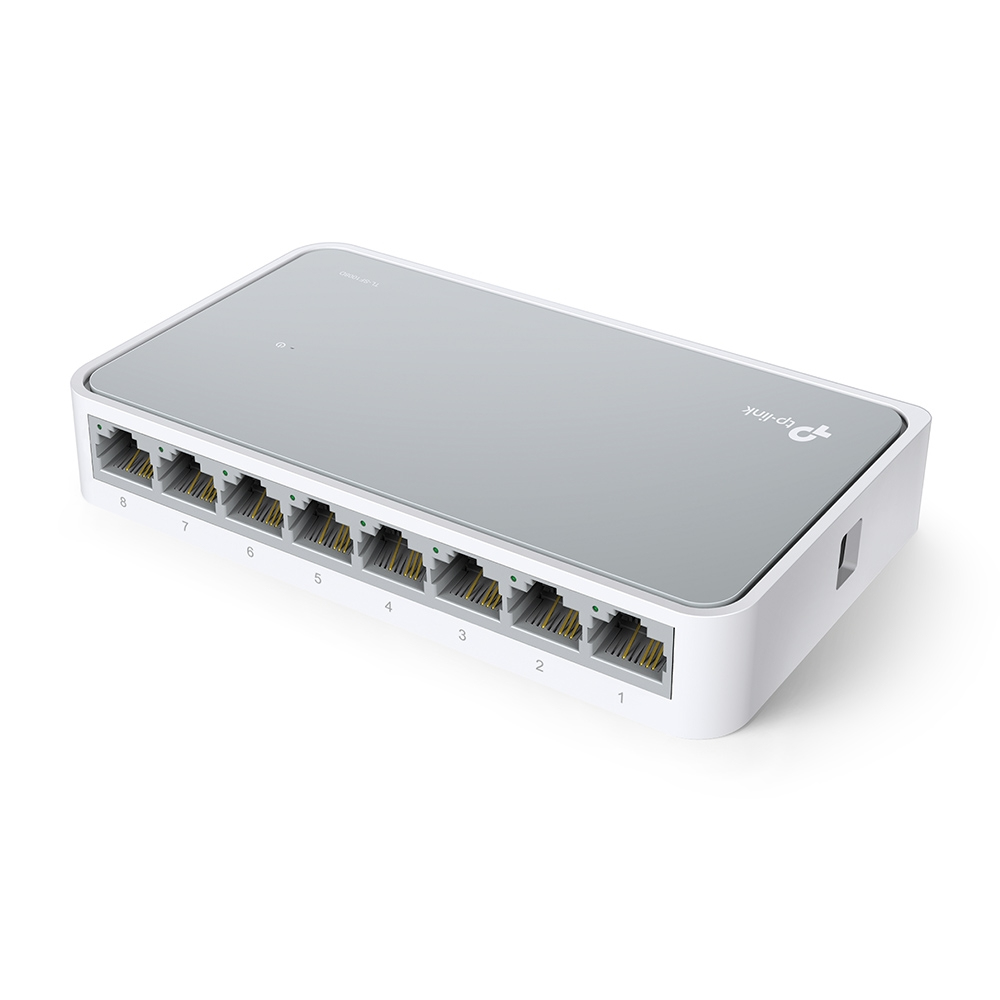

TP-Link TL-SF1008D switch 8 porte RJ45 10/100 Mbit/s

* Non viene rilasciata alcuna garanzia su eventuali errori delle descrizioni tecniche aggiuntive né sull'accuratezza delle foto, da intendersi come un mero servizio informativo
Caratteristiche di gestione
Tipo interruttore
What switch device has
Non gestito
Connettività
Quantità di porte RJ-45
The number of basic switching RJ-45 Ethernet ports (sockets).
8
Tipo di porte RJ-45
The type/category of basic switching RJ-45 Ethernet ports (sockets).
Fast Ethernet (10/100)
Quantità di porte Fast Ethernet (rame)
The number of RJ45 network interfaces supporting data transfer speeds of up to 100 Mbps.
8
Connettore di alimentazione
The type of electrical interface used to provide power to the network switch, such as a C13 socket or a DC-in jack.
Jack DC-ingresso
Collegamento in rete
Standard di rete
The way in which the network is working
IEEE 802.3, IEEE 802.3ab, IEEE 802.3x
Supporto 10G
The product can use Oracle 10G
No
Tecnologia Ethernet su cavi in rame
The specific standard used for data transmission over copper twisted-pair cables (e.g., 1000BASE-T).
10BASE-T, 100BASE-TX
Full duplex
Un sistema duplex completo permette la comunicazione in entrambi le direzioni e, al contrario dell' opzione half-duplex, consente di lavorare contemporaneamente.
Sì
Half-Duplex
Indicates whether the device supports half-duplex communication, where data can be sent or received but not both simultaneously.
Sì
Supporto controllo flusso
Indicates whether the device supports the management of data transmission rates to prevent buffer overflow.
Sì
Auto MDI/MDI-X
A Medium Dependent Interface (MDI) describes the interface (both physical and electrical) in a computer network from a physical layer implementation to the physical medium used to carry the transmission. Ethernet over twisted pair also defines a medium dependent interface crossover (MDIX) interface. Auto-MDIX ports on newer network interfaces detect if the connection would require a crossover
Sì
Auto-negoziazione
Indicates whether the device can automatically communicate with a connected network partner to determine the highest common transmission speed and duplex mode.
Sì
Trasmissione dati
Capacità di commutazione
The data transfer capacity of the switch per second.
1,6 Gbit/s
Dimensioni tavola MAC
The MAC address is the 'Media Access Control Address'. It is a unique address given to a network interface controller (NIC) in a device. A MAC address table shows the addresses in a table format.
1000 voci
Store-and-forward
Indicates whether the device buffers the entire incoming packet to verify its integrity before forwarding it to the destination.
Sì
Buffer di memoria di pacchetto
The amount of memory available in the network switch to temporarily store data packets during congestion, typically measured in megabytes (MB) or kilobytes (KB).
0,768 MB
Protocolli
Protocolli di rete supportati
Protocollo di rete riscontrato compatibile con questo prodotto
CSMA/CD, TCP/IP
Design
Montaggio rack
The type of mounting that can position devices in a shelving system (rack).
No
Impilabile
Devices can be placed on top of each other.
No
Colore del prodotto
The colour e.g. red
Bianco
Indicatori LED
The specific status lights available on the unit to provide visual feedback on its current state or connectivity (e.g., AC input, ACT, or Access).
Sì
Prestazione
Fanless
Indicates whether the device operates without an internal fan for cooling, resulting in silent operation.
Sì
Gestione energetica
Alimentazione
What is providing power for the product e.g. mains electricity.
dC
Fonte di alimentazione inclusa
There is a power supply with this product.
No
Tensione di ingresso AC
The voltage of the AC electricity that is inputted into the product.
100 - 240 V
Frequenza di ingresso AC
The range of alternating current frequencies the device can accept from the power source, measured in hertz (e.g., 45 - 65).
50/60 Hz
Voltaggio input DC
The range or specific value of direct current voltage required for the device to operate, measured in volts (e.g., 12 or 10 - 58).
5 V
Corrente d'ingresso
The amount of electrical current drawn by the device during operation, typically measured in amperes (A) or milliamperes (mA).
0.6 A
Consumo energetico (max)
The maximum amount of power used by the device.
2,05 W
Power over Ethernet (PoE)
Supporto Power over Ethernet (PoE)
The device supports Power over Ethernet (PoE)
No
Condizioni ambientali
Intervallo temperatura di funzionamento
The minimum and maximum temperatures at which the product can be safely operated.
0 - 40 °C
Intervallo di temperatura
The minimum and maximum temperatures at which the product can be safely stored.
-40 - 70 °C
Range di umidità di funzionamento
The range of relative humidity, expressed as a percentage, within which the device can function correctly without damage or performance loss.
10 - 90%
Umidità
The permissible range of relative humidity, expressed as a percentage, within which the product can be stored without damage.
5 - 95%
Dissipazione del calore
Il calore misurato in unità di misura inglese per ore, generate dal fornitore di energia
6,99 BTU/h
Dimensioni e peso
Larghezza
The measurement or extent of something from side to side.
134,5 mm
Profondità
The distance from the front to the back of something.
79 mm
Altezza
Altezza del prodotto
22,5 mm
Contenuto dell'imballo
Guida utente
Indicates whether a user manual or instructional guide is included with the product.
Sì
Dati su imballaggio
Adattatore AC/DC
Indicates whether a power supply unit for connecting the device to an AC outlet is provided in the package.
Sì
Tipo di imballo
The type of product package e.g. box.
Scatola
Larghezza imballo
The distance from one side of the packaging to the other.
100 mm
Profondità imballo
The distance from the front to the back of the packaging.
139 mm
Altezza imballo
The distance from the top to the bottom of the packaging.
85 mm
Peso dell'imballo
Weight of the packaged product.
357 g
Sostenibilità
Conformità alla sostenibilità
Indicates whether the product complies with established environmental and sustainability standards.
Sì
Certificati di sicurezza
Certificati di conformità
Indicates which regulatory, safety, and environmental standards the product complies with, as verified by recognized authorities or certification bodies.
CE, Federal Communications Commission (FCC), RoHS
Dati logistici
Codice del Sistema Armonizzato (SA)
The standardized numerical method of classifying traded products used by customs authorities around the world to identify goods for tariffs and statistics.
85176990
TP-Link TL-SF1008D switch 8 porte RJ45 10/100 Mbit/s. Tipo interruttore: Non gestito. Tipo di porte RJ-45: Fast Ethernet (10/100), Quantità di porte RJ-45: 8. Full duplex. Dimensioni tavola MAC: 1000 voci, Capacità di commutazione: 1,6 Gbit/s. Standard di rete: IEEE 802.3, IEEE 802.3ab, IEEE 802.3x. Voltaggio input DC: 5 V. Connettore di alimentazione: Jack DC-ingresso
