TPL

TL-SG1016DE

Ean : 1210002616751

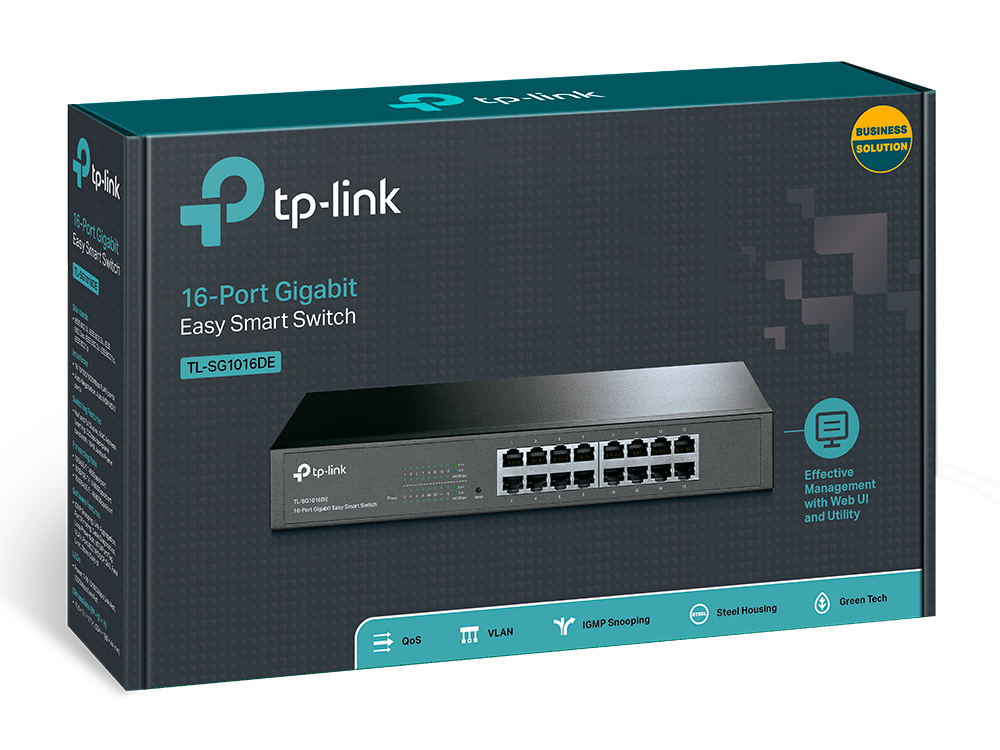

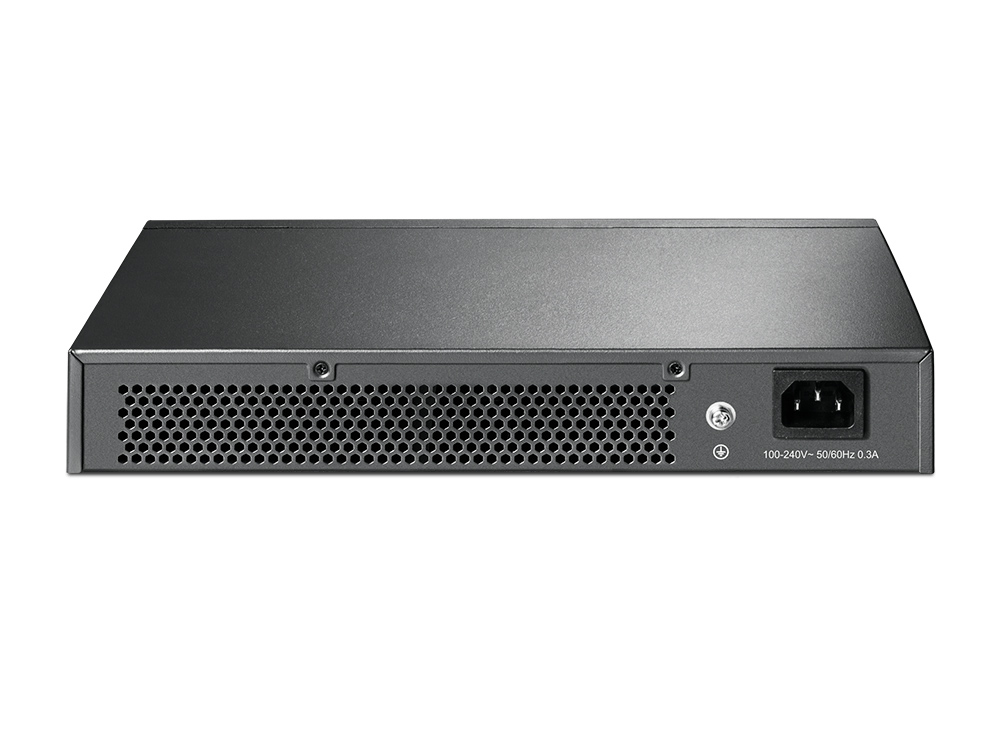

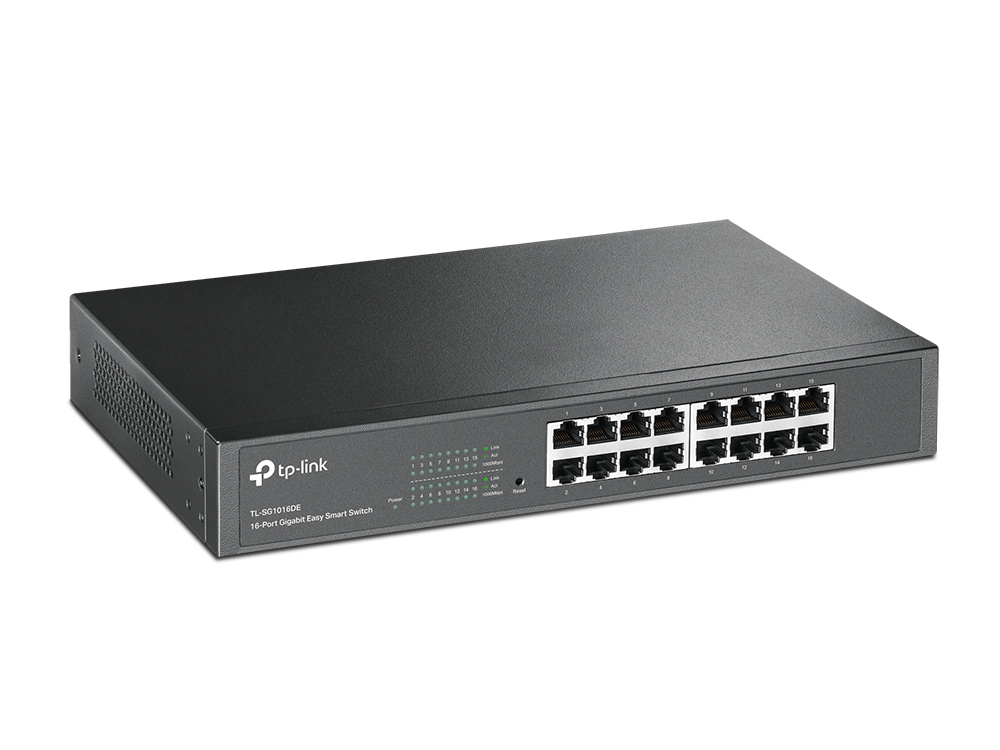

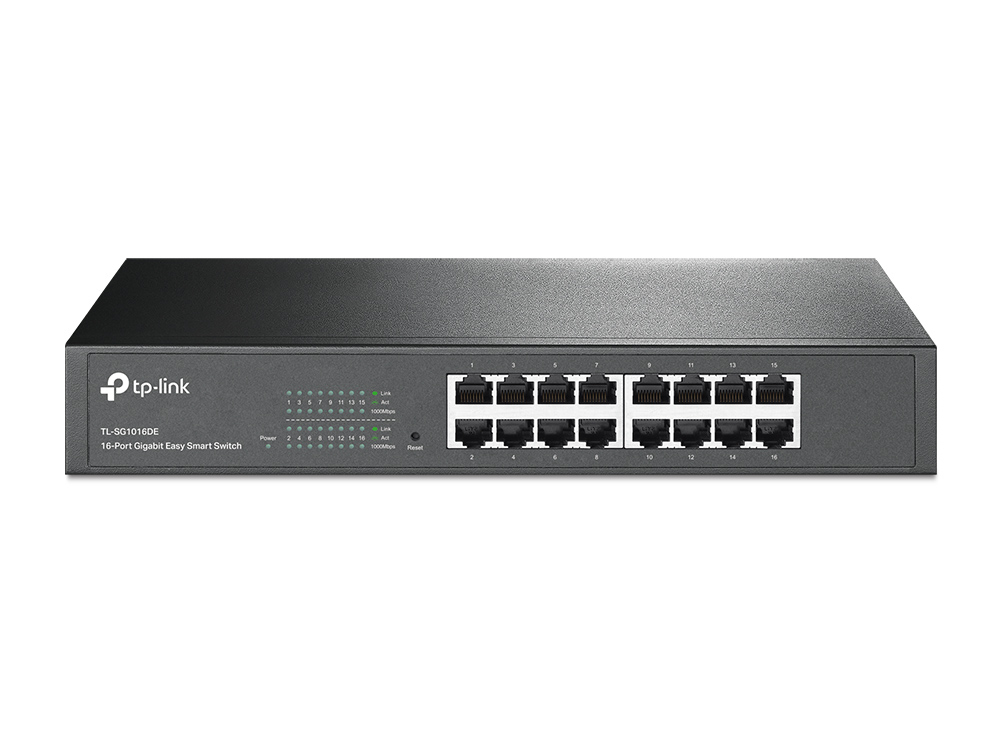

TP-Link TL-SG1016DE Gestito L2 Gigabit Ethernet (10/100/1000) 1U Nero

* Non viene rilasciata alcuna garanzia su eventuali errori delle descrizioni tecniche aggiuntive né sull'accuratezza delle foto, da intendersi come un mero servizio informativo
Caratteristiche di gestione
Tipo interruttore
What switch device has
Gestito
Livello del commutatore
A network switch is a computer networking device that links networking segments. A switch has different layers
L2
Supporto qualità del servizio (QoS)
Indicates whether the device supports Quality of Service (QoS) to prioritize specific network traffic to ensure performance for critical applications.
Sì
Connettività
Quantità di porte RJ-45
The number of basic switching RJ-45 Ethernet ports (sockets).
16
Tipo di porte RJ-45
The type/category of basic switching RJ-45 Ethernet ports (sockets).
Gigabit Ethernet (10/100/1000)
Quantità di porte Gigabit Ethernet (rame)
The number of RJ45 copper ports supporting data transfer speeds of up to 1 Gbps (e.g. 24).
16
Connettore di alimentazione
The type of electrical interface used to provide power to the network switch, such as a C13 socket or a DC-in jack.
Jack di ingresso AC
Collegamento in rete
Standard di rete
The way in which the network is working
IEEE 802.1p, IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
Supporto 10G
The product can use Oracle 10G
No
Tecnologia Ethernet su cavi in rame
The specific standard used for data transmission over copper twisted-pair cables (e.g., 1000BASE-T).
100BASE-TX, 100BASE-T, 1000BASE-T
Tipi di cavi supportati
Specifies the types of cabling compatible with the product (e.g. Cat6, Cat6a).
Cat3, Cat5, Cat6
Mirroring della porta
Indicates whether the network switch can copy traffic from one or more ports to another port for monitoring and analysis purposes.
Sì
Supporto controllo flusso
Indicates whether the device supports the management of data transmission rates to prevent buffer overflow.
Sì
Raggruppamento link
Indicates whether the device supports combining multiple network connections into a single logical link to increase throughput and provide redundancy.
Sì
Controllo Broadcast storm
Indicates whether the device can monitor and limit the amount of broadcast traffic to prevent network congestion and potential crashes.
Sì
Limitazione della velocità
Indicates whether the device can control the maximum amount of network traffic allowed to pass through a specific port or interface to prevent congestion.
Sì
Auto MDI/MDI-X
A Medium Dependent Interface (MDI) describes the interface (both physical and electrical) in a computer network from a physical layer implementation to the physical medium used to carry the transmission. Ethernet over twisted pair also defines a medium dependent interface crossover (MDIX) interface. Auto-MDIX ports on newer network interfaces detect if the connection would require a crossover
Sì
Auto-negoziazione
Indicates whether the device can automatically communicate with a connected network partner to determine the highest common transmission speed and duplex mode.
Sì
VLAN support
A Virtual Local Area Network (VLAN) consists of a group of computers and switches that can be physically distributed over different networks and buildings
Sì
Caratteristiche della LAN virtuale
Specifies the supported methods for segmenting a network into multiple logical broadcast domains on the switch or access point (e.g., MAC address-based VLAN or Management VLAN).
Port-based VLAN, Tagged VLAN
Numero di VLA
The maximum number of virtual local area networks that can be configured on the device to segment network traffic.
32
Trasmissione dati
Capacità di commutazione
The data transfer capacity of the switch per second.
32 Gbit/s
tasso di inoltro
The number of packets the device can process and send per second, measured in millions of packets per second (e.g., 148.8 Mpps).
23,8 Mpps
Dimensioni tavola MAC
The MAC address is the 'Media Access Control Address'. It is a unique address given to a network interface controller (NIC) in a device. A MAC address table shows the addresses in a table format.
8000 voci
Store-and-forward
Indicates whether the device buffers the entire incoming packet to verify its integrity before forwarding it to the destination.
Sì
Numero di code
The total number of hardware buffers or priority queues available for managing data traffic flow.
4
Supporto Jumbo Frames
Indicates whether the device supports Ethernet frames with a payload larger than the standard 1500 bytes to increase data transfer efficiency.
Sì
Frame Jumbo
Indicates the support for Ethernet frames larger than the standard 1500 bytes to increase data transfer efficiency (e.g. 9000 bytes).
9000
Buffer di memoria di pacchetto
The amount of memory available in the network switch to temporarily store data packets during congestion, typically measured in megabytes (MB) or kilobytes (KB).
0,512 MB
Sicurezza
Funzione IGMP snooping
Indicates whether the device can optimize multicast traffic by ensuring it is only forwarded to the ports that have requested it.
Sì
Design
Montaggio rack
The type of mounting that can position devices in a shelving system (rack).
Sì
Fattore di forma
Descrizione delle caratteristiche , e/o grandezza del prodotto, incluso modello
1U
Colore del prodotto
The colour e.g. red
Nero
Materiale della scocca
What the casing of the product is made of.
Metallo
Indicatori LED
The specific status lights available on the unit to provide visual feedback on its current state or connectivity (e.g., AC input, ACT, or Access).
Sì
Prestazione
Sistema operativo compatibile
Elenco dei desktop testai dai sistemi operativi e compatibili con questo prodotto, incluso di versione e nome
Windows
lunghezza massima cavo
The maximum distance a cable can span while maintaining a stable and reliable signal connection, typically measured in metres.
100 m
Gestione energetica
Alimentazione
What is providing power for the product e.g. mains electricity.
AC
Fonte di alimentazione inclusa
There is a power supply with this product.
Sì
Tensione di ingresso AC
The voltage of the AC electricity that is inputted into the product.
100 - 240 V
Frequenza di ingresso AC
The range of alternating current frequencies the device can accept from the power source, measured in hertz (e.g., 45 - 65).
50/60 Hz
Consumo energetico (max)
The maximum amount of power used by the device.
19,15 W
Power over Ethernet (PoE)
Supporto Power over Ethernet (PoE)
The device supports Power over Ethernet (PoE)
No
Condizioni ambientali
Intervallo temperatura di funzionamento
The minimum and maximum temperatures at which the product can be safely operated.
0 - 40 °C
Intervallo di temperatura
The minimum and maximum temperatures at which the product can be safely stored.
-40 - 70 °C
Range di umidità di funzionamento
The range of relative humidity, expressed as a percentage, within which the device can function correctly without damage or performance loss.
10 - 90%
Umidità
The permissible range of relative humidity, expressed as a percentage, within which the product can be stored without damage.
5 - 90%
Dissipazione del calore
Il calore misurato in unità di misura inglese per ore, generate dal fornitore di energia
34,52 BTU/h
Dimensioni e peso
Larghezza
The measurement or extent of something from side to side.
284 mm
Profondità
The distance from the front to the back of something.
180 mm
Altezza
Altezza del prodotto
44 mm
Contenuto dell'imballo
Cavi inclusi
Specifies the types and quantities of connection cables provided with the product (e.g., 3.5 mm to 3.5 mm or SATA).
AC
Guida utente
Indicates whether a user manual or instructional guide is included with the product.
Sì
Kit di montaggio per rack
Indicates whether the necessary hardware is included to install the unit into a standard 19-inch equipment rack.
Sì
Dati su imballaggio
Tipo di imballo
The type of product package e.g. box.
Scatola
CD di installazione
Indicates whether the product is supplied with a resource compact disc containing drivers or documentation.
Sì
Larghezza imballo
The distance from one side of the packaging to the other.
250 mm
Profondità imballo
The distance from the front to the back of the packaging.
400 mm
Altezza imballo
The distance from the top to the bottom of the packaging.
80 mm
Peso dell'imballo
Weight of the packaged product.
1,98 kg
Sostenibilità
Conformità alla sostenibilità
Indicates whether the product complies with established environmental and sustainability standards.
Sì
Certificati di sicurezza
Certificati di conformità
Indicates which regulatory, safety, and environmental standards the product complies with, as verified by recognized authorities or certification bodies.
CE, Federal Communications Commission (FCC), RoHS
TP-Link TL-SG1016DE. Tipo interruttore: Gestito, Livello del commutatore: L2. Tipo di porte RJ-45: Gigabit Ethernet (10/100/1000), Quantità di porte RJ-45: 16. Dimensioni tavola MAC: 8000 voci, Capacità di commutazione: 32 Gbit/s. Standard di rete: IEEE 802.1p, IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x. Connettore di alimentazione: Jack di ingresso AC. Montaggio rack, Fattore di forma: 1U
