TPL

TL-SG2210P

Ean : 6935364030698

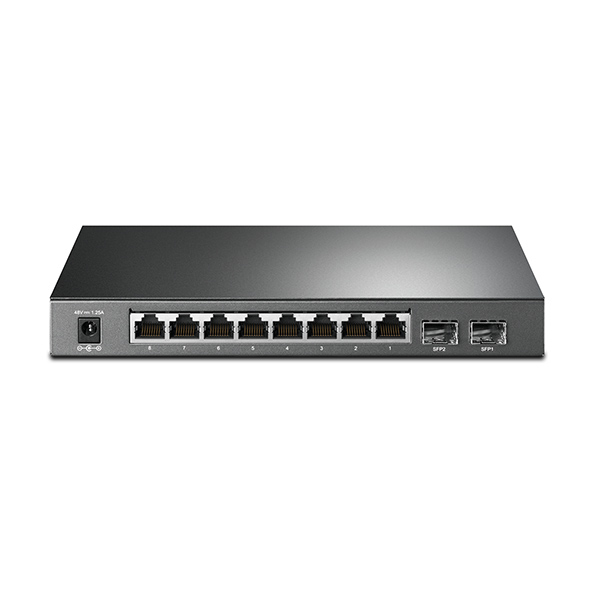

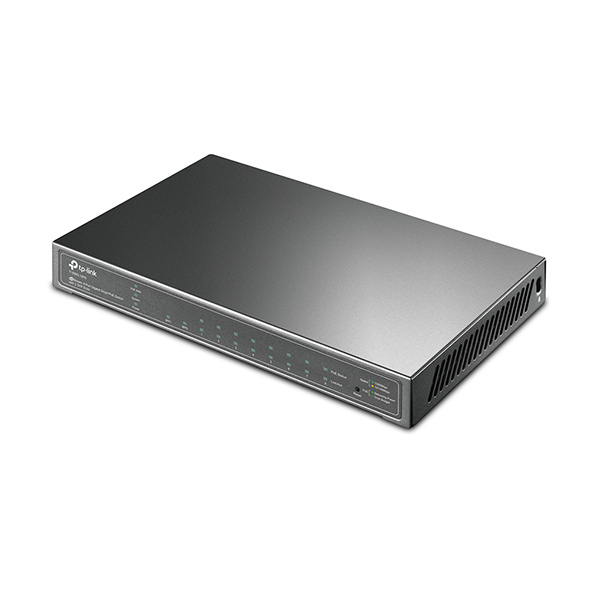

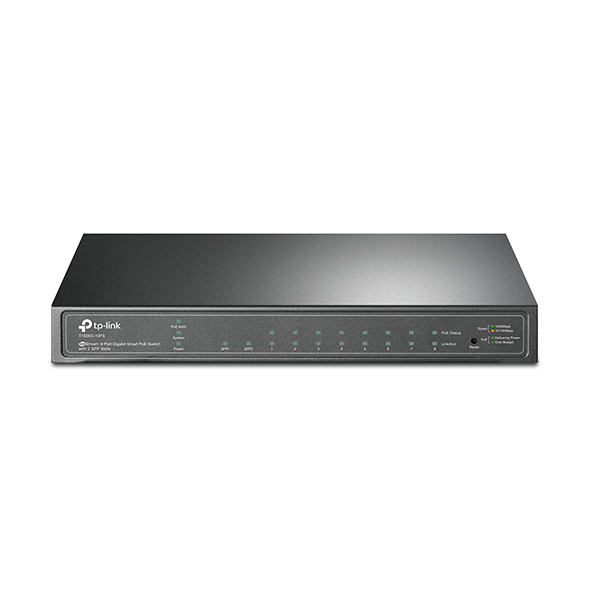

TP-Link T1500G-10PS(TL-SG2210P) Gestito L2 Gigabit Ethernet (10/100/1000) Supporto Power over Ethernet (PoE) Nero

* Non viene rilasciata alcuna garanzia su eventuali errori delle descrizioni tecniche aggiuntive né sull'accuratezza delle foto, da intendersi come un mero servizio informativo
Caratteristiche di gestione
Tipo interruttore
What switch device has
Gestito
Livello del commutatore
A network switch is a computer networking device that links networking segments. A switch has different layers
L2
Supporto qualità del servizio (QoS)
Indicates whether the device supports Quality of Service (QoS) to prioritize specific network traffic to ensure performance for critical applications.
Sì
Gestione web-based
Using a website/web application to manage something.
Sì
Ispezione ARP
Indicates whether the device supports Dynamic ARP Inspection to prevent ARP spoofing attacks by validating Address Resolution Protocol packets.
Sì
Registro evento di sistema
Indicates whether the device maintains a record of internal system events and status changes for diagnostic purposes.
Sì
Supporto MIB
Indicates whether the device supports the Management Information Base for network management and monitoring via protocols such as SNMP.
RFC1213, RFC2233, RFC1643, RFC2620, RFC2618, RFC2925, RFC1493, RFC2674, RFC2819, RFC2021
Connettività
Quantità di porte RJ-45
The number of basic switching RJ-45 Ethernet ports (sockets).
8
Tipo di porte RJ-45
The type/category of basic switching RJ-45 Ethernet ports (sockets).
Gigabit Ethernet (10/100/1000)
Quantità di porte Gigabit Ethernet (rame)
The number of RJ45 copper ports supporting data transfer speeds of up to 1 Gbps (e.g. 24).
8
Quantità di slot per modulo SFP
The total number of available slots for inserting Small Form-factor Pluggable (SFP) transceiver modules.
2
Collegamento in rete
Standard di rete
The way in which the network is working
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Supporto 10G
The product can use Oracle 10G
No
Tipi di cavi supportati
Specifies the types of cabling compatible with the product (e.g. Cat6, Cat6a).
Cat3, Cat4, Cat5, Cat5e
Mirroring della porta
Indicates whether the network switch can copy traffic from one or more ports to another port for monitoring and analysis purposes.
Sì
Full duplex
Un sistema duplex completo permette la comunicazione in entrambi le direzioni e, al contrario dell' opzione half-duplex, consente di lavorare contemporaneamente.
Sì
Half-Duplex
Indicates whether the device supports half-duplex communication, where data can be sent or received but not both simultaneously.
Sì
Supporto controllo flusso
Indicates whether the device supports the management of data transmission rates to prevent buffer overflow.
Sì
Raggruppamento link
Indicates whether the device supports combining multiple network connections into a single logical link to increase throughput and provide redundancy.
Sì
Controllo Broadcast storm
Indicates whether the device can monitor and limit the amount of broadcast traffic to prevent network congestion and potential crashes.
Sì
Limitazione della velocità
Indicates whether the device can control the maximum amount of network traffic allowed to pass through a specific port or interface to prevent congestion.
Sì
Auto MDI/MDI-X
A Medium Dependent Interface (MDI) describes the interface (both physical and electrical) in a computer network from a physical layer implementation to the physical medium used to carry the transmission. Ethernet over twisted pair also defines a medium dependent interface crossover (MDIX) interface. Auto-MDIX ports on newer network interfaces detect if the connection would require a crossover
Sì
Apertura albero di protocollo
Indicates whether the device supports a network protocol that prevents loops in a bridge network topology.
Sì
Auto-negoziazione
Indicates whether the device can automatically communicate with a connected network partner to determine the highest common transmission speed and duplex mode.
Sì
VLAN support
A Virtual Local Area Network (VLAN) consists of a group of computers and switches that can be physically distributed over different networks and buildings
Sì
Trasmissione dati
Capacità di commutazione
The data transfer capacity of the switch per second.
20 Gbit/s
tasso di inoltro
The number of packets the device can process and send per second, measured in millions of packets per second (e.g., 148.8 Mpps).
14,9 Mpps
Dimensioni tavola MAC
The MAC address is the 'Media Access Control Address'. It is a unique address given to a network interface controller (NIC) in a device. A MAC address table shows the addresses in a table format.
8000 voci
Supporto Jumbo Frames
Indicates whether the device supports Ethernet frames with a payload larger than the standard 1500 bytes to increase data transfer efficiency.
Sì
Frame Jumbo
Indicates the support for Ethernet frames larger than the standard 1500 bytes to increase data transfer efficiency (e.g. 9000 bytes).
9000
Path MTU discovery (Scoperta dell'MTU del percorso)
Indicates whether the network switch supports the automatic detection of the maximum transmission unit (MTU) size along a network path to prevent packet fragmentation.
Sì
Sicurezza
Caratteristiche DHCP
Specifies the supported Dynamic Host Configuration Protocol (DHCP) options for network configuration, such as DHCP Option 66 for boot server addresses.
DHCP Option 82, DHCP snooping
Lista di controllo accesso (ACL)
Indicates whether the device supports the definition of rules to filter network traffic and manage access permissions based on specific criteria.
Sì
Funzione IGMP snooping
Indicates whether the device can optimize multicast traffic by ensuring it is only forwarded to the ports that have requested it.
Sì
Algoritmi di sicurezza supportati
Security algorithms are used to provide authentication
SSH, SSL/TLS
Porta di sicurezza statica
Indicates whether the device supports the manual configuration of specific MAC addresses to secure a network port.
Sì
Supporto SSH/SSL
Indicates whether the device supports secure remote management via SSH or SSL protocols.
Sì
Protezione/Filtro BPDU
Indicates whether the device supports Bridge Protocol Data Unit (BPDU) filtering or protection to prevent network loops and enhance security.
Sì
Funzione IP-MAC-Port binding
Indicates whether the device can link a specific IP address and MAC address to a physical port to enhance network security and prevent unauthorized access.
Sì
Autenticazione
The method used to verify the identity of a user or device before granting network access (e.g., MAC authentication or Captive portal).
Autenticazione basata su MAC, Autenticazione basata su Port
Funzioni Multicast
Supporto multicast
Indicates whether the device supports the simultaneous transmission of a single data stream to multiple recipients.
Sì
Snooping del Multicast listener discovery (MLD)
Indicates whether the device can monitor MLD messages to optimize the delivery of multicast traffic by ensuring it is only forwarded to ports that have requested it.
Y
Protocolli
Caratteristiche IPv4 e IPv6
Specifies the supported Internet Protocol versions and related networking capabilities, such as dual stack operation or Access Control Lists (ACL).
Dual stack IPv4/IPv6
Design
Colore del prodotto
The colour e.g. red
Nero
Indicatori LED
The specific status lights available on the unit to provide visual feedback on its current state or connectivity (e.g., AC input, ACT, or Access).
Sì
Prestazione
Firmware aggiornabile
Indicates whether the internal software of the device can be updated to a newer version to improve performance or add features.
Sì
Gestione energetica
Alimentazione
What is providing power for the product e.g. mains electricity.
AC/DC
Fonte di alimentazione inclusa
There is a power supply with this product.
Sì
Tensione di ingresso AC
The voltage of the AC electricity that is inputted into the product.
100 - 240 V
Frequenza di ingresso AC
The range of alternating current frequencies the device can accept from the power source, measured in hertz (e.g., 45 - 65).
50 - 60 Hz
Corrente d'ingresso
The amount of electrical current drawn by the device during operation, typically measured in amperes (A) or milliamperes (mA).
1.25 A
Voltaggio di ingresso
The voltage (V) which is required to power the product.
48 V
Consumo energetico (max)
The maximum amount of power used by the device.
64,9 W
Power over Ethernet (PoE)
Supporto Power over Ethernet (PoE)
The device supports Power over Ethernet (PoE)
Sì
Quantità porte Power over Ethernet (PoE)
The number of network ports on the switch that can provide electrical power to connected devices via the Ethernet cable.
8
Bilancio energetico totale del PoE
The maximum total amount of power available to be distributed across all PoE-enabled ports, measured in Watts (e.g. 120W).
53 W
Condizioni ambientali
Intervallo temperatura di funzionamento
The minimum and maximum temperatures at which the product can be safely operated.
0 - 40 °C
Intervallo di temperatura
The minimum and maximum temperatures at which the product can be safely stored.
-40 - 70 °C
Range di umidità di funzionamento
The range of relative humidity, expressed as a percentage, within which the device can function correctly without damage or performance loss.
10 - 90%
Umidità
The permissible range of relative humidity, expressed as a percentage, within which the product can be stored without damage.
5 - 90%
Dimensioni e peso
Larghezza
The measurement or extent of something from side to side.
209 mm
Profondità
The distance from the front to the back of something.
126 mm
Altezza
Altezza del prodotto
26 mm
Contenuto dell'imballo
Guida rapida
Instructions
Sì
Dati su imballaggio
Larghezza imballo
The distance from one side of the packaging to the other.
315 mm
Profondità imballo
The distance from the front to the back of the packaging.
240 mm
Altezza imballo
The distance from the top to the bottom of the packaging.
70 mm
Certificati di sicurezza
Certificazione
Specifies the official standards, safety approvals, or regulatory certifications the product has received.
CE, FCC, RoHS
TP-Link T1500G-10PS(TL-SG2210P). Tipo interruttore: Gestito, Livello del commutatore: L2. Tipo di porte RJ-45: Gigabit Ethernet (10/100/1000), Quantità di porte RJ-45: 8. Full duplex. Dimensioni tavola MAC: 8000 voci, Capacità di commutazione: 20 Gbit/s. Standard di rete: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE.... Supporto Power over Ethernet (PoE)
