TPL

TL-SG108PE

Ean : 1210002616942

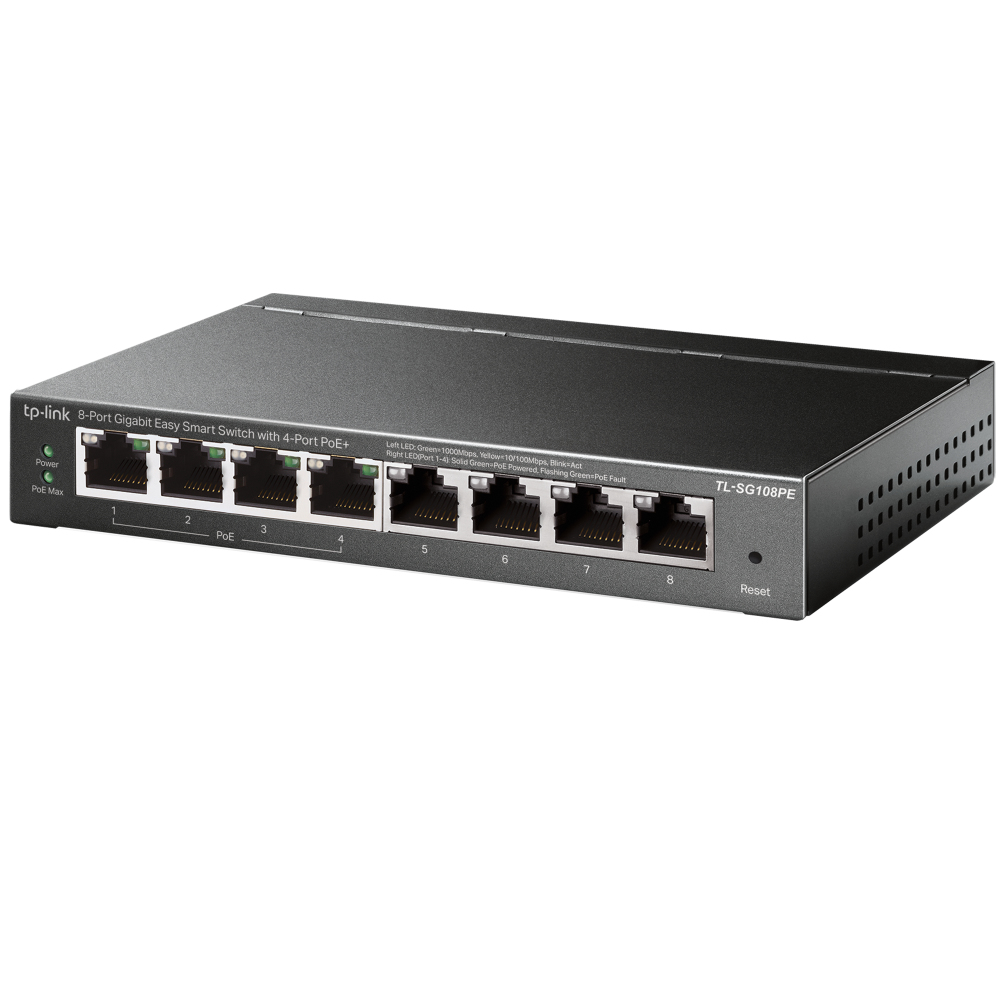

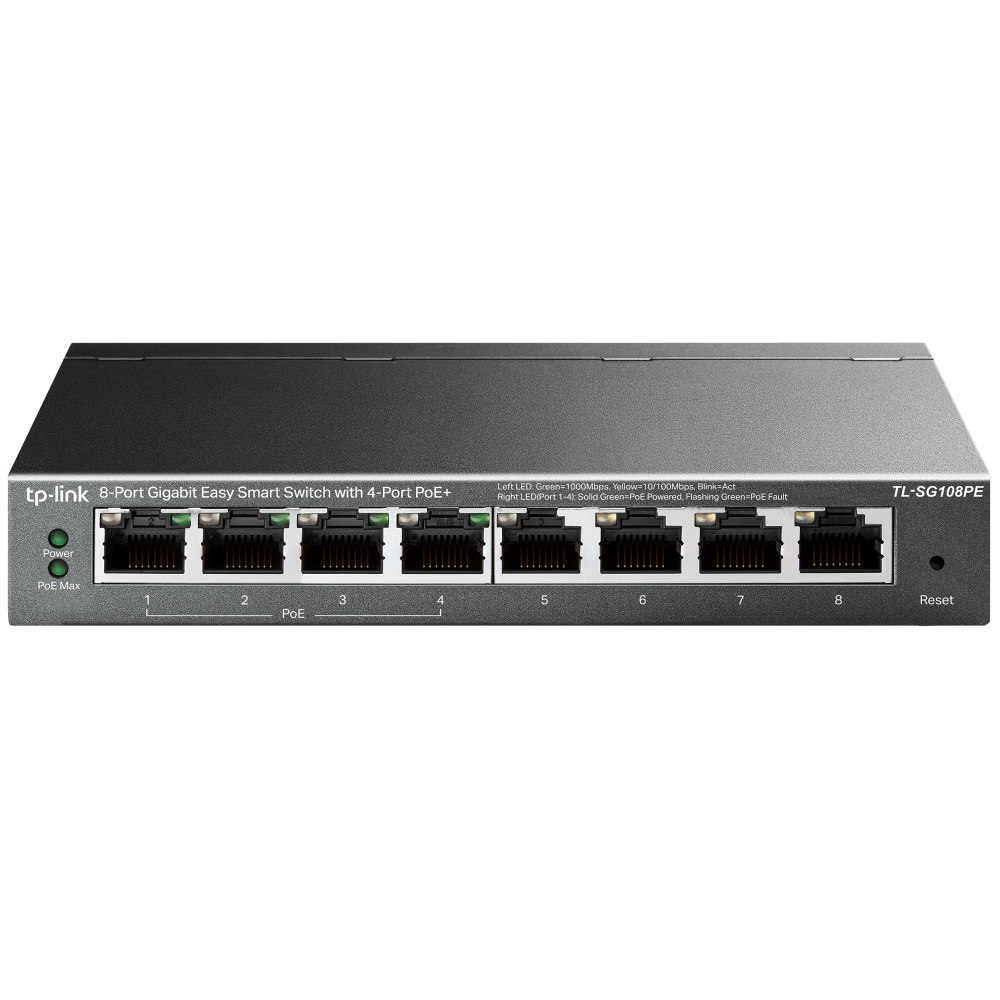

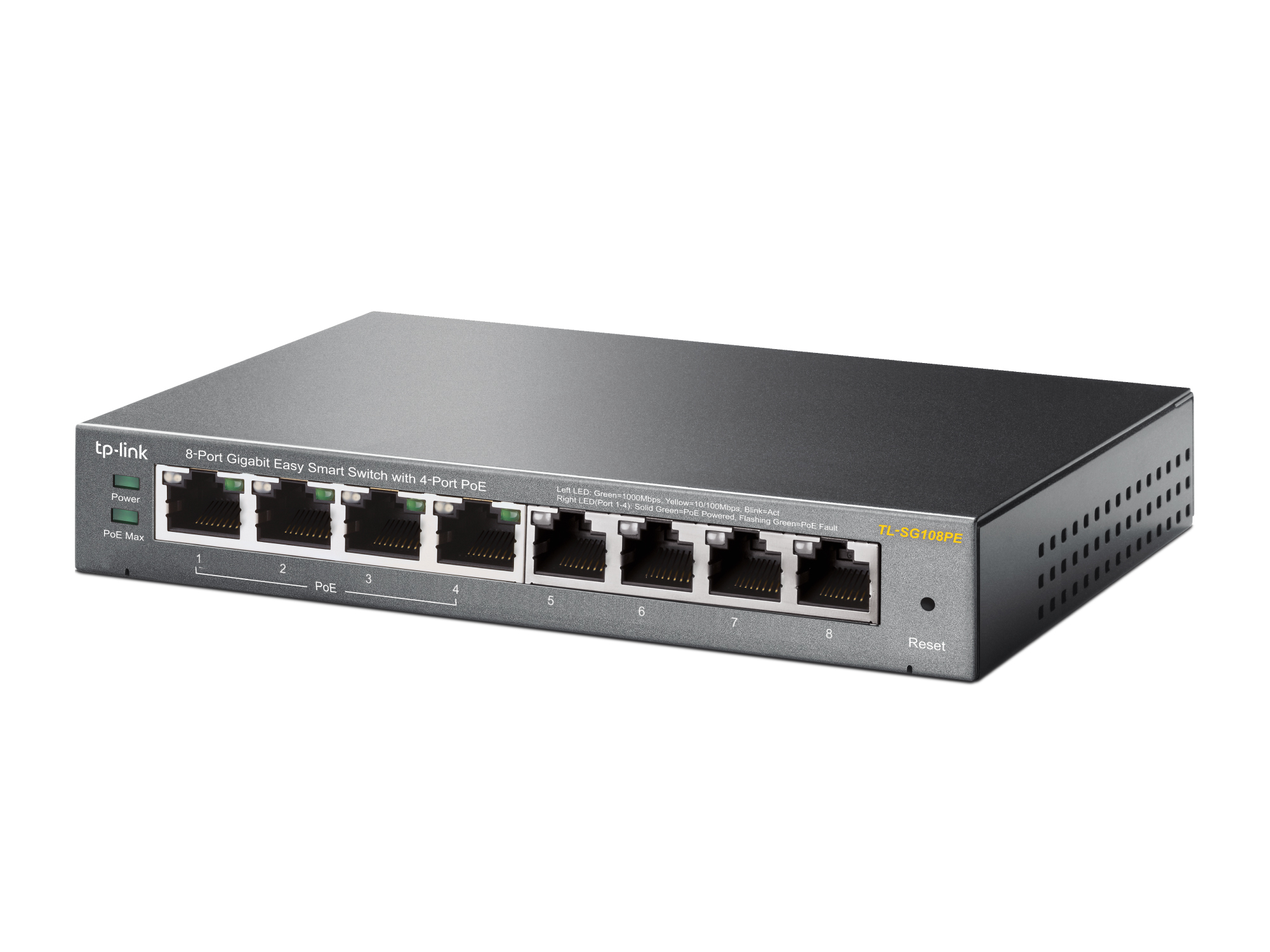

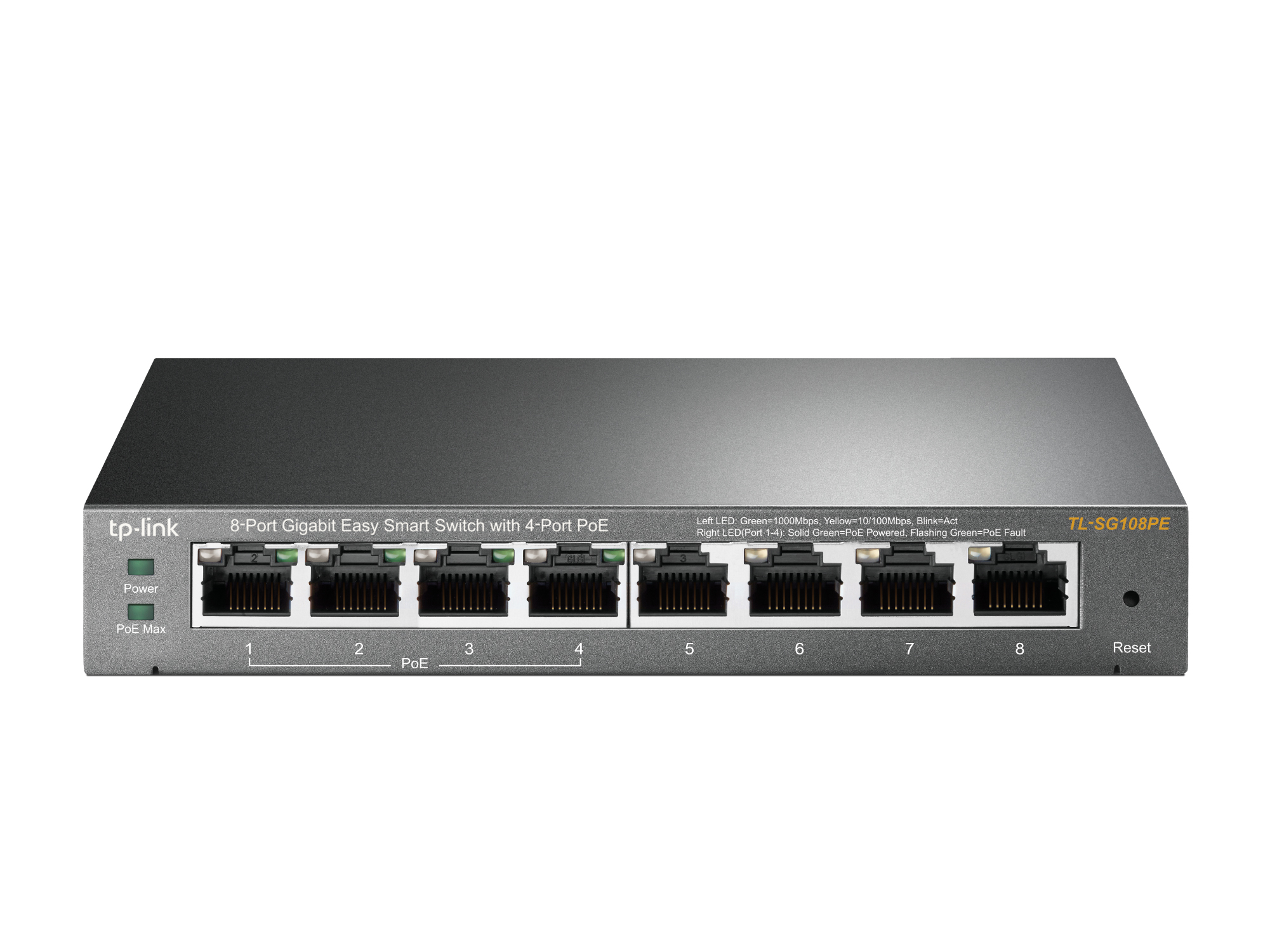

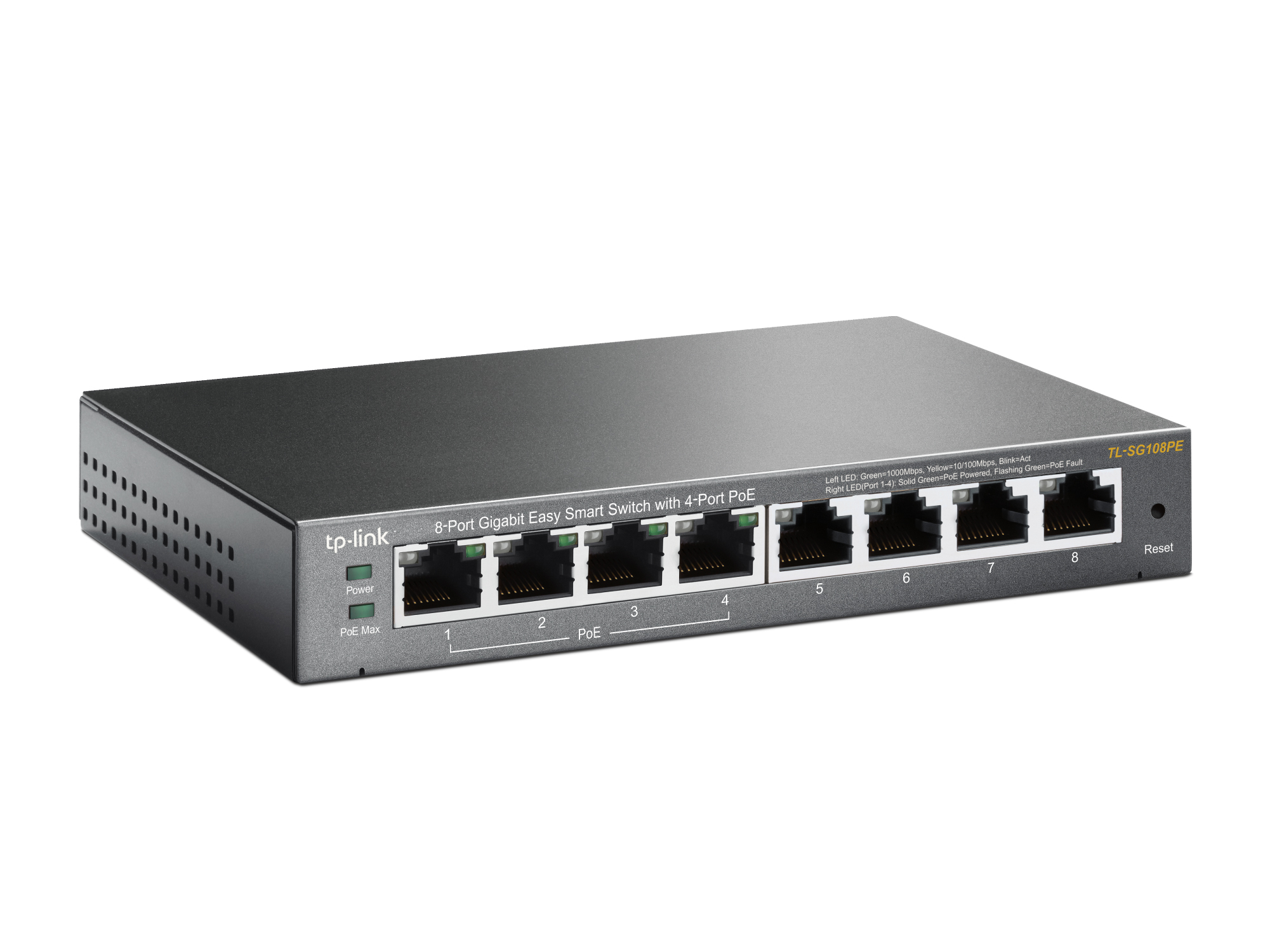

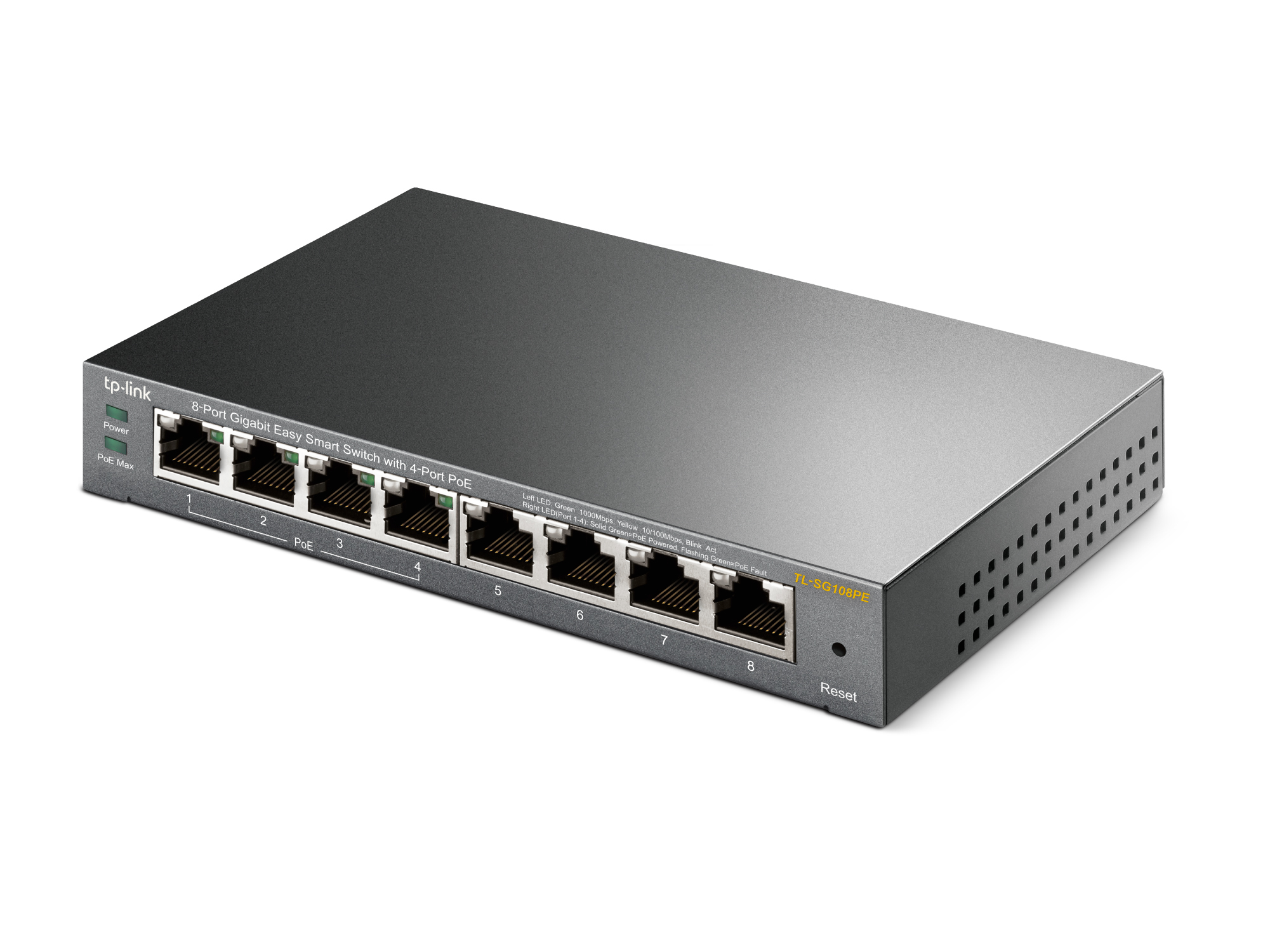

TP-Link TL-SG108PE Gestito L2 Gigabit Ethernet (10/100/1000) Supporto Power over Ethernet (PoE) Nero

* Non viene rilasciata alcuna garanzia su eventuali errori delle descrizioni tecniche aggiuntive né sull'accuratezza delle foto, da intendersi come un mero servizio informativo
Caratteristiche di gestione
Tipo interruttore
What switch device has
Gestito
Livello del commutatore
A network switch is a computer networking device that links networking segments. A switch has different layers
L2
Supporto qualità del servizio (QoS)
Indicates whether the device supports Quality of Service (QoS) to prioritize specific network traffic to ensure performance for critical applications.
Sì
Gestione web-based
Using a website/web application to manage something.
Sì
Connettività
Quantità di porte RJ-45
The number of basic switching RJ-45 Ethernet ports (sockets).
8
Tipo di porte RJ-45
The type/category of basic switching RJ-45 Ethernet ports (sockets).
Gigabit Ethernet (10/100/1000)
Quantità di porte Gigabit Ethernet (rame)
The number of RJ45 copper ports supporting data transfer speeds of up to 1 Gbps (e.g. 24).
8
Collegamento in rete
Standard di rete
The way in which the network is working
IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
Supporto 10G
The product can use Oracle 10G
No
Tipi di cavi supportati
Specifies the types of cabling compatible with the product (e.g. Cat6, Cat6a).
Cat3, Cat4, Cat5, Cat5e, Cat6
Mirroring della porta
Indicates whether the network switch can copy traffic from one or more ports to another port for monitoring and analysis purposes.
Sì
Raggruppamento link
Indicates whether the device supports combining multiple network connections into a single logical link to increase throughput and provide redundancy.
Sì
Controllo Broadcast storm
Indicates whether the device can monitor and limit the amount of broadcast traffic to prevent network congestion and potential crashes.
Sì
Limitazione della velocità
Indicates whether the device can control the maximum amount of network traffic allowed to pass through a specific port or interface to prevent congestion.
Sì
Auto MDI/MDI-X
A Medium Dependent Interface (MDI) describes the interface (both physical and electrical) in a computer network from a physical layer implementation to the physical medium used to carry the transmission. Ethernet over twisted pair also defines a medium dependent interface crossover (MDIX) interface. Auto-MDIX ports on newer network interfaces detect if the connection would require a crossover
Sì
Auto-negoziazione
Indicates whether the device can automatically communicate with a connected network partner to determine the highest common transmission speed and duplex mode.
Sì
VLAN support
A Virtual Local Area Network (VLAN) consists of a group of computers and switches that can be physically distributed over different networks and buildings
Sì
Caratteristiche della LAN virtuale
Specifies the supported methods for segmenting a network into multiple logical broadcast domains on the switch or access point (e.g., MAC address-based VLAN or Management VLAN).
Port-based VLAN
Numero di VLA
The maximum number of virtual local area networks that can be configured on the device to segment network traffic.
32
Trasmissione dati
Capacità di commutazione
The data transfer capacity of the switch per second.
16 Gbit/s
tasso di inoltro
The number of packets the device can process and send per second, measured in millions of packets per second (e.g., 148.8 Mpps).
11,9 Mpps
Dimensioni tavola MAC
The MAC address is the 'Media Access Control Address'. It is a unique address given to a network interface controller (NIC) in a device. A MAC address table shows the addresses in a table format.
4000 voci
Store-and-forward
Indicates whether the device buffers the entire incoming packet to verify its integrity before forwarding it to the destination.
Sì
Supporto Jumbo Frames
Indicates whether the device supports Ethernet frames with a payload larger than the standard 1500 bytes to increase data transfer efficiency.
Sì
Frame Jumbo
Indicates the support for Ethernet frames larger than the standard 1500 bytes to increase data transfer efficiency (e.g. 9000 bytes).
15000
Velocità di trasmissione a pacchetto (1 Gbps)
The number of packets the device can process and forward per second at a speed of 1 Gbps, measured in pps.
11900000 pps
Buffer di memoria di pacchetto
The amount of memory available in the network switch to temporarily store data packets during congestion, typically measured in megabytes (MB) or kilobytes (KB).
1,5 MB
Sicurezza
Funzione IGMP snooping
Indicates whether the device can optimize multicast traffic by ensuring it is only forwarded to the ports that have requested it.
Sì
Protezione contro i loop back
Indicates whether the device has a mechanism to detect and prevent network loops to avoid broadcast storms.
Sì
Design
Colore del prodotto
The colour e.g. red
Nero
Indicatori LED
The specific status lights available on the unit to provide visual feedback on its current state or connectivity (e.g., AC input, ACT, or Access).
Attività, Collegamento, PoE, Potenza, Velocità, status
Gestione energetica
Alimentazione
What is providing power for the product e.g. mains electricity.
dC
Fonte di alimentazione inclusa
There is a power supply with this product.
Sì
Tensione di ingresso AC
The voltage of the AC electricity that is inputted into the product.
220 V
Frequenza di ingresso AC
The range of alternating current frequencies the device can accept from the power source, measured in hertz (e.g., 45 - 65).
50 Hz
Corrente d'ingresso
The amount of electrical current drawn by the device during operation, typically measured in amperes (A) or milliamperes (mA).
1.25 A
Voltaggio di ingresso
The voltage (V) which is required to power the product.
48 V
Consumo energetico (max)
The maximum amount of power used by the device.
65,2 W
Power over Ethernet (PoE)
Supporto Power over Ethernet (PoE)
The device supports Power over Ethernet (PoE)
Sì
Quantità porte Power over Ethernet (PoE)
The number of network ports on the switch that can provide electrical power to connected devices via the Ethernet cable.
4
Quantità di porte Power over Ethernet plus (PoE+)
The number of network ports on the switch that can provide power to connected devices using the PoE+ standard.
4
Potenza Power over Ethernet (PoE) per porta
The maximum amount of electrical power the network switch can deliver to a connected device per port, measured in Watts.
15,4 W
Bilancio energetico totale del PoE
The maximum total amount of power available to be distributed across all PoE-enabled ports, measured in Watts (e.g. 120W).
64 W
Condizioni ambientali
Intervallo temperatura di funzionamento
The minimum and maximum temperatures at which the product can be safely operated.
0 - 40 °C
Intervallo di temperatura
The minimum and maximum temperatures at which the product can be safely stored.
-40 - 70 °C
Range di umidità di funzionamento
The range of relative humidity, expressed as a percentage, within which the device can function correctly without damage or performance loss.
10 - 90%
Umidità
The permissible range of relative humidity, expressed as a percentage, within which the product can be stored without damage.
5 - 95%
Dissipazione del calore
Il calore misurato in unità di misura inglese per ore, generate dal fornitore di energia
256,19 BTU/h
Dimensioni e peso
Larghezza
The measurement or extent of something from side to side.
158 mm
Profondità
The distance from the front to the back of something.
101 mm
Altezza
Altezza del prodotto
25 mm
Contenuto dell'imballo
Cavi inclusi
Specifies the types and quantities of connection cables provided with the product (e.g., 3.5 mm to 3.5 mm or SATA).
AC
Guida utente
Indicates whether a user manual or instructional guide is included with the product.
Sì
Dati su imballaggio
Tipo di imballo
The type of product package e.g. box.
Scatola
Larghezza imballo
The distance from one side of the packaging to the other.
131 mm
Profondità imballo
The distance from the front to the back of the packaging.
196 mm
Altezza imballo
The distance from the top to the bottom of the packaging.
121 mm
Peso dell'imballo
Weight of the packaged product.
860 g
Certificati di sicurezza
Certificazione
Specifies the official standards, safety approvals, or regulatory certifications the product has received.
FCC, CE, RoHS
Dati logistici
Codice del Sistema Armonizzato (SA)
The standardized numerical method of classifying traded products used by customs authorities around the world to identify goods for tariffs and statistics.
85176990
TP-Link TL-SG108PE. Tipo interruttore: Gestito, Livello del commutatore: L2. Tipo di porte RJ-45: Gigabit Ethernet (10/100/1000), Quantità di porte RJ-45: 8. Dimensioni tavola MAC: 4000 voci, Capacità di commutazione: 16 Gbit/s. Standard di rete: IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x. Supporto Power over Ethernet (PoE)
