TPL

LS1005G

Ean : 8885021371481

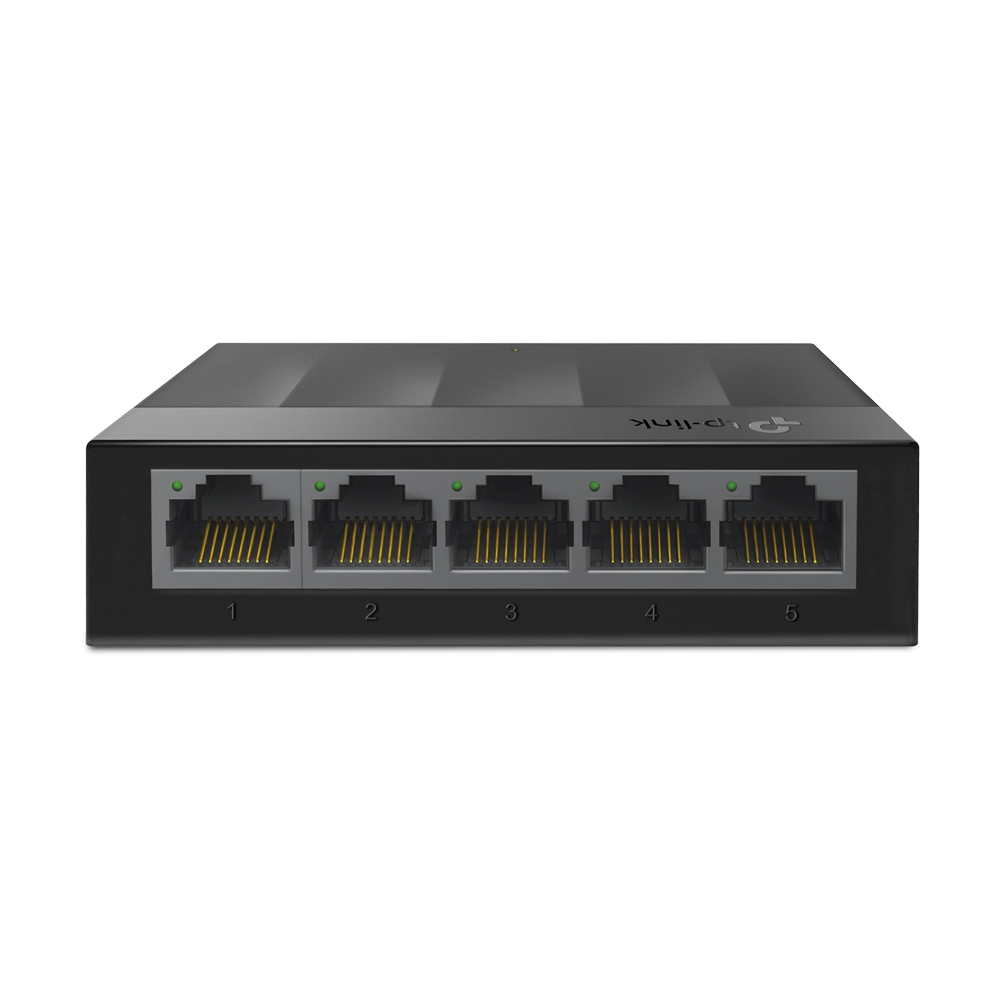

TP-Link LS1005G Non gestito Gigabit Ethernet (10/100/1000) Nero

* Non viene rilasciata alcuna garanzia su eventuali errori delle descrizioni tecniche aggiuntive né sull'accuratezza delle foto, da intendersi come un mero servizio informativo
Caratteristiche di gestione
Tipo interruttore
What switch device has
Non gestito
Connettività
Quantità di porte RJ-45
The number of basic switching RJ-45 Ethernet ports (sockets).
5
Tipo di porte RJ-45
The type/category of basic switching RJ-45 Ethernet ports (sockets).
Gigabit Ethernet (10/100/1000)
Quantità di porte Gigabit Ethernet (rame)
The number of RJ45 copper ports supporting data transfer speeds of up to 1 Gbps (e.g. 24).
5
Collegamento in rete
Standard di rete
The way in which the network is working
IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
Supporto 10G
The product can use Oracle 10G
No
Supporto controllo flusso
Indicates whether the device supports the management of data transmission rates to prevent buffer overflow.
Sì
Auto MDI/MDI-X
A Medium Dependent Interface (MDI) describes the interface (both physical and electrical) in a computer network from a physical layer implementation to the physical medium used to carry the transmission. Ethernet over twisted pair also defines a medium dependent interface crossover (MDIX) interface. Auto-MDIX ports on newer network interfaces detect if the connection would require a crossover
Sì
Auto-negoziazione
Indicates whether the device can automatically communicate with a connected network partner to determine the highest common transmission speed and duplex mode.
Sì
Trasmissione dati
Capacità di commutazione
The data transfer capacity of the switch per second.
10 Gbit/s
tasso di inoltro
The number of packets the device can process and send per second, measured in millions of packets per second (e.g., 148.8 Mpps).
7,4 Mpps
Dimensioni tavola MAC
The MAC address is the 'Media Access Control Address'. It is a unique address given to a network interface controller (NIC) in a device. A MAC address table shows the addresses in a table format.
2000 voci
Store-and-forward
Indicates whether the device buffers the entire incoming packet to verify its integrity before forwarding it to the destination.
Sì
Supporto Jumbo Frames
Indicates whether the device supports Ethernet frames with a payload larger than the standard 1500 bytes to increase data transfer efficiency.
Sì
Frame Jumbo
Indicates the support for Ethernet frames larger than the standard 1500 bytes to increase data transfer efficiency (e.g. 9000 bytes).
16000
Buffer di memoria di pacchetto
The amount of memory available in the network switch to temporarily store data packets during congestion, typically measured in megabytes (MB) or kilobytes (KB).
1,5 MB
Design
Montaggio rack
The type of mounting that can position devices in a shelving system (rack).
No
Colore del prodotto
The colour e.g. red
Nero
Materiale della scocca
What the casing of the product is made of.
Plastica
Indicatori LED
The specific status lights available on the unit to provide visual feedback on its current state or connectivity (e.g., AC input, ACT, or Access).
Attività, Collegamento, Potenza
Montabile a parete
The product can be mounted on (attached to ) a wall.
Sì
Gestione energetica
Alimentazione
What is providing power for the product e.g. mains electricity.
dC
Fonte di alimentazione inclusa
There is a power supply with this product.
Sì
Corrente d'ingresso
The amount of electrical current drawn by the device during operation, typically measured in amperes (A) or milliamperes (mA).
0.6 A
Voltaggio di ingresso
The voltage (V) which is required to power the product.
5 V
Consumo energetico (max)
The maximum amount of power used by the device.
3,7 W
Power over Ethernet (PoE)
Supporto Power over Ethernet (PoE)
The device supports Power over Ethernet (PoE)
No
Condizioni ambientali
Intervallo temperatura di funzionamento
The minimum and maximum temperatures at which the product can be safely operated.
0 - 40 °C
Intervallo di temperatura
The minimum and maximum temperatures at which the product can be safely stored.
-40 - 60 °C
Range di umidità di funzionamento
The range of relative humidity, expressed as a percentage, within which the device can function correctly without damage or performance loss.
10 - 90%
Umidità
The permissible range of relative humidity, expressed as a percentage, within which the product can be stored without damage.
5 - 90%
Dissipazione del calore
Il calore misurato in unità di misura inglese per ore, generate dal fornitore di energia
12,617 BTU/h
Dimensioni e peso
Larghezza
The measurement or extent of something from side to side.
90 mm
Profondità
The distance from the front to the back of something.
72 mm
Altezza
Altezza del prodotto
23 mm
Contenuto dell'imballo
Guida rapida
Instructions
Sì
Dati su imballaggio
Tipo di imballo
The type of product package e.g. box.
Scatola
Larghezza imballo
The distance from one side of the packaging to the other.
91 mm
Profondità imballo
The distance from the front to the back of the packaging.
94 mm
Altezza imballo
The distance from the top to the bottom of the packaging.
84 mm
Peso dell'imballo
Weight of the packaged product.
180 g
Certificati di sicurezza
Certificazione
Specifies the official standards, safety approvals, or regulatory certifications the product has received.
CE, FCC, RoHS
Dati logistici
Codice del Sistema Armonizzato (SA)
The standardized numerical method of classifying traded products used by customs authorities around the world to identify goods for tariffs and statistics.
85176990
TP-Link LS1005G. Tipo interruttore: Non gestito. Tipo di porte RJ-45: Gigabit Ethernet (10/100/1000), Quantità di porte RJ-45: 5. Dimensioni tavola MAC: 2000 voci, Capacità di commutazione: 10 Gbit/s. Standard di rete: IEEE 802.3i, IEEE 802.3u, IEEE 802.3x. Montabile a parete
