MSI

MPGX870ECARBONWIFI

Ean : 4711377253536

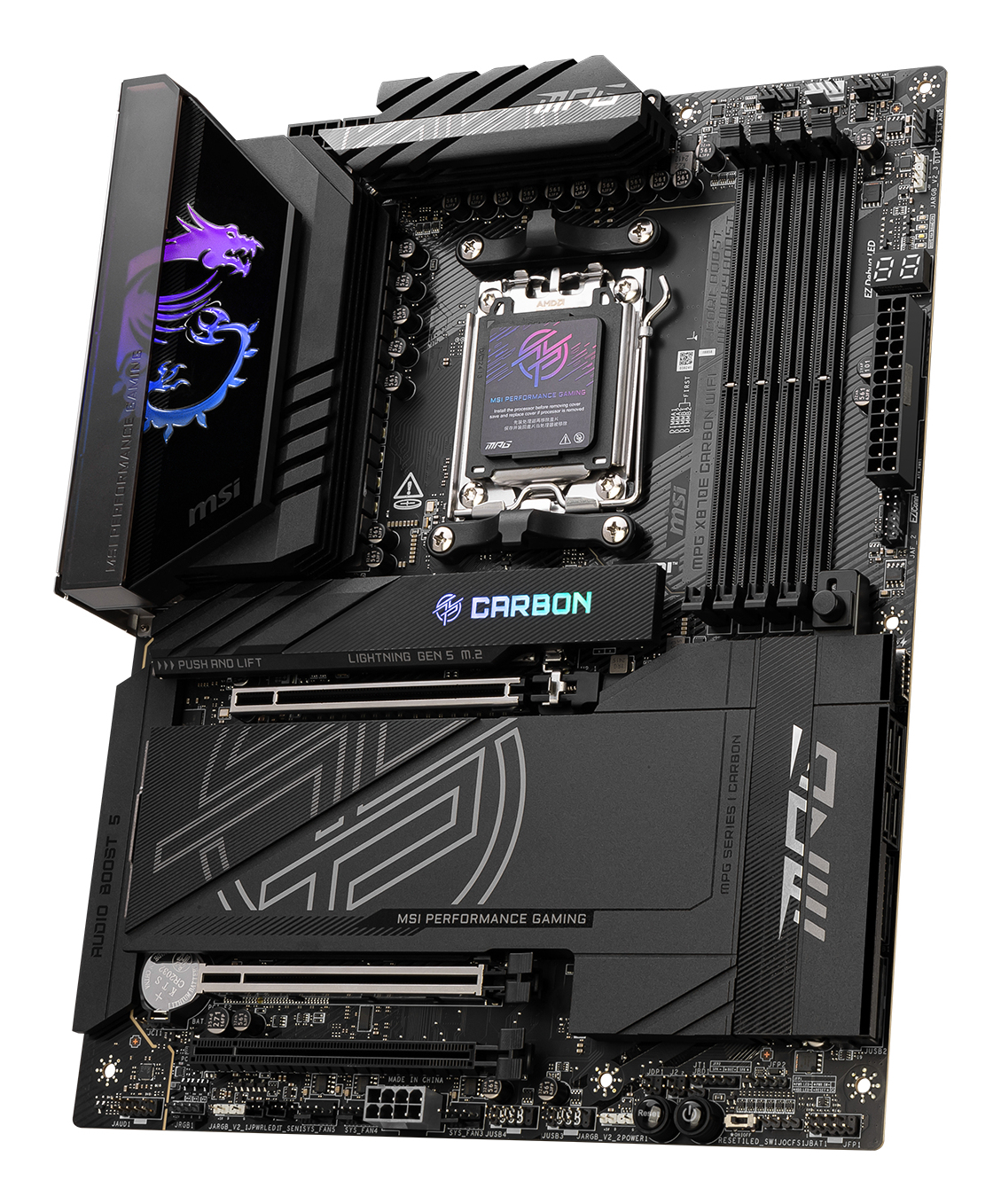

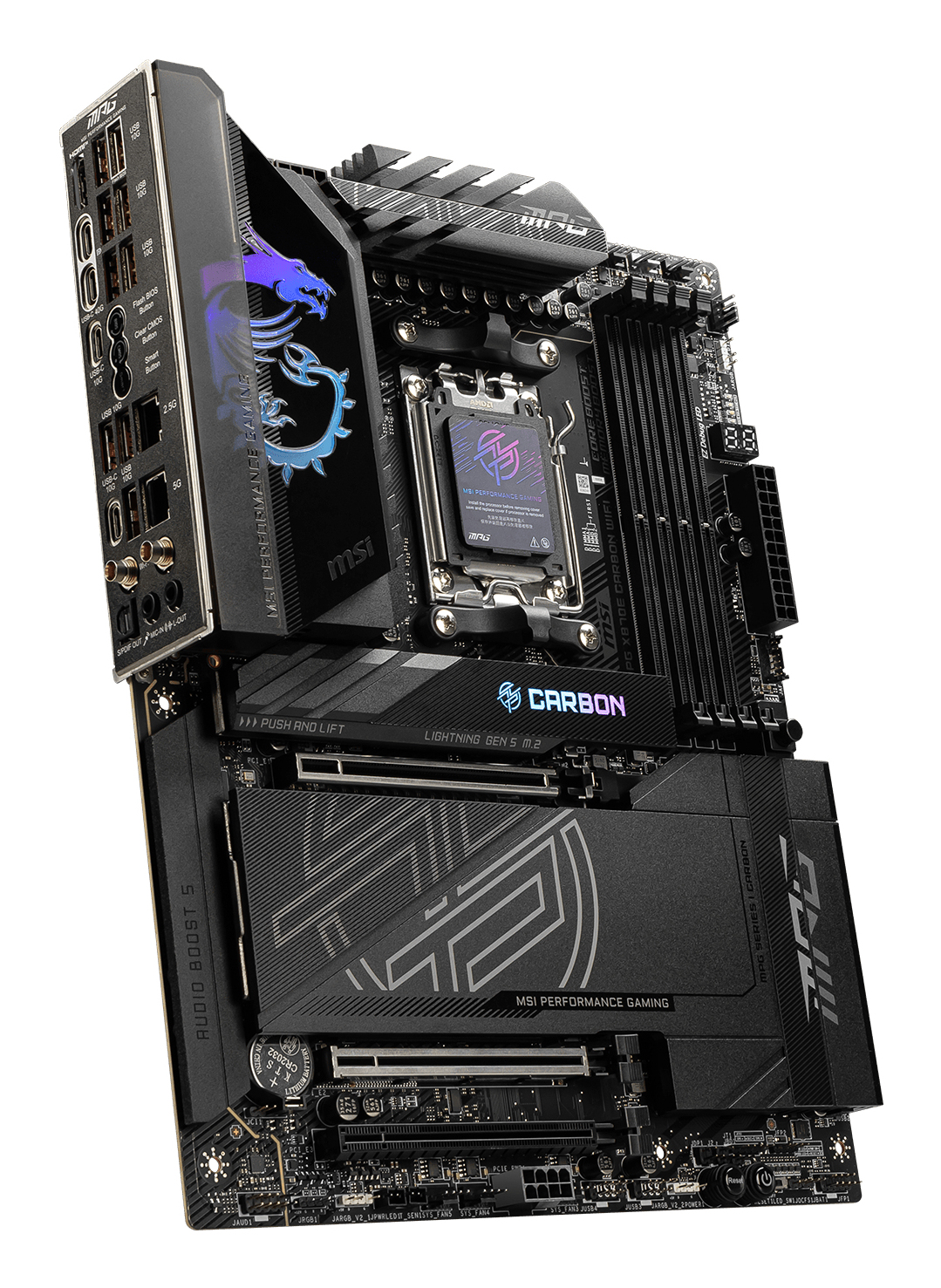

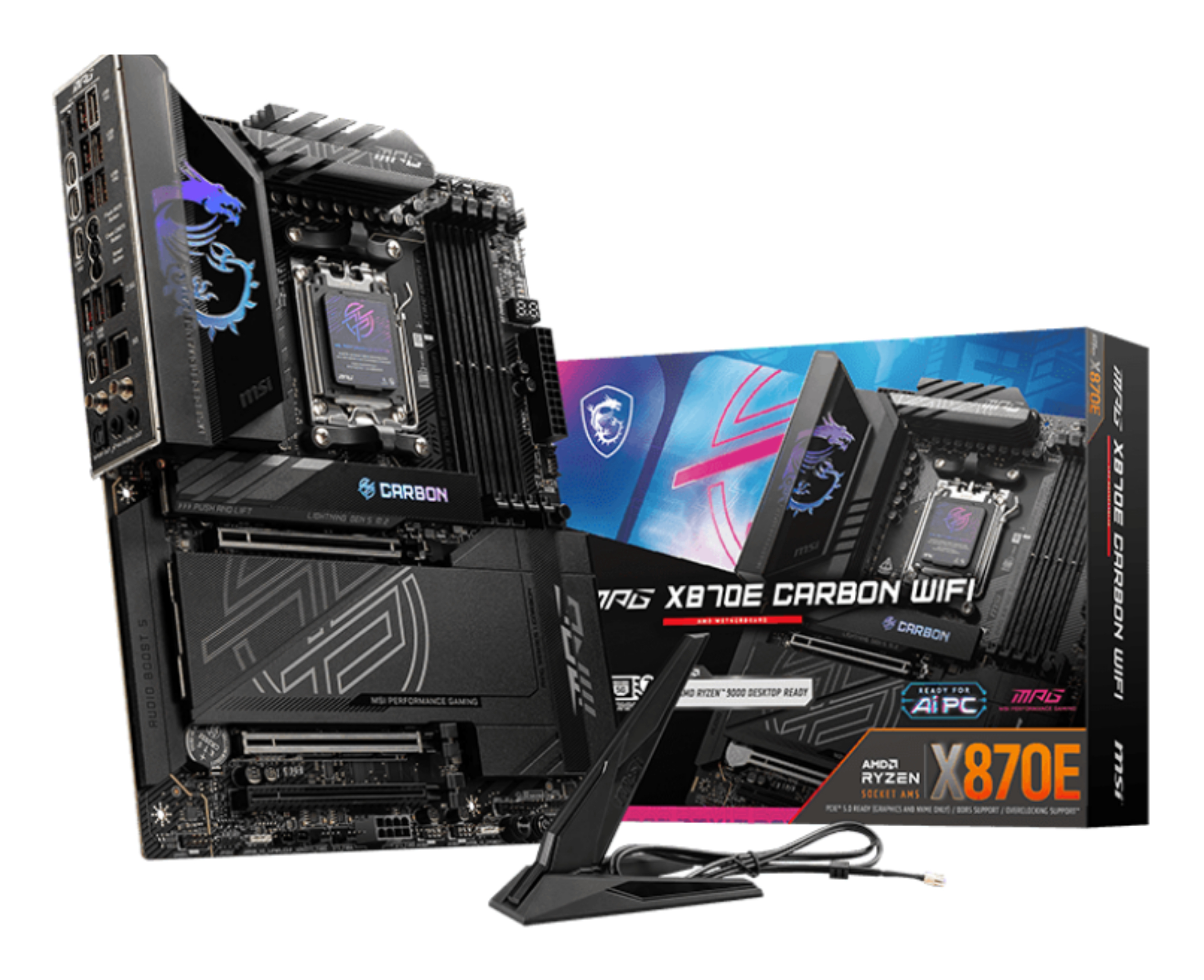

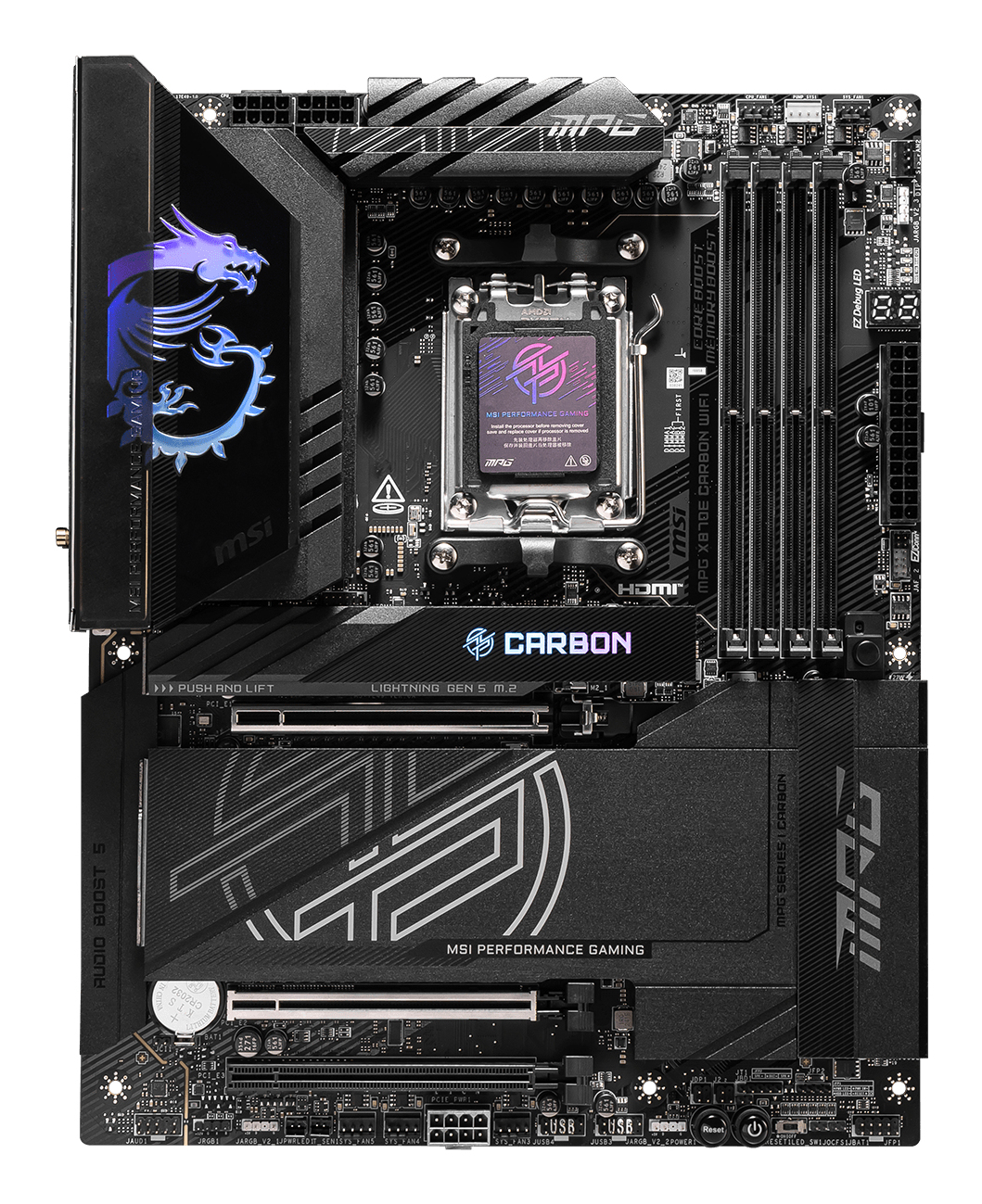

MSI MPG X870E CARBON WIFI scheda madre AMD X870E Socket AM5 ATX

* Non viene rilasciata alcuna garanzia su eventuali errori delle descrizioni tecniche aggiuntive né sull'accuratezza delle foto, da intendersi come un mero servizio informativo
Processore
Produttore processore
The manufacturer that produced the processor.
AMD
Presa per processore
Mechanical component(s) that provides mechanical and electrical connections between a microprocessor and a printed circuit board (PCB). This allows the processor to be replaced without soldering.
Socket AM5
Processori compatibili
A processor which is compatible with this device
AMD Ryzen™ 7
Socket Processori supportati
The sockets (plugs) for processors that are supported (can be used) by the device.
Socket AM5
Memoria
Tipi di memoria supportati
Types of memory which can be used with the product.
DDR5-SDRAM
Numero di slot di memoria
The total number of available sockets for installing memory modules.
4
tipo di slot di memoria
A memory slot
DIMM
Canali di memoria
The number of communication paths between the memory controller and the RAM, which affects data transfer bandwidth (e.g., Dual-channel).
Dual-channel
Compatibilità ECC
Specifies whether the product supports Error Correction Code (ECC) memory, which detects and fixes data corruption (e.g., ECC, non-ECC).
Non-ECC
RAM massima supportata
The maximum internal memory which is available in the product.
256 GB
Controller di archiviazione
Tipi di unità di archiviazione supportate
The type of storage drives the device is compatible with.
HDD & SSD
Interfacce dell'unità di archiviazione supportate
The physical and logical connection standards supported for connecting storage drives to the system (e.g., M.2 or SATA).
M.2, SATA III
numero di dispositivi di archivio supportati
How many storage drives can be fit into the product at once.
8
Supporto RAID
The device uses RAID
Sì
Grafica
Scheda grafica integrata
Graphics hardware which is built into the motherboard or CPU
No
I/O interni
Connettori USB 2.0
The end of a cable with a USB 2.0 connector. USB 2.0 was released in April 2000 (now called "Hi-Speed")
4
Numero di connettori SATA III
Serial ATA (Advanced Technology Attachment) (SATA) is a computer bus interface that connects host bus adapters to mass storage devices such as hard disk drives and optical drives. SATA III (revision 3.x) interface
4
Numero totale di connettori SATA
The total count of Serial ATA interfaces available for connecting storage devices or optical drives.
4
Connettore ATX (24-PIN)
Indicates whether the product features a 24-pin ATX power connector for main power supply connectivity.
Sì
Connettore ventola CPU
Indicates whether the product has a dedicated header for connecting a CPU cooling fan.
Sì
Connettore di potenza EPS (8-Pin)
Indicates whether the product features an 8-pin EPS connector to provide dedicated power to the CPU.
Sì

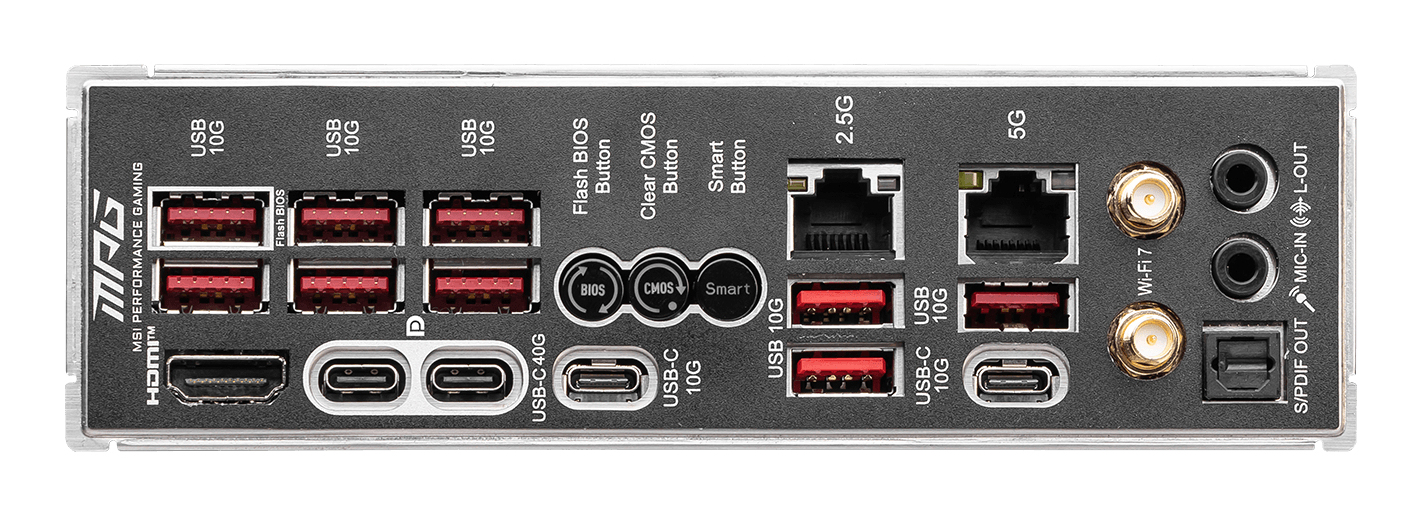

Pannello posteriore porte I/O
Quantità di porte USB 3.2 Gen 1 (3.1 Gen 1) di tipo A
The total number of available USB 3.2 Gen 1 (formerly 3.1 Gen 1) Type-A connection ports on the device.
6
Quantità di porte USB 3.2 Gen 1 (3.1 Gen 1) di tipo C
Number of USB 3.0 (3.1 Gen 1) ports with Type-C connector. USB 3.0 (3.1 Gen 1) is USB interface version which supports transfer rate up to 5 Gbit/s (SuperSpeed). USB Type-C connector has symmetrical design architecture and compatible with Thunderbolt 3 interface.
2
Quantità di porte USB 3.2 Gen 2 (3.1 Gen 2) di tipo A
The total number of USB Type-A ports that support the 3.2 Gen 2 (formerly 3.1 Gen 2) standard for high-speed data transfer.
2
Quantità di porte USB4 Gen 2x2
The number of USB4 Gen 2x2 ports available on the device.
2
Quantità porte Ethernet LAN (RJ-45)
Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.
1
Quantità porte HDMI
The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor
1
Quantità DisplayPorts
Number of DisplayPorts. A DisplayPort is a digital display interface developed by the Video Electronics Standards Association (VESA). The interface is primarily used to connect a video source to a display device such as a computer monitor
2
Microfono, spinotto d'ingresso
The socket where a microphone is connected to the device.
Sì
Porta uscita S/PDIF
S/PDIF (Sony/Philips Digital Interconnect Format) is a digital audio interconnect used in consumer audio equipment over relatively short distances. The signal is transmitted over either a coaxial cable with RCA connectors or a fibre optic cable with TOSLINK connectors.
Sì
Collegamento in rete
Collegamento ethernet LAN
An Ethernet LAN (Local Area Network) interface is present
Sì
Tipo di interfaccia Ethernet
The maximum data transfer rate supported by the network port, expressed in gigabits per second (e.g., 10 Gigabit Ethernet).
2.5 Gigabit Ethernet
Wi-Fi
Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves.
Sì
Wi-Fi standard
Connection of this device is done via Wi-Fi in a high standard.
Wi-Fi 7 (802.11be)
Standard Wi-Fi
The type of wireless local area network (LAN). It can be ad-hoc
Wi-Fi 7 (802.11be)
Bluetooth
Bluetooth è una tecnologia radio basata su basso consumo di energia sviluppata per sostituire i cavi attualmente usati per collegare dispositivi elettronici come computer, stampanti e una larga gamma di dispositivi manuali inclusi i telefoni cellulari. Grazie alla connessione di onde radio, un dispositivo Bluetooth è in grado di stabilire una connessione costante verso qualsiasi browser. Questo risparmia all' utente la fatica, ad esempio, di accedere ad internet per controllare le emails o controllare aggiornamenti
Sì
Versione Bluetooth
The type of bluetooth technology in the product e.g. Bluetooth Smart (v4.0).
5.4
Caratteristiche
Chipset scheda madre
The chipset connects the microprocessor to the rest of the motherboard.
AMD X870E
Sistema audio
An audio output channel is an electric circuit which acts as a path for a signal produced by a device. A device may have several audio output channels.
7.1 canali
Colore del prodotto
The colour e.g. red
Nero
Monitoraggio dello stato di salute del PC
Indicates which system components or metrics can be tracked for status and performance, such as temperature, voltage, or fan speed.
CPU, Ventilatore, Temperatura, Tension
Componente per
What this product is used as a part of (component for).
PC
Fattore di forma scheda madre
Design of the motherboard (ATX
ATX
Famiglia di chipset per scheda madre
The category of motherboard chipset e.g. Intel
AMD
Slot espansione
Slot PCI Express x16 (Gen 5.x)
The number of available PCI Express x16 slots supporting the 5.0 generation standard for high-speed component connectivity.
1
Numero di slot di M.2 (M)
The total number of available M.2 M-key slots for installing high-speed storage devices or expansion cards.
4
MSI MPG X870E CARBON WIFI. Produttore processore: AMD, Presa per processore: Socket AM5, Processori compatibili: AMD Ryzen™ 7. Tipi di memoria supportati: DDR5-SDRAM, RAM massima supportata: 256 GB, tipo di slot di memoria: DIMM. Interfacce dell'unità di archiviazione supportate: M.2, SATA III, Tipi di unità di archiviazione supportate: HDD & SSD. Tipo di interfaccia Ethernet: 2.5 Gigabit Ethernet, Wi-Fi standard: Wi-Fi 7 (802.11be), Standard Wi-Fi: Wi-Fi 7 (802.11be). Componente per: PC, Fattore di forma scheda madre: ATX, Famiglia di chipset per scheda madre: AMD
