TPL

SG2008P

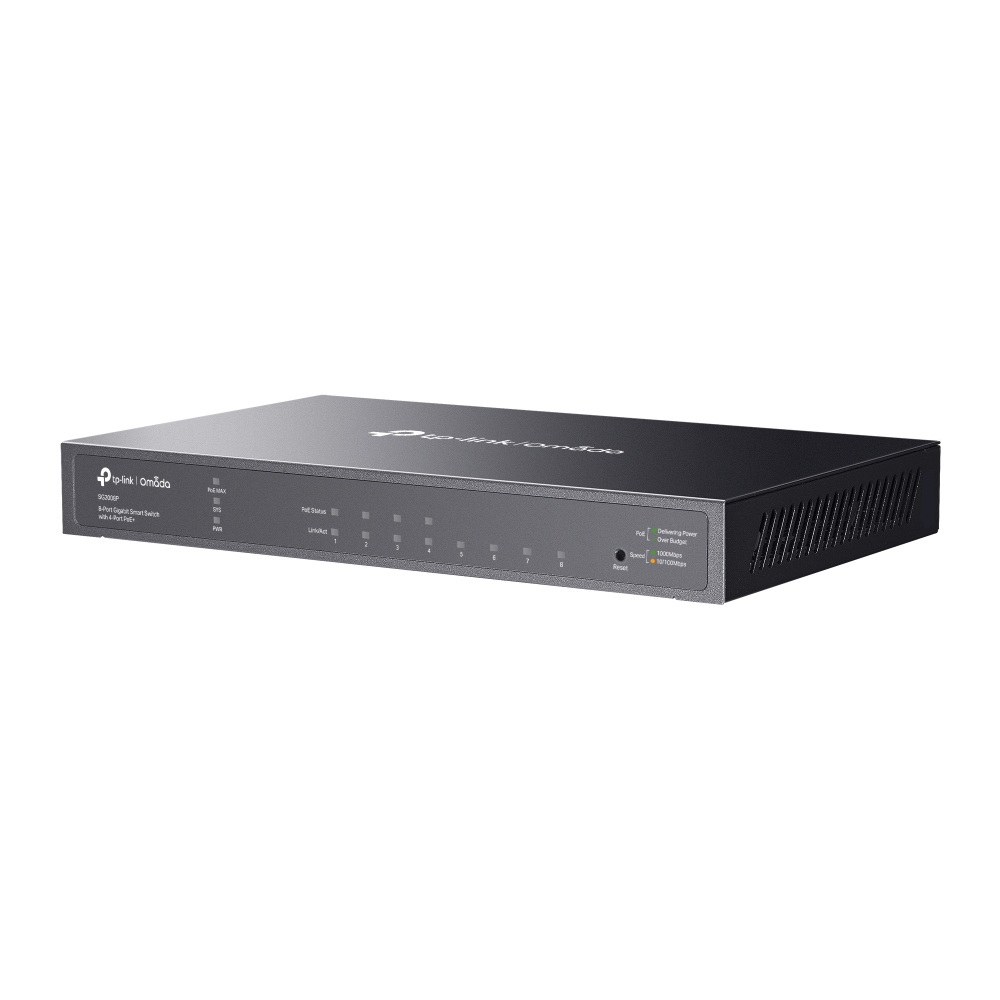

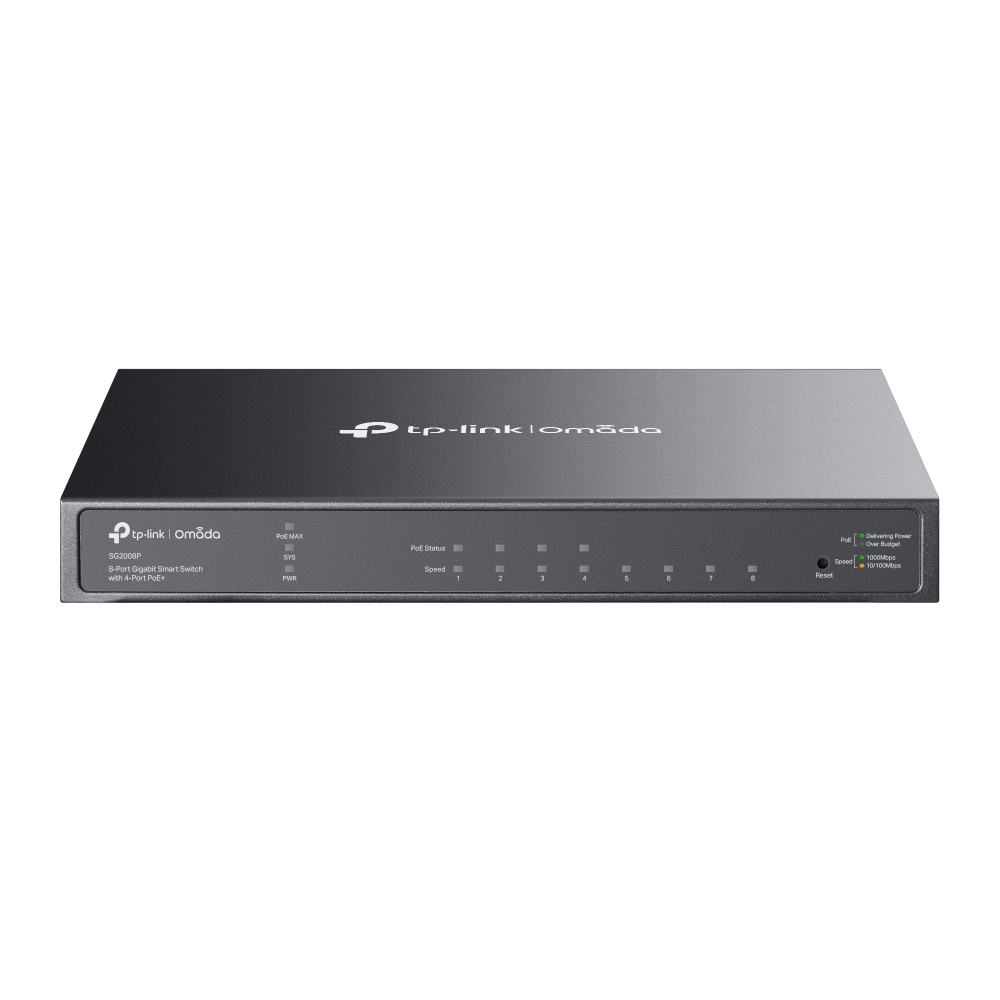

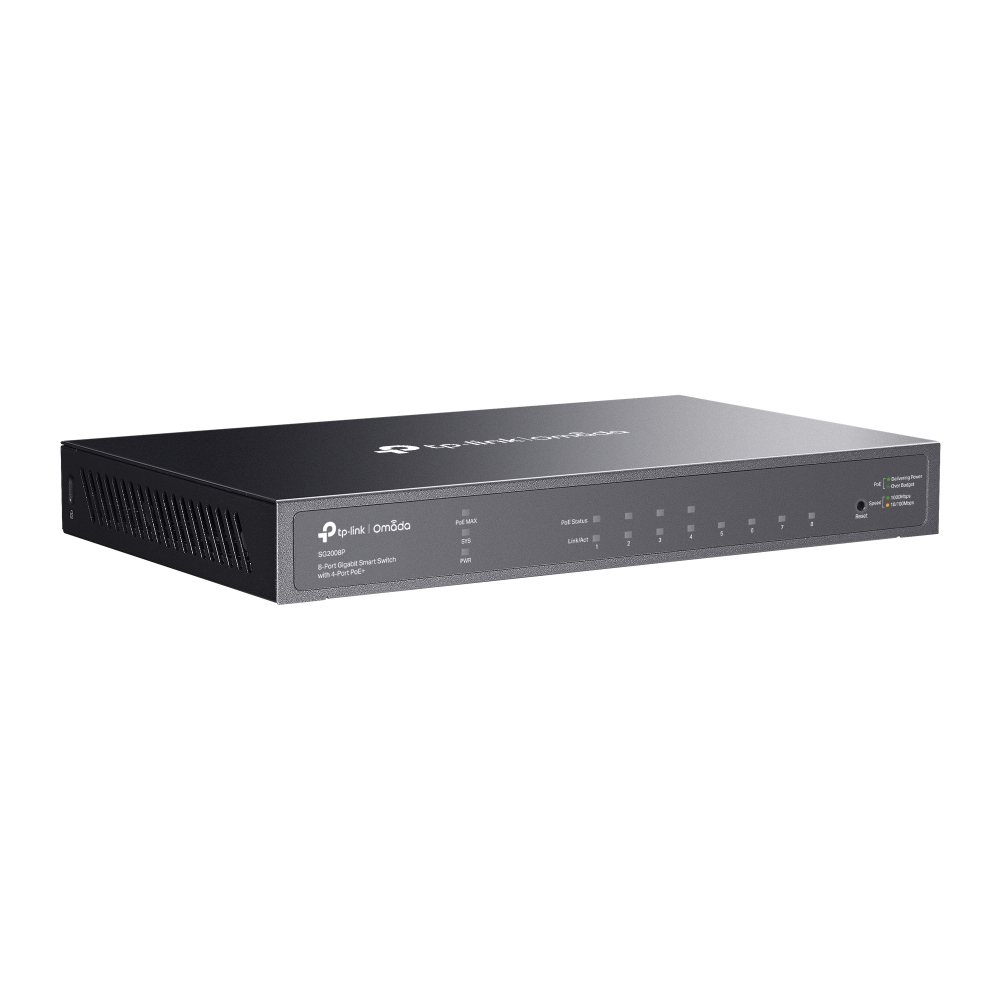

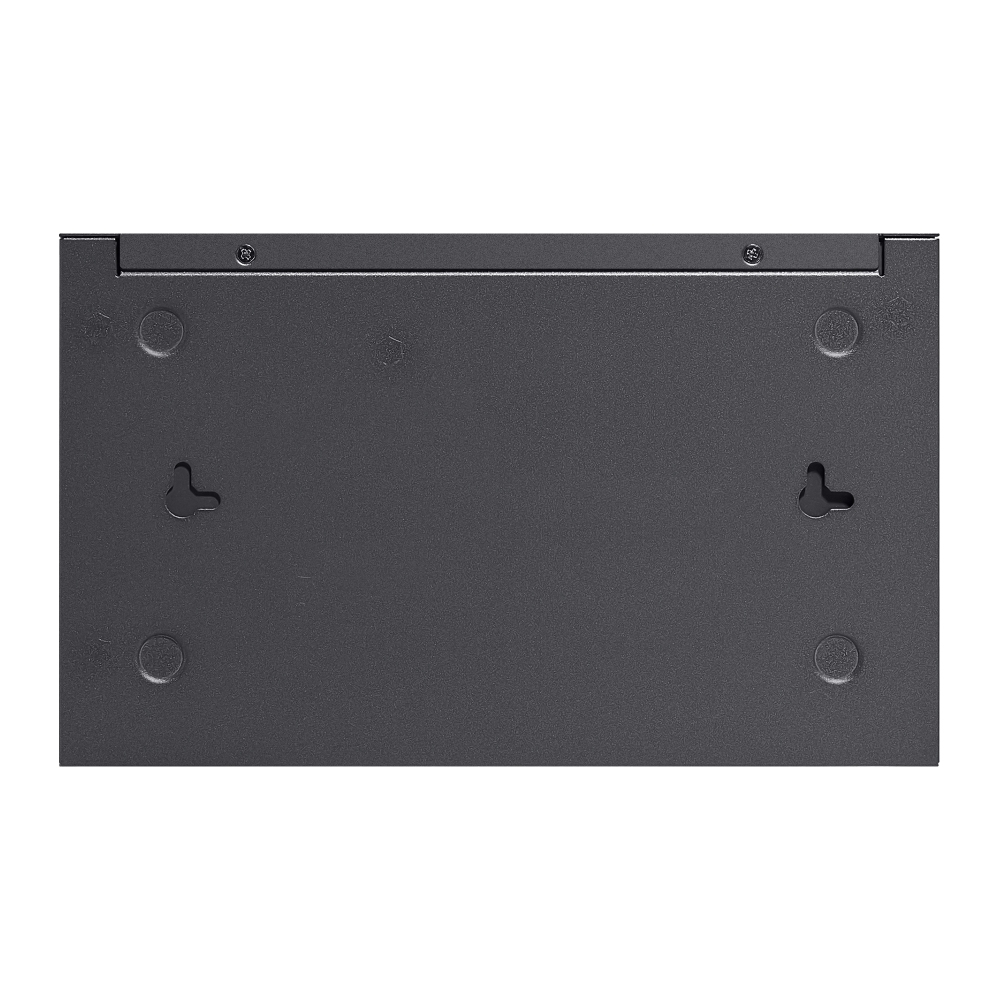

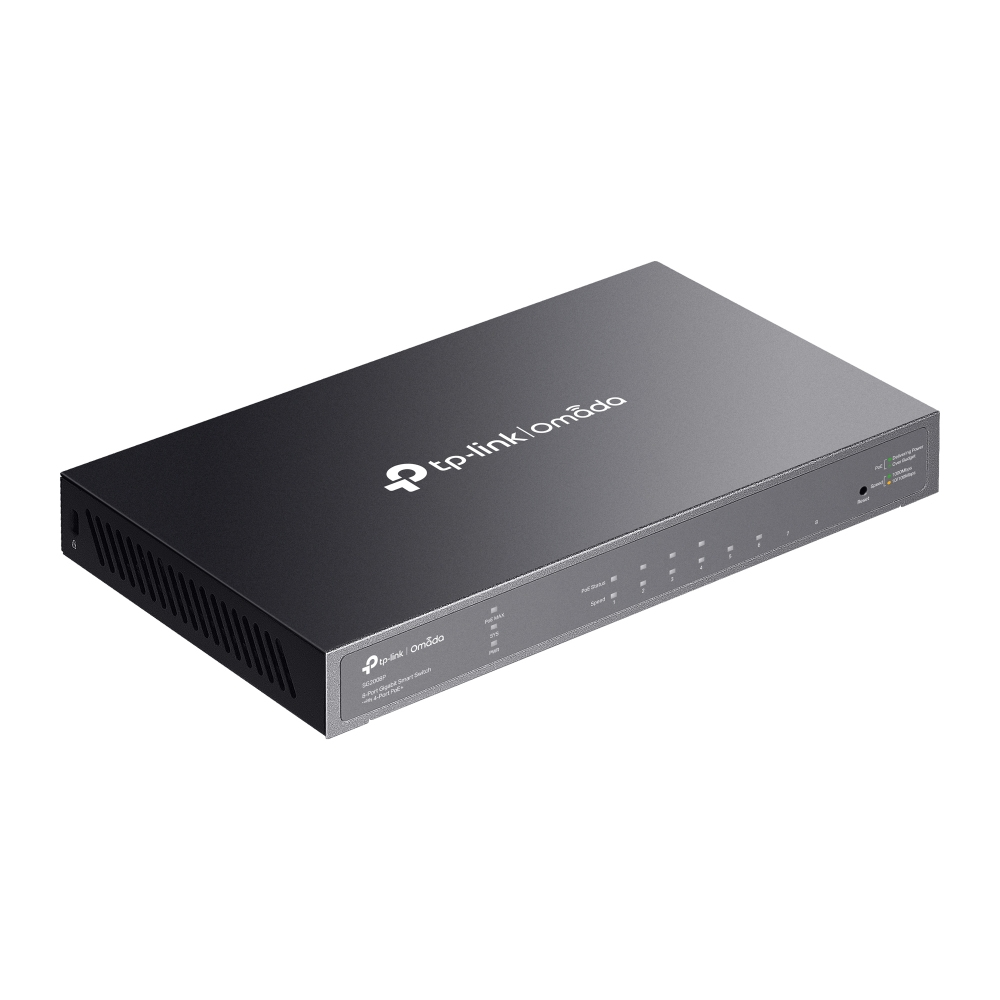

TP-Link Omada TL-SG2008P Gestito L2/L2+ Gigabit Ethernet (10/100/1000) Supporto Power over Ethernet (PoE) Nero

* Non viene rilasciata alcuna garanzia su eventuali errori delle descrizioni tecniche aggiuntive né sull'accuratezza delle foto, da intendersi come un mero servizio informativo
Caratteristiche di gestione
Tipo interruttore
What switch device has
Gestito
Livello del commutatore
A network switch is a computer networking device that links networking segments. A switch has different layers
L2/L2+
Supporto qualità del servizio (QoS)
Indicates whether the device supports Quality of Service (QoS) to prioritize specific network traffic to ensure performance for critical applications.
Sì
Gestione web-based
Using a website/web application to manage something.
Sì
Ispezione ARP
Indicates whether the device supports Dynamic ARP Inspection to prevent ARP spoofing attacks by validating Address Resolution Protocol packets.
Sì
Registro evento di sistema
Indicates whether the device maintains a record of internal system events and status changes for diagnostic purposes.
Sì
Supporto MIB
Indicates whether the device supports the Management Information Base for network management and monitoring via protocols such as SNMP.
MIB II (RFC1213) Bridge MIB (RFC1493) P/Q-Bridge MIB (RFC2674) Radius Accounting Client MIB (RFC2620) Radius Authentication Client MIB (RFC2618) Remote Ping, Traceroute MIB (RFC2925) Support TP-Link private MIBs RMON MIB(RFC1757, rmon 1,2,3,9)
Connettività
Quantità di porte RJ-45
The number of basic switching RJ-45 Ethernet ports (sockets).
8
Tipo di porte RJ-45
The type/category of basic switching RJ-45 Ethernet ports (sockets).
Gigabit Ethernet (10/100/1000)
Collegamento in rete
Standard di rete
The way in which the network is working
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
Supporto 10G
The product can use Oracle 10G
No
Mirroring della porta
Indicates whether the network switch can copy traffic from one or more ports to another port for monitoring and analysis purposes.
Sì
Supporto controllo flusso
Indicates whether the device supports the management of data transmission rates to prevent buffer overflow.
Sì
Raggruppamento link
Indicates whether the device supports combining multiple network connections into a single logical link to increase throughput and provide redundancy.
Sì
Controllo Broadcast storm
Indicates whether the device can monitor and limit the amount of broadcast traffic to prevent network congestion and potential crashes.
Sì
Limitazione della velocità
Indicates whether the device can control the maximum amount of network traffic allowed to pass through a specific port or interface to prevent congestion.
Sì
Auto MDI/MDI-X
A Medium Dependent Interface (MDI) describes the interface (both physical and electrical) in a computer network from a physical layer implementation to the physical medium used to carry the transmission. Ethernet over twisted pair also defines a medium dependent interface crossover (MDIX) interface. Auto-MDIX ports on newer network interfaces detect if the connection would require a crossover
Sì
Apertura albero di protocollo
Indicates whether the device supports a network protocol that prevents loops in a bridge network topology.
Sì
Auto-negoziazione
Indicates whether the device can automatically communicate with a connected network partner to determine the highest common transmission speed and duplex mode.
Sì
VLAN support
A Virtual Local Area Network (VLAN) consists of a group of computers and switches that can be physically distributed over different networks and buildings
Sì
Numero di VLA
The maximum number of virtual local area networks that can be configured on the device to segment network traffic.
4094
Trasmissione dati
Capacità di commutazione
The data transfer capacity of the switch per second.
16 Gbit/s
tasso di inoltro
The number of packets the device can process and send per second, measured in millions of packets per second (e.g., 148.8 Mpps).
11,9 Mpps
Dimensioni tavola MAC
The MAC address is the 'Media Access Control Address'. It is a unique address given to a network interface controller (NIC) in a device. A MAC address table shows the addresses in a table format.
8000 voci
Numero di code
The total number of hardware buffers or priority queues available for managing data traffic flow.
8
Supporto Jumbo Frames
Indicates whether the device supports Ethernet frames with a payload larger than the standard 1500 bytes to increase data transfer efficiency.
Sì
Frame Jumbo
Indicates the support for Ethernet frames larger than the standard 1500 bytes to increase data transfer efficiency (e.g. 9000 bytes).
9000
Buffer di memoria di pacchetto
The amount of memory available in the network switch to temporarily store data packets during congestion, typically measured in megabytes (MB) or kilobytes (KB).
4,1 MB
Sicurezza
Caratteristiche DHCP
Specifies the supported Dynamic Host Configuration Protocol (DHCP) options for network configuration, such as DHCP Option 66 for boot server addresses.
DHCP client, DHCP relay, DHCP snooping, DHCPv6 server, DHCPv6 snooping
Funzione IGMP snooping
Indicates whether the device can optimize multicast traffic by ensuring it is only forwarded to the ports that have requested it.
Sì
Algoritmi di sicurezza supportati
Security algorithms are used to provide authentication
802.1x RADIUS
Filtri MAC address
Security access control method whereby the 48-bit address assigned to each network card is used to determine access to the network. MAC addresses are uniquely assigned to each card
Sì
Autenticazione
The method used to verify the identity of a user or device before granting network access (e.g., MAC authentication or Captive portal).
Autenticazione basata su MAC, Autenticazione basata sul web
tipo di autenticazione
Authentification means proving identity to gain access to sometheng. There are various types of authentification exist e.g. access card
RADIUS
Funzioni Multicast
Supporto multicast
Indicates whether the device supports the simultaneous transmission of a single data stream to multiple recipients.
Sì
Protocolli
Protocolli di gestione
The communication standards used for the remote administration and monitoring of the device (e.g. LoRaWAN).
SNMPv1/v2c/v3
Caratteristiche IPv4 e IPv6
Specifies the supported Internet Protocol versions and related networking capabilities, such as dual stack operation or Access Control Lists (ACL).
IPv6 Telnet, IPv6 ping, IPv6 tracert
Design
Montaggio rack
The type of mounting that can position devices in a shelving system (rack).
Sì
Colore del prodotto
The colour e.g. red
Nero
Indicatori LED
The specific status lights available on the unit to provide visual feedback on its current state or connectivity (e.g., AC input, ACT, or Access).
Sì
Prestazione
Fanless
Indicates whether the device operates without an internal fan for cooling, resulting in silent operation.
Sì
Gestione energetica
Fonte di alimentazione inclusa
There is a power supply with this product.
Sì
Consumo energetico (max)
The maximum amount of power used by the device.
77,3 W
Power over Ethernet (PoE)
Supporto Power over Ethernet (PoE)
The device supports Power over Ethernet (PoE)
Sì
Quantità di porte Power over Ethernet plus (PoE+)
The number of network ports on the switch that can provide power to connected devices using the PoE+ standard.
4
Condizioni ambientali
Intervallo temperatura di funzionamento
The minimum and maximum temperatures at which the product can be safely operated.
0 - 40 °C
Intervallo di temperatura
The minimum and maximum temperatures at which the product can be safely stored.
-40 - 70 °C
Range di umidità di funzionamento
The range of relative humidity, expressed as a percentage, within which the device can function correctly without damage or performance loss.
10 - 90%
Umidità
The permissible range of relative humidity, expressed as a percentage, within which the product can be stored without damage.
5 - 90%
Dissipazione del calore
Il calore misurato in unità di misura inglese per ore, generate dal fornitore di energia
263,6 BTU/h
Dimensioni e peso
Larghezza
The measurement or extent of something from side to side.
209 mm
Profondità
The distance from the front to the back of something.
126 mm
Altezza
Altezza del prodotto
26 mm
Contenuto dell'imballo
Manuale dell'utente
Indicates whether a printed user manual is included in the package.
Sì
Dati su imballaggio
Tipo di imballo
The type of product package e.g. box.
Scatola
Certificati di sicurezza
Certificazione
Specifies the official standards, safety approvals, or regulatory certifications the product has received.
CE, FCC, RoHS
TP-Link Omada TL-SG2008P. Tipo interruttore: Gestito, Livello del commutatore: L2/L2+. Tipo di porte RJ-45: Gigabit Ethernet (10/100/1000), Quantità di porte RJ-45: 8. Dimensioni tavola MAC: 8000 voci, Capacità di commutazione: 16 Gbit/s. Standard di rete: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE.... Supporto Power over Ethernet (PoE). Montaggio rack
