TPL

SG2005P-PD

Ean : 4897098689486

TP-Link Omada SG2005P-PD switch di rete Gestito L2/L2+ 10G Ethernet (100/1000/10000) Supporto Power over Ethernet (PoE) Desktop Bianco

* Non viene rilasciata alcuna garanzia su eventuali errori delle descrizioni tecniche aggiuntive né sull'accuratezza delle foto, da intendersi come un mero servizio informativo
Caratteristiche di gestione
Tipo interruttore
What switch device has
Gestito
Livello del commutatore
A network switch is a computer networking device that links networking segments. A switch has different layers
L2/L2+
Supporto qualità del servizio (QoS)
Indicates whether the device supports Quality of Service (QoS) to prioritize specific network traffic to ensure performance for critical applications.
Sì
Gestione web-based
Using a website/web application to manage something.
Sì
Gestito in Cloud
Indicates whether the device can be remotely configured, monitored, and managed via a cloud-based platform.
Sì
Ispezione ARP
Indicates whether the device supports Dynamic ARP Inspection to prevent ARP spoofing attacks by validating Address Resolution Protocol packets.
Sì
Supporto MIB
Indicates whether the device supports the Management Information Base for network management and monitoring via protocols such as SNMP.
Y
Connettività

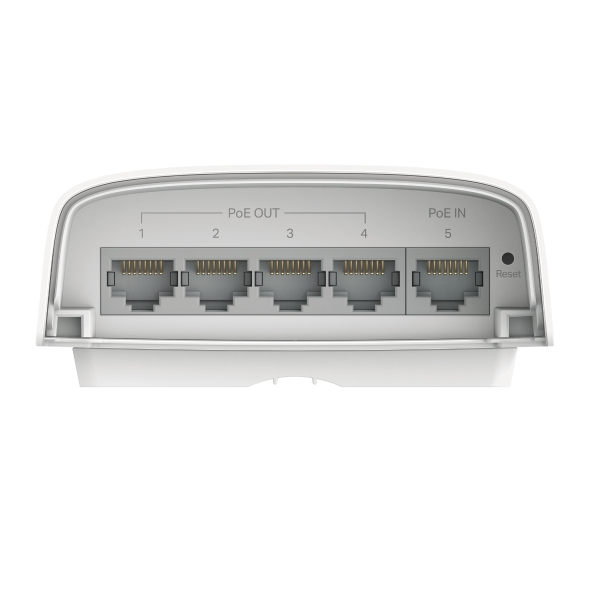

Quantità di porte RJ-45
The number of basic switching RJ-45 Ethernet ports (sockets).
4
Tipo di porte RJ-45
The type/category of basic switching RJ-45 Ethernet ports (sockets).
10G Ethernet (100/1000/10000)
Quantità di porte 10G Ethernet (rame)
The number of 10 Gigabit Ethernet ports that utilize copper cabling (RJ45) for network connectivity.
4
Collegamento in rete
Standard di rete
The way in which the network is working
IEEE 802.11d, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
Supporto 10G
The product can use Oracle 10G
Sì
Tecnologia Ethernet su cavi in rame
The specific standard used for data transmission over copper twisted-pair cables (e.g., 1000BASE-T).
10BASE-T, 100BASE-TX, 100BASE-T
Tipi di cavi supportati
Specifies the types of cabling compatible with the product (e.g. Cat6, Cat6a).
Cat5, Cat5e
Mirroring della porta
Indicates whether the network switch can copy traffic from one or more ports to another port for monitoring and analysis purposes.
Sì
Supporto controllo flusso
Indicates whether the device supports the management of data transmission rates to prevent buffer overflow.
Sì
Raggruppamento link
Indicates whether the device supports combining multiple network connections into a single logical link to increase throughput and provide redundancy.
Sì
Apertura albero di protocollo
Indicates whether the device supports a network protocol that prevents loops in a bridge network topology.
Sì
Percorsi IPv4
The maximum number of Internet Protocol version 4 routing table entries that the device can store and manage.
32
Percorsi IPv6
The maximum number of Internet Protocol version 6 routing table entries that the device can store and manage.
32
VLAN support
A Virtual Local Area Network (VLAN) consists of a group of computers and switches that can be physically distributed over different networks and buildings
Sì
Caratteristiche della LAN virtuale
Specifies the supported methods for segmenting a network into multiple logical broadcast domains on the switch or access point (e.g., MAC address-based VLAN or Management VLAN).
Voice VLAN
Numero di VLA
The maximum number of virtual local area networks that can be configured on the device to segment network traffic.
4000
Trasmissione dati
Capacità di commutazione
The data transfer capacity of the switch per second.
10 Gbit/s
Dimensioni tavola MAC
The MAC address is the 'Media Access Control Address'. It is a unique address given to a network interface controller (NIC) in a device. A MAC address table shows the addresses in a table format.
8000 voci
Supporto Jumbo Frames
Indicates whether the device supports Ethernet frames with a payload larger than the standard 1500 bytes to increase data transfer efficiency.
Sì
Frame Jumbo
Indicates the support for Ethernet frames larger than the standard 1500 bytes to increase data transfer efficiency (e.g. 9000 bytes).
9
Velocità di trasmissione a pacchetto (1 Gbps)
The number of packets the device can process and forward per second at a speed of 1 Gbps, measured in pps.
7440 pps
Buffer di memoria di pacchetto
The amount of memory available in the network switch to temporarily store data packets during congestion, typically measured in megabytes (MB) or kilobytes (KB).
4,1 MB
Sicurezza
Caratteristiche DHCP
Specifies the supported Dynamic Host Configuration Protocol (DHCP) options for network configuration, such as DHCP Option 66 for boot server addresses.
DHCP relay, DHCP server
Lista di controllo accesso (ACL)
Indicates whether the device supports the definition of rules to filter network traffic and manage access permissions based on specific criteria.
Sì
Voci IPv4 Access Control List (ACL)
The maximum number of IPv4 access control list entries that can be configured to filter network traffic.
32
Funzione IGMP snooping
Indicates whether the device can optimize multicast traffic by ensuring it is only forwarded to the ports that have requested it.
Sì
Algoritmi di sicurezza supportati
Security algorithms are used to provide authentication
802.1x RADIUS
Filtri MAC address
Security access control method whereby the 48-bit address assigned to each network card is used to determine access to the network. MAC addresses are uniquely assigned to each card
Sì
Funzione IP-MAC-Port binding
Indicates whether the device can link a specific IP address and MAC address to a physical port to enhance network security and prevent unauthorized access.
Sì
Autenticazione
The method used to verify the identity of a user or device before granting network access (e.g., MAC authentication or Captive portal).
Autenticazione basata su MAC, Autenticazione basata su Port
Protezione della password
The computer
Sì
Funzioni Multicast
Supporto multicast
Indicates whether the device supports the simultaneous transmission of a single data stream to multiple recipients.
Sì
Tabella degli indirizzi MAC multicast
The maximum number of multicast MAC addresses that can be stored in the address table, measured in entries.
8000 voci
Voci IPv4 multicast
The maximum number of IPv4 multicast group addresses that can be stored in the device's forwarding table.
511
Voci IPv6 multicast
The maximum number of IPv6 multicast group addresses that can be stored in the device's forwarding table.
511
Protocolli
Caratteristiche IPv4 e IPv6
Specifies the supported Internet Protocol versions and related networking capabilities, such as dual stack operation or Access Control Lists (ACL).
Dual stack IPv4/IPv6, IPv4/IPv6 access-control list (ACL), IPv6 tracert
Design
Montaggio rack
The type of mounting that can position devices in a shelving system (rack).
No
Impilabile
Devices can be placed on top of each other.
No
Fattore di forma
Descrizione delle caratteristiche , e/o grandezza del prodotto, incluso modello
Desktop
Colore del prodotto
The colour e.g. red
Bianco

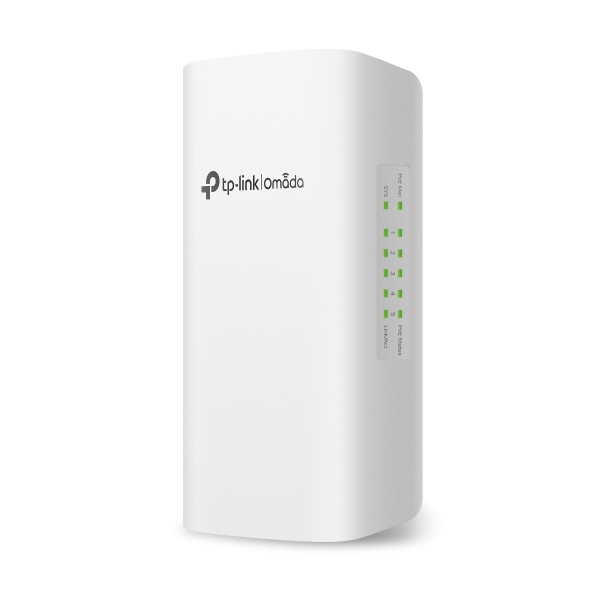

Indicatori LED
The specific status lights available on the unit to provide visual feedback on its current state or connectivity (e.g., AC input, ACT, or Access).
Sì
Gestione energetica
Alimentazione
What is providing power for the product e.g. mains electricity.
DC/PoE
Fonte di alimentazione inclusa
There is a power supply with this product.
Sì
Consumi
Ammontare di energia consumata da questo modello espressa in watt, Solitamente i valori emessi dal produttore corrispondono a valori a dispositivo spento, in stand-by, durante il normale utilizzo e alle sue massime prestazioni
71,5 W
Power over Ethernet (PoE)
Supporto Power over Ethernet (PoE)
The device supports Power over Ethernet (PoE)
Sì
Potenza Power over Ethernet (PoE) per porta
The maximum amount of electrical power the network switch can deliver to a connected device per port, measured in Watts.
64 W
Condizioni ambientali
Intervallo temperatura di funzionamento
The minimum and maximum temperatures at which the product can be safely operated.
-40 - 60 °C
Intervallo di temperatura
The minimum and maximum temperatures at which the product can be safely stored.
-40 - 70 °C
Range di umidità di funzionamento
The range of relative humidity, expressed as a percentage, within which the device can function correctly without damage or performance loss.
10 - 90%
Umidità
The permissible range of relative humidity, expressed as a percentage, within which the product can be stored without damage.
5 - 90%
Dissipazione del calore
Il calore misurato in unità di misura inglese per ore, generate dal fornitore di energia
243,99 BTU/h
Dimensioni e peso
Larghezza
The measurement or extent of something from side to side.
170 mm
Profondità
The distance from the front to the back of something.
100 mm
Altezza
Altezza del prodotto
38,5 mm
Sostenibilità
Conformità alla sostenibilità
Indicates whether the product complies with established environmental and sustainability standards.
Sì
Certificati di sicurezza
Certificati di conformità
Indicates which regulatory, safety, and environmental standards the product complies with, as verified by recognized authorities or certification bodies.
CE, RoHS
TP-Link Omada SG2005P-PD. Tipo interruttore: Gestito, Livello del commutatore: L2/L2+. Tipo di porte RJ-45: 10G Ethernet (100/1000/10000), Quantità di porte RJ-45: 4. Dimensioni tavola MAC: 8000 voci, Capacità di commutazione: 10 Gbit/s. Standard di rete: IEEE 802.11d, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE.... Supporto Power over Ethernet (PoE). Fattore di forma: Desktop
