TPL

SG5428XMPP

Ean : 8885020626445

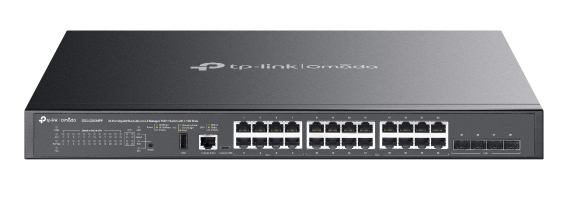

TP-Link SG5428XMPP switch di rete Gestito L3 Gigabit Ethernet (10/100/1000) Supporto Power over Ethernet (PoE) Nero

* Non viene rilasciata alcuna garanzia su eventuali errori delle descrizioni tecniche aggiuntive né sull'accuratezza delle foto, da intendersi come un mero servizio informativo
Caratteristiche di gestione
Tipo interruttore
What switch device has
Gestito
Livello del commutatore
A network switch is a computer networking device that links networking segments. A switch has different layers
L3
Supporto qualità del servizio (QoS)
Indicates whether the device supports Quality of Service (QoS) to prioritize specific network traffic to ensure performance for critical applications.
Sì
Gestione web-based
Using a website/web application to manage something.
Sì
Gestito in Cloud
Indicates whether the device can be remotely configured, monitored, and managed via a cloud-based platform.
Sì
Ispezione ARP
Indicates whether the device supports Dynamic ARP Inspection to prevent ARP spoofing attacks by validating Address Resolution Protocol packets.
Sì
Connettività
Quantità di porte RJ-45
The number of basic switching RJ-45 Ethernet ports (sockets).
24
Tipo di porte RJ-45
The type/category of basic switching RJ-45 Ethernet ports (sockets).
Gigabit Ethernet (10/100/1000)
Quantità di porte Gigabit Ethernet (rame)
The number of RJ45 copper ports supporting data transfer speeds of up to 1 Gbps (e.g. 24).
24
Quantità di slot del modulo SFP+
The total number of available slots for inserting SFP+ transceiver modules to provide high-speed fiber optic or copper connectivity.
4
Quantità di porte USB Tipo C
The total number of USB Type-C ports available on the device.
1
Console port
The type of physical connector used for the management or console interface of the device (e.g. RJ-45 or USB).
RJ-45
Quantità porte USB 2.0
La porta USB 2.0 ha una velocità di trasmissione data di 480 Mbps ed è diversamente compatibile con la porta USB 1.1 .Si può collegare qualsiasi tipo di dispositivo periferico a questi.
1
Collegamento in rete
Standard di rete
The way in which the network is working
IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt
Supporto 10G
The product can use Oracle 10G
Sì
Mirroring della porta
Indicates whether the network switch can copy traffic from one or more ports to another port for monitoring and analysis purposes.
Sì
Raggruppamento link
Indicates whether the device supports combining multiple network connections into a single logical link to increase throughput and provide redundancy.
Sì
Controllo Broadcast storm
Indicates whether the device can monitor and limit the amount of broadcast traffic to prevent network congestion and potential crashes.
Sì
VLAN support
A Virtual Local Area Network (VLAN) consists of a group of computers and switches that can be physically distributed over different networks and buildings
Sì
Caratteristiche della LAN virtuale
Specifies the supported methods for segmenting a network into multiple logical broadcast domains on the switch or access point (e.g., MAC address-based VLAN or Management VLAN).
Voice VLAN, MAC address-based VLAN, Private VLAN, Protocol-based VLAN
Numero di VLA
The maximum number of virtual local area networks that can be configured on the device to segment network traffic.
4000
Trasmissione dati
Capacità di commutazione
The data transfer capacity of the switch per second.
128 Gbit/s
tasso di inoltro
The number of packets the device can process and send per second, measured in millions of packets per second (e.g., 148.8 Mpps).
95,23 Mpps
Dimensioni tavola MAC
The MAC address is the 'Media Access Control Address'. It is a unique address given to a network interface controller (NIC) in a device. A MAC address table shows the addresses in a table format.
16000 voci
Store-and-forward
Indicates whether the device buffers the entire incoming packet to verify its integrity before forwarding it to the destination.
Sì
Supporto Jumbo Frames
Indicates whether the device supports Ethernet frames with a payload larger than the standard 1500 bytes to increase data transfer efficiency.
Sì
Frame Jumbo
Indicates the support for Ethernet frames larger than the standard 1500 bytes to increase data transfer efficiency (e.g. 9000 bytes).
9000
Buffer di memoria di pacchetto
The amount of memory available in the network switch to temporarily store data packets during congestion, typically measured in megabytes (MB) or kilobytes (KB).
12 MB
Sicurezza
Caratteristiche DHCP
Specifies the supported Dynamic Host Configuration Protocol (DHCP) options for network configuration, such as DHCP Option 66 for boot server addresses.
DHCP relay, DHCP server
Funzione IGMP snooping
Indicates whether the device can optimize multicast traffic by ensuring it is only forwarded to the ports that have requested it.
Sì
Algoritmi di sicurezza supportati
Security algorithms are used to provide authentication
SNMP, SNMPv2, SNMPv3
Filtri MAC address
Security access control method whereby the 48-bit address assigned to each network card is used to determine access to the network. MAC addresses are uniquely assigned to each card
Sì
Porta di sicurezza statica
Indicates whether the device supports the manual configuration of specific MAC addresses to secure a network port.
Sì
Supporto SSH/SSL
Indicates whether the device supports secure remote management via SSH or SSL protocols.
Sì
Funzione IP-MAC-Port binding
Indicates whether the device can link a specific IP address and MAC address to a physical port to enhance network security and prevent unauthorized access.
Sì
Protezione della password
The computer
Sì
Funzioni Multicast
Supporto multicast
Indicates whether the device supports the simultaneous transmission of a single data stream to multiple recipients.
Sì
Design
Montaggio rack
The type of mounting that can position devices in a shelving system (rack).
Sì
Impilabile
Devices can be placed on top of each other.
Sì
Colore del prodotto
The colour e.g. red
Nero
Indicatori LED
The specific status lights available on the unit to provide visual feedback on its current state or connectivity (e.g., AC input, ACT, or Access).
Sì
Numero di ventole
The quantity of fans (apparatus with rotating blades that creates a current of air for cooling or ventilation).
3 ventola(e)
Prestazione
Impilamento fisico (unità)
The maximum number of individual devices that can be connected together to operate as a single logical unit.
4
Processore integrato
Whether or not a processor is built into the device.
Sì
Produttore processore
The manufacturer that produced the processor.
ARM
Frequenza del processore
La velocità del processore è espressa. Spesso la velocità dello stesso viene misurata dal manuffatore in Ghz (1 GHz = 1000 MHz). La tassa dell' ' orologio è la tassa fondamentale per giro al secondo(misurato in hertz) alla quale il computer svolge le operazioni base come per esempio l'addizione di numeri.Ci sono inoltre ulteriori fattori che influenzano il tempo di risposta del dispositivo, come ad esempio la capacità della memoria interna.
1200 MHz
Tipo memoria
Memoria ECC per questa configurazione; inclusa di grandezza espressa in bytes, seguito dalla velocità espressa in megahertz; e dal tipo di memoria
DRAM
RAM installata
La capacità della memoria misurata in megabyte installata nell' hardware del sistema
2000 MB
Memoria flash
The total amount of non-volatile storage available for firmware or data, measured in MB.
512 MB
Firmware aggiornabile
Indicates whether the internal software of the device can be updated to a newer version to improve performance or add features.
Sì
Telnet
Indicates whether the device supports the Telnet protocol for remote terminal access and configuration.
Sì
Tempo medio tra guasti (MTBF)
Modo statistico usato per indicare l'affidabilità del prodotto/ meccanismo espresso in ore e percentuale per circuiti di lavorazione. Il numero (espresso in ore)non calcola il tempo prima dell'errore della singola unit à/ meccanismo.
292,83 h
Gestione energetica
Alimentazione
What is providing power for the product e.g. mains electricity.
AC/PoE
Fonte di alimentazione inclusa
There is a power supply with this product.
Sì
Tensione di ingresso AC
The voltage of the AC electricity that is inputted into the product.
100 - 240 V
Frequenza di ingresso AC
The range of alternating current frequencies the device can accept from the power source, measured in hertz (e.g., 45 - 65).
50/60 Hz
Consumo energetico (max)
The maximum amount of power used by the device.
587,7 W
Protezione contro le sovratensioni
Indicates whether the device protects connected equipment from sudden voltage spikes.
Sì
Protezione contro le sovratensioni
The maximum voltage spike that the device can withstand without sustaining damage, measured in kV.
6 kV
Power over Ethernet (PoE)
Supporto Power over Ethernet (PoE)
The device supports Power over Ethernet (PoE)
Sì
Tipo Power over Ethernet (PoE) supportato
Specifies the standard of power delivery supported over the network cable, such as Active PoE or high-power variants like PoE++ (4PPoE).
PoE+, PoE++ (4PPoE)
Quantità di porte Power over Ethernet plus (PoE+)
The number of network ports on the switch that can provide power to connected devices using the PoE+ standard.
16
Numero di porte Power over Ethernet 4PPoE (PoE++)
The number of network switch ports that support the 4PPoE (PoE++) standard to provide high-power electricity to connected devices.
8
Potenza Power over Ethernet (PoE) per porta
The maximum amount of electrical power the network switch can deliver to a connected device per port, measured in Watts.
90 W
Bilancio energetico totale del PoE
The maximum total amount of power available to be distributed across all PoE-enabled ports, measured in Watts (e.g. 120W).
500 W
Altre caratteristiche
Livello di gestione
Specifies the degree of configuration and control available for the device, ranging from basic plug-and-play functionality to advanced administrative settings (e.g., Unmanaged, Smart, Fully Managed).
4
Ampiezza banda
The maximum rate of data transfer that the device can handle, measured in Gbit/s.
64 Gbit/s
Condizioni ambientali
Intervallo temperatura di funzionamento
The minimum and maximum temperatures at which the product can be safely operated.
-5 - 45 °C
Intervallo di temperatura
The minimum and maximum temperatures at which the product can be safely stored.
-40 - 70 °C
Range di umidità di funzionamento
The range of relative humidity, expressed as a percentage, within which the device can function correctly without damage or performance loss.
10 - 90%
Umidità
The permissible range of relative humidity, expressed as a percentage, within which the product can be stored without damage.
5 - 90%
Dimensioni e peso
Larghezza
The measurement or extent of something from side to side.
440 mm
Profondità
The distance from the front to the back of something.
330 mm
Altezza
Altezza del prodotto
44 mm
Contenuto dell'imballo
Cavi inclusi
Specifies the types and quantities of connection cables provided with the product (e.g., 3.5 mm to 3.5 mm or SATA).
AC
Guida rapida
Instructions
Sì
Kit di montaggio per rack
Indicates whether the necessary hardware is included to install the unit into a standard 19-inch equipment rack.
Sì
Certificati di sicurezza
Certificati di conformità
Indicates which regulatory, safety, and environmental standards the product complies with, as verified by recognized authorities or certification bodies.
Federal Communications Commission (FCC), RoHS, CE
TP-Link SG5428XMPP. Tipo interruttore: Gestito, Livello del commutatore: L3. Tipo di porte RJ-45: Gigabit Ethernet (10/100/1000), Quantità di porte RJ-45: 24, Quantità porte USB 2.0: 1, Console port: RJ-45. Dimensioni tavola MAC: 16000 voci, Capacità di commutazione: 128 Gbit/s. Standard di rete: IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt. Supporto Power over Ethernet (PoE). Montaggio rack
