TPL

SG3452P

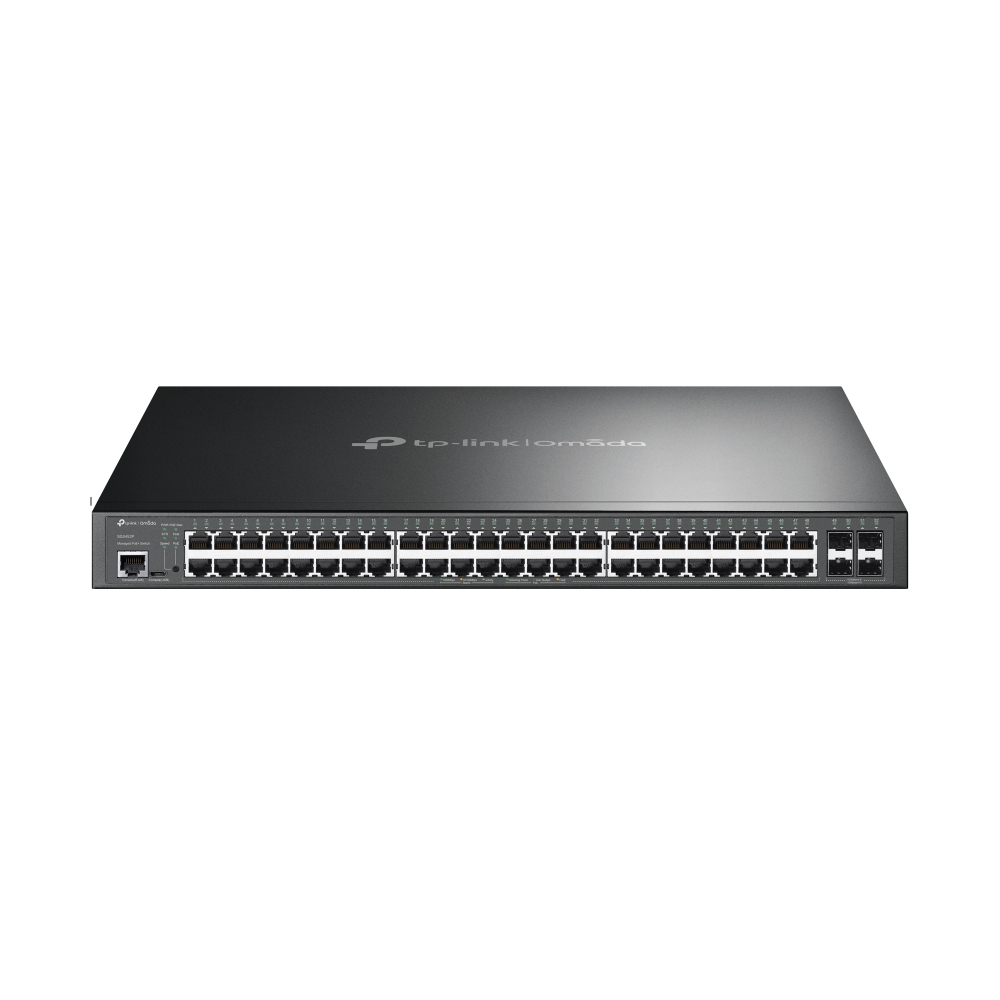

TP-Link Omada SG3452P switch di rete Gestito L2/L3 Gigabit Ethernet (10/100/1000) Supporto Power over Ethernet (PoE) 1U Nero

* Non viene rilasciata alcuna garanzia su eventuali errori delle descrizioni tecniche aggiuntive né sull'accuratezza delle foto, da intendersi come un mero servizio informativo
Caratteristiche di gestione
Tipo interruttore
What switch device has
Gestito
Livello del commutatore
A network switch is a computer networking device that links networking segments. A switch has different layers
L2/L3
Supporto qualità del servizio (QoS)
Indicates whether the device supports Quality of Service (QoS) to prioritize specific network traffic to ensure performance for critical applications.
Sì
Gestione web-based
Using a website/web application to manage something.
Sì
Gestito in Cloud
Indicates whether the device can be remotely configured, monitored, and managed via a cloud-based platform.
Sì
Ispezione ARP
Indicates whether the device supports Dynamic ARP Inspection to prevent ARP spoofing attacks by validating Address Resolution Protocol packets.
Sì
Registro evento di sistema
Indicates whether the device maintains a record of internal system events and status changes for diagnostic purposes.
Sì
Supporto MIB
Indicates whether the device supports the Management Information Base for network management and monitoring via protocols such as SNMP.
Yes
Connettività
Quantità di porte RJ-45
The number of basic switching RJ-45 Ethernet ports (sockets).
48
Tipo di porte RJ-45
The type/category of basic switching RJ-45 Ethernet ports (sockets).
Gigabit Ethernet (10/100/1000)
Quantità di slot per modulo SFP
The total number of available slots for inserting Small Form-factor Pluggable (SFP) transceiver modules.
4
Console port
The type of physical connector used for the management or console interface of the device (e.g. RJ-45 or USB).
RJ-45/micro-USB
Connettore di alimentazione
The type of electrical interface used to provide power to the network switch, such as a C13 socket or a DC-in jack.
Jack di ingresso AC
Collegamento in rete
Standard di rete
The way in which the network is working
IEEE 802.1D, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3x
Supporto 10G
The product can use Oracle 10G
No
Mirroring della porta
Indicates whether the network switch can copy traffic from one or more ports to another port for monitoring and analysis purposes.
Sì
Routing IP
Indicates whether the device can forward data packets between different networks by determining the best path to the destination.
Sì
Routing basato su criteri
Indicates whether the network switch can route traffic based on defined policies rather than just destination IP addresses.
Sì
Supporto controllo flusso
Indicates whether the device supports the management of data transmission rates to prevent buffer overflow.
Sì
Raggruppamento link
Indicates whether the device supports combining multiple network connections into a single logical link to increase throughput and provide redundancy.
Sì
Controllo Broadcast storm
Indicates whether the device can monitor and limit the amount of broadcast traffic to prevent network congestion and potential crashes.
Sì
Limitazione della velocità
Indicates whether the device can control the maximum amount of network traffic allowed to pass through a specific port or interface to prevent congestion.
Sì
Apertura albero di protocollo
Indicates whether the device supports a network protocol that prevents loops in a bridge network topology.
Sì
Blocco Head-of-line (HOL)
Indicates whether the device is susceptible to a performance degradation where a queue is blocked by a packet at the front of the line.
Sì
Velocità trasferimento Ethernet LAN
The different speed levels of the Ethernet LAN connection.
10,100,1000 Mbit/s
Rilevamento di collegamento attivo
Indicates whether the device can automatically detect when a network link is established on a port.
Sì
VLAN support
A Virtual Local Area Network (VLAN) consists of a group of computers and switches that can be physically distributed over different networks and buildings
Sì
Caratteristiche della LAN virtuale
Specifies the supported methods for segmenting a network into multiple logical broadcast domains on the switch or access point (e.g., MAC address-based VLAN or Management VLAN).
MAC address-based VLAN, Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN
Numero di VLA
The maximum number of virtual local area networks that can be configured on the device to segment network traffic.
4000
Trasmissione dati
Capacità di commutazione
The data transfer capacity of the switch per second.
104 Gbit/s
tasso di inoltro
The number of packets the device can process and send per second, measured in millions of packets per second (e.g., 148.8 Mpps).
77,38 Mpps
Dimensioni tavola MAC
The MAC address is the 'Media Access Control Address'. It is a unique address given to a network interface controller (NIC) in a device. A MAC address table shows the addresses in a table format.
16000 voci
Store-and-forward
Indicates whether the device buffers the entire incoming packet to verify its integrity before forwarding it to the destination.
Sì
Instradamento statico
Indicates whether the device allows the manual configuration of fixed paths for network traffic to specific destinations.
Sì
Numero di instradamenti statici
The maximum number of fixed network paths that can be manually configured in the routing table.
48
Supporto Jumbo Frames
Indicates whether the device supports Ethernet frames with a payload larger than the standard 1500 bytes to increase data transfer efficiency.
Sì
Frame Jumbo
Indicates the support for Ethernet frames larger than the standard 1500 bytes to increase data transfer efficiency (e.g. 9000 bytes).
9000
Buffer di memoria di pacchetto
The amount of memory available in the network switch to temporarily store data packets during congestion, typically measured in megabytes (MB) or kilobytes (KB).
12 MB
Sicurezza
Caratteristiche DHCP
Specifies the supported Dynamic Host Configuration Protocol (DHCP) options for network configuration, such as DHCP Option 66 for boot server addresses.
DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping
Lista di controllo accesso (ACL)
Indicates whether the device supports the definition of rules to filter network traffic and manage access permissions based on specific criteria.
Sì
Funzione IGMP snooping
Indicates whether the device can optimize multicast traffic by ensuring it is only forwarded to the ports that have requested it.
Sì
Supporto SSH/SSL
Indicates whether the device supports secure remote management via SSH or SSL protocols.
Sì
Protezione contro i loop back
Indicates whether the device has a mechanism to detect and prevent network loops to avoid broadcast storms.
Sì
Protezione/Filtro BPDU
Indicates whether the device supports Bridge Protocol Data Unit (BPDU) filtering or protection to prevent network loops and enhance security.
Sì
Autenticazione
The method used to verify the identity of a user or device before granting network access (e.g., MAC authentication or Captive portal).
Autenticazione basata su MAC, Autenticazione basata su Port
Protezione della password
The computer
Sì
Funzioni Multicast
Supporto multicast
Indicates whether the device supports the simultaneous transmission of a single data stream to multiple recipients.
Sì
Protocolli
Protocolli di gestione
The communication standards used for the remote administration and monitoring of the device (e.g. LoRaWAN).
SNMPv1/v2c/v3, SNTP
Protocollo di registrazione GARP VLAN (GVRP)
Indicates whether the device supports the GARP VLAN Registration Protocol (GVRP) for the automatic distribution of VLAN configuration.
Sì
Design
Montaggio rack
The type of mounting that can position devices in a shelving system (rack).
Sì
Fattore di forma
Descrizione delle caratteristiche , e/o grandezza del prodotto, incluso modello
1U
Colore del prodotto
The colour e.g. red
Nero
Tasto reset
Indicates whether the device features a dedicated button to restore the unit to its original factory settings.
Sì
Indicatori LED
The specific status lights available on the unit to provide visual feedback on its current state or connectivity (e.g., AC input, ACT, or Access).
Sì
Numero di ventole
The quantity of fans (apparatus with rotating blades that creates a current of air for cooling or ventilation).
3 ventola(e)
Gestione energetica
Alimentazione
What is providing power for the product e.g. mains electricity.
AC
Fonte di alimentazione inclusa
There is a power supply with this product.
Sì
Tensione di ingresso AC
The voltage of the AC electricity that is inputted into the product.
100 - 240 V
Frequenza di ingresso AC
The range of alternating current frequencies the device can accept from the power source, measured in hertz (e.g., 45 - 65).
50/60 Hz
Consumo energetico (max)
The maximum amount of power used by the device.
464,2 W
Power over Ethernet (PoE)
Supporto Power over Ethernet (PoE)
The device supports Power over Ethernet (PoE)
Sì
Quantità di porte Power over Ethernet plus (PoE+)
The number of network ports on the switch that can provide power to connected devices using the PoE+ standard.
48
Potenza Power over Ethernet (PoE) per porta
The maximum amount of electrical power the network switch can deliver to a connected device per port, measured in Watts.
30 W
Bilancio energetico totale del PoE
The maximum total amount of power available to be distributed across all PoE-enabled ports, measured in Watts (e.g. 120W).
384 W
Condizioni ambientali
Intervallo temperatura di funzionamento
The minimum and maximum temperatures at which the product can be safely operated.
0 - 40 °C
Intervallo di temperatura
The minimum and maximum temperatures at which the product can be safely stored.
-40 - 70 °C
Range di umidità di funzionamento
The range of relative humidity, expressed as a percentage, within which the device can function correctly without damage or performance loss.
10 - 90%
Umidità
The permissible range of relative humidity, expressed as a percentage, within which the product can be stored without damage.
5 - 90%
Dissipazione del calore
Il calore misurato in unità di misura inglese per ore, generate dal fornitore di energia
1584,08 BTU/h
Dimensioni e peso
Larghezza
The measurement or extent of something from side to side.
440 mm
Profondità
The distance from the front to the back of something.
330 mm
Altezza
Altezza del prodotto
44 mm
Contenuto dell'imballo
Cavi inclusi
Specifies the types and quantities of connection cables provided with the product (e.g., 3.5 mm to 3.5 mm or SATA).
AC
Guida rapida
Instructions
Sì
Manuale dell'utente
Indicates whether a printed user manual is included in the package.
Sì
Dati su imballaggio
Tipo di imballo
The type of product package e.g. box.
Scatola
TP-Link Omada SG3452P. Tipo interruttore: Gestito, Livello del commutatore: L2/L3. Tipo di porte RJ-45: Gigabit Ethernet (10/100/1000), Quantità di porte RJ-45: 48, Console port: RJ-45/micro-USB. Dimensioni tavola MAC: 16000 voci, Capacità di commutazione: 104 Gbit/s. Standard di rete: IEEE 802.1D, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3x. Connettore di alimentazione: Jack di ingresso AC. Supporto Power over Ethernet (PoE). Montaggio rack, Fattore di forma: 1U
