TPL

FUSION 2.5G POE

Ean : 1210002636056

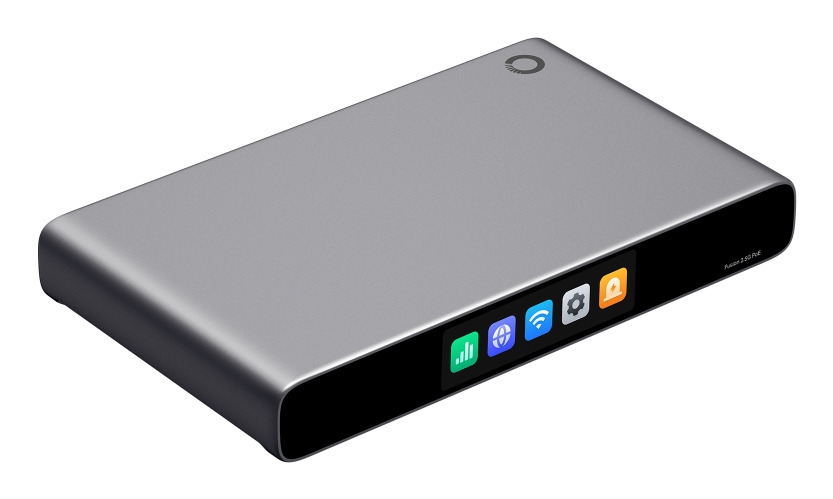

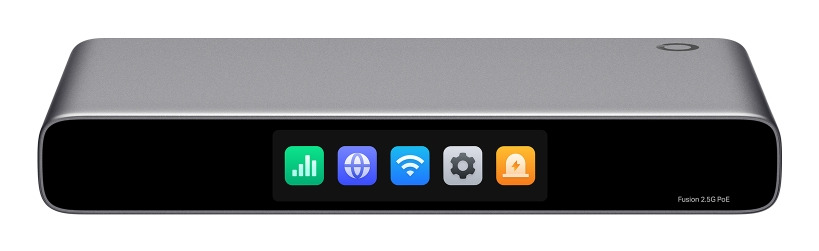

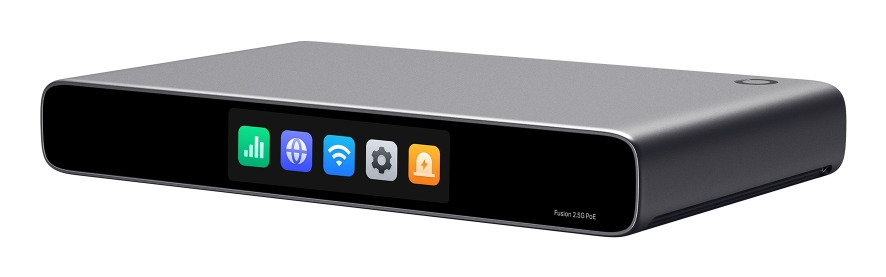

TP-Link Omada Fusion 2.5G PoE gateway/controller 10, 100, 1000, 2500 Mbit/s

* Non viene rilasciata alcuna garanzia su eventuali errori delle descrizioni tecniche aggiuntive né sull'accuratezza delle foto, da intendersi come un mero servizio informativo
Design
Colore del prodotto
The colour e.g. red
Nero, Grigio
Materiale dell'involucro
The primary material used for the outer casing of the device (e.g., Aluminium, Plastic or Stainless steel).
Policarbonato (PC)
Tipo di montaggio
Type of mounting e.g. wall mounting.
Rack/Desktop/Muro
Indicatori LED
The specific status lights available on the unit to provide visual feedback on its current state or connectivity (e.g., AC input, ACT, or Access).
LAN
Prestazione
Unità del display di controllo
Indicates whether the device includes a built-in display unit for monitoring and control purposes.
Sì
Tipo di display
Type of display (screen) e.g. LCD.
LCM
Processore integrato
Whether or not a processor is built into the device.
Sì
Numero di processori installati
Numero di processori e supporti per multi-processatori disponibili per questo prodotto
1
RAM installata
La capacità della memoria misurata in megabyte installata nell' hardware del sistema
2048 MB
Tipo di RAM
The type of internal memory such as RAM
DDR4
Trasmissione dati
Instradamento statico
Indicates whether the device allows the manual configuration of fixed paths for network traffic to specific destinations.
Sì
Protocolli
Server DHCP
A server is a system which that responds to requests across a computer network to provide
Sì
Supporto DMZ
Indicates whether the device supports a Demilitarized Zone to allow external traffic to reach a specific internal host.
Sì
Collegamento in rete
Velocità trasferimento Ethernet LAN
The different speed levels of the Ethernet LAN connection.
10,100,1000,2500 Mbit/s
Standard di rete
The way in which the network is working
IEEE 802.1x
DNS Dinamico (DDNS)
Indicates whether the device supports a service that automatically updates a DNS record to map a domain name to a changing IP address.
Sì
Supporto VPN
Indicates whether the device supports the creation or connection of a Virtual Private Network for secure remote access.
Omada LightLink VPN, WireGuard VPN, OpenVPN, IPsec VPN, SSL VPN, L2TP VPN, PPTP VPN
Sicurezza
Lista di controllo accesso (ACL)
Indicates whether the device supports the definition of rules to filter network traffic and manage access permissions based on specific criteria.
Sì
Algoritmi di sicurezza supportati
Security algorithms are used to provide authentication
SNMP, SNMPv2c, SNMPv3
Sicurezza firewall
Part of a computer system or network which is designed to block unauthorized access while permitting outward communication.
Sì
VLAN support
A Virtual Local Area Network (VLAN) consists of a group of computers and switches that can be physically distributed over different networks and buildings
Sì
NAT (Traduzione dell'indirizzo di rete)
Indicates whether the device can remap one IP address space into another while in transit.
Sì
Connettività

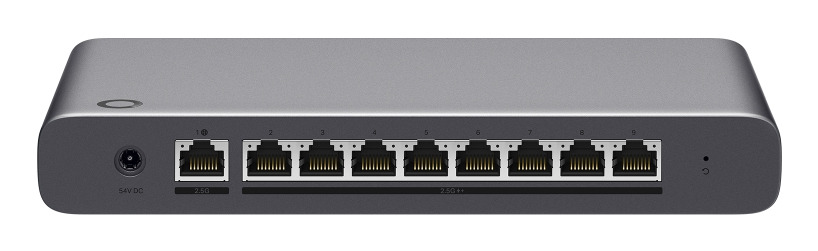

Quantità porte Ethernet LAN (RJ-45)
Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.
9
Porta WAN
A wide area network (WAN) is a network that covers a broad area (i.e. any telecommunications network that links across metropolitan
Ethernet (RJ-45)
Jack DC-in
The socket/plug where the DC electricity supply connects to the device.
Sì
Caratteristiche di gestione
Gestione web-based
Using a website/web application to manage something.
Sì
Supporto qualità del servizio (QoS)
Indicates whether the device supports Quality of Service (QoS) to prioritize specific network traffic to ensure performance for critical applications.
Sì
Universal Plug and Play (UPnP)
Indicates whether the device supports the automatic discovery and configuration of network services to allow seamless communication between devices on a local network.
Sì
Tasto reset
Indicates whether the device features a dedicated button to restore the unit to its original factory settings.
Sì
Syslog
Indicates whether the device supports sending system log messages to a remote server for monitoring and troubleshooting.
Sì
Gestione energetica
Consumo energetico (max)
The maximum amount of power used by the device.
131 W
Corrente d'ingresso
The amount of electrical current drawn by the device during operation, typically measured in amperes (A) or milliamperes (mA).
2.43 A
Tipo Power over Ethernet (PoE) supportato
Specifies the standard of power delivery supported over the network cable, such as Active PoE or high-power variants like PoE++ (4PPoE).
PoE+
Supporto Power over Ethernet (PoE)
The device supports Power over Ethernet (PoE)
Sì
Voltaggio input DC
The range or specific value of direct current voltage required for the device to operate, measured in volts (e.g., 12 or 10 - 58).
54 V
Protezione contro le scariche elettrostatiche (ESD)
Indicates whether the product incorporates safeguards to prevent damage caused by the sudden flow of electricity between two electrically charged objects.
Sì
Protezione (aria) da scariche elettrostatiche (ESD)
The maximum voltage level the device can withstand from a sudden electrostatic discharge in the air before sustaining damage, measured in kilovolts (kV).
8 kV
Protezione (contatto) da scariche elettrostatiche (ESD)
The maximum voltage level the device can withstand from an electrostatic discharge on its contacts, measured in kV.
4 kV
Dimensioni e peso
Larghezza
The measurement or extent of something from side to side.
226 mm
Profondità
The distance from the front to the back of something.
135 mm
Altezza
Altezza del prodotto
31,5 mm
Peso
Il peso del prodotto senza imballaggio (peso netto). Se possibile, il peso netto viene espresso compreso di accessori standard e forniture . Notate che alle volte il produttore interpreta troppo seriamente il peso del prodotto,tralasciando il peso degli accessori e/o fornimenti .
728 g
Contenuto dell'imballo
Adattatore AC/DC
Indicates whether a power supply unit for connecting the device to an AC outlet is provided in the package.
Sì
Manuale dell'utente
Indicates whether a printed user manual is included in the package.
Sì
Cavi inclusi
Specifies the types and quantities of connection cables provided with the product (e.g., 3.5 mm to 3.5 mm or SATA).
AC, LAN (RJ-45)
Condizioni ambientali
Intervallo temperatura di funzionamento
The minimum and maximum temperatures at which the product can be safely operated.
-10 - 40 °C
Intervallo di temperatura
The minimum and maximum temperatures at which the product can be safely stored.
-30 - 70 °C
Range di umidità di funzionamento
The range of relative humidity, expressed as a percentage, within which the device can function correctly without damage or performance loss.
10 - 90%
Umidità
The permissible range of relative humidity, expressed as a percentage, within which the product can be stored without damage.
5 - 90%
Certificati di sicurezza
Certificati di conformità
Indicates which regulatory, safety, and environmental standards the product complies with, as verified by recognized authorities or certification bodies.
CE, Federal Communications Commission (FCC), RoHS
Display
Dimensioni diagonale schermo
Larghezza dello schermo per questo prodotto, espresso in inches diagonali
9,37 cm (3.69")
TP-Link Omada Fusion 2.5G PoE. Colore del prodotto: Nero, Grigio, Materiale dell'involucro: Policarbonato (PC), Tipo di montaggio: Rack/Desktop/Muro. Tipo di display: LCM, RAM installata: 2048 MB, Tipo di RAM: DDR4. Velocità trasferimento Ethernet LAN: 10,100,1000,2500 Mbit/s, Standard di rete: IEEE 802.1x, Supporto VPN: Omada LightLink VPN, WireGuard VPN, OpenVPN, IPsec VPN, SSL VPN, L2TP VPN, PPTP VPN. Algoritmi di sicurezza supportati: SNMP, SNMPv2c, SNMPv3. Porta WAN: Ethernet (RJ-45)
