MSI

PRO B550M-P

Ean : 4711377453547

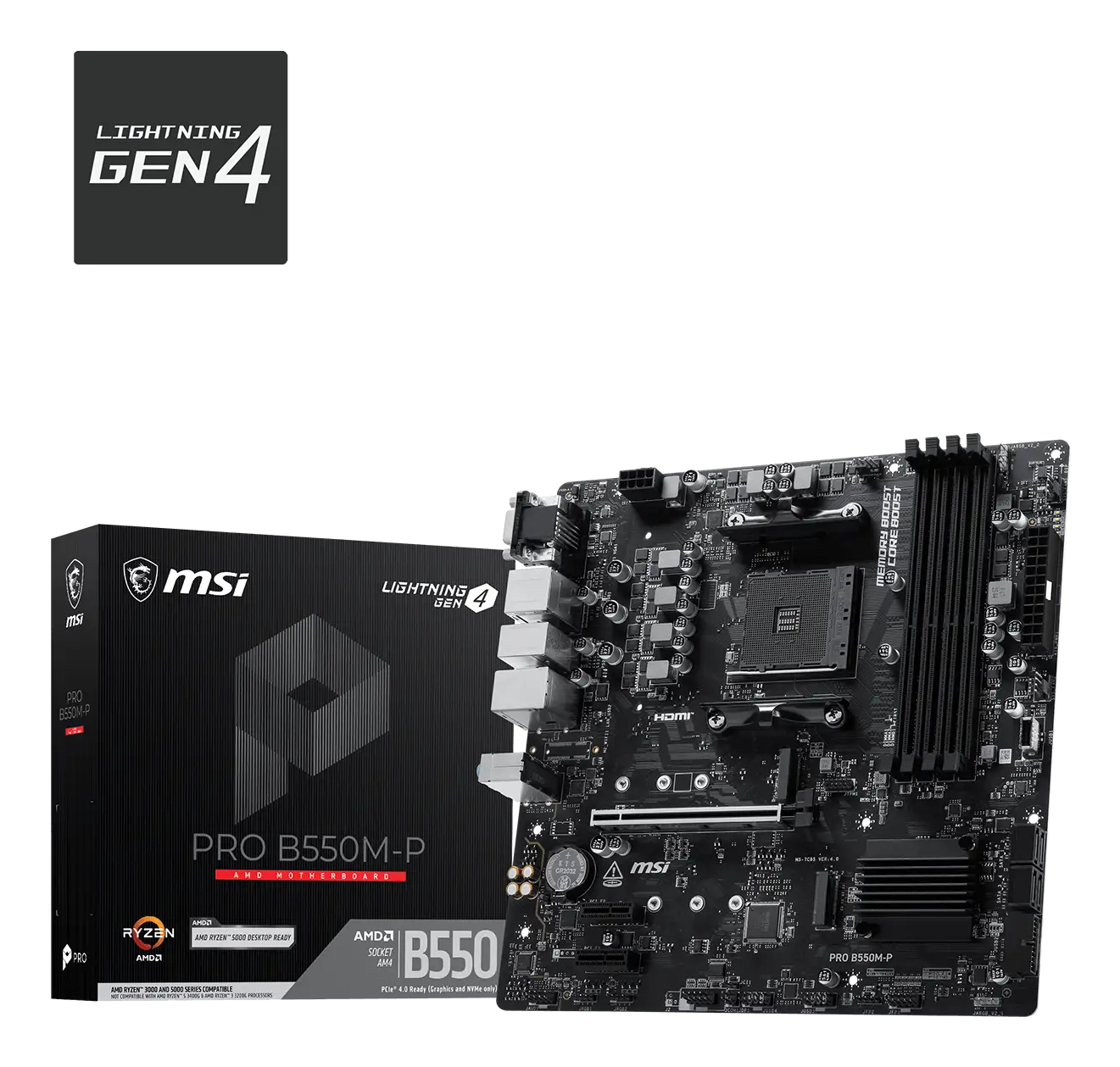

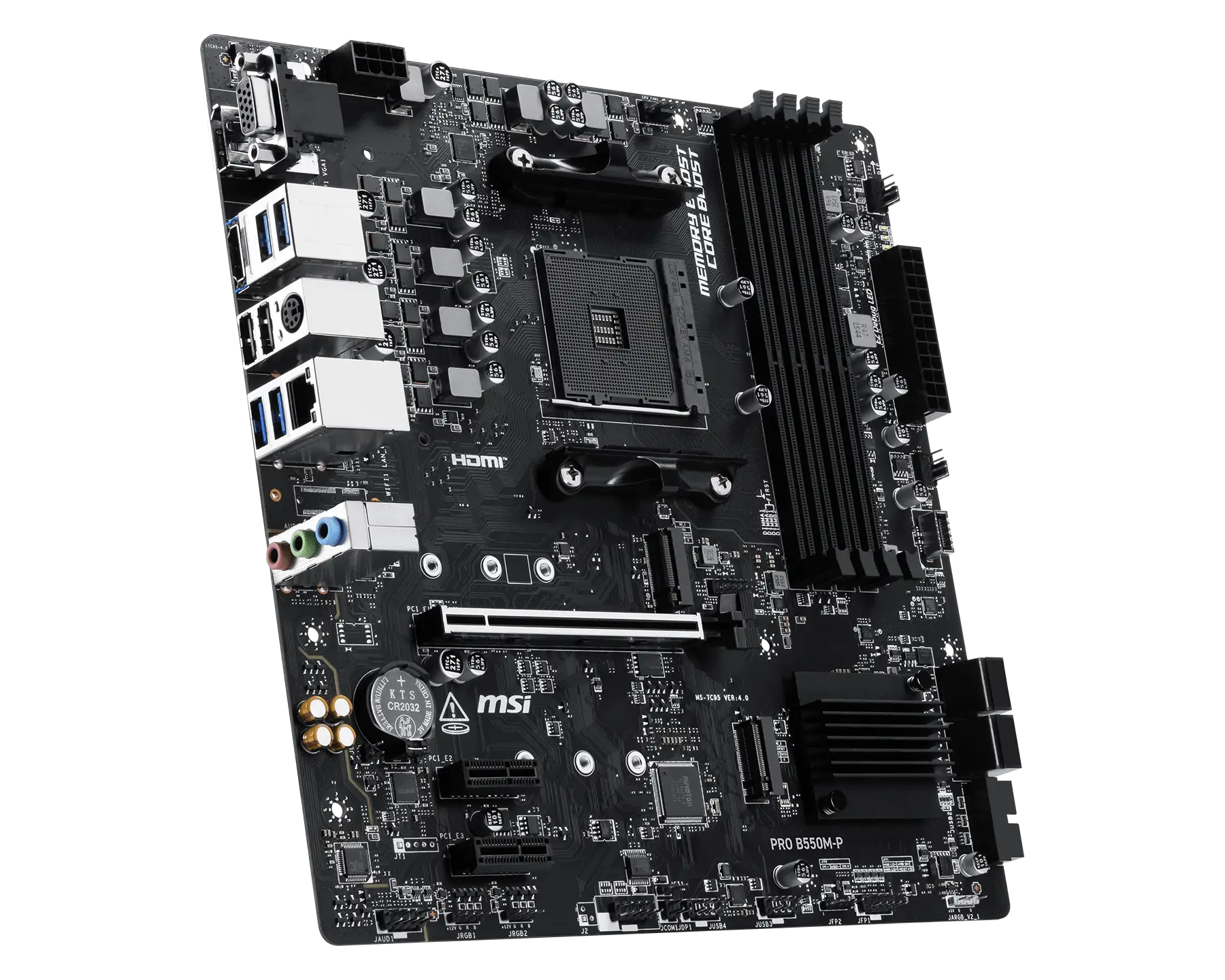

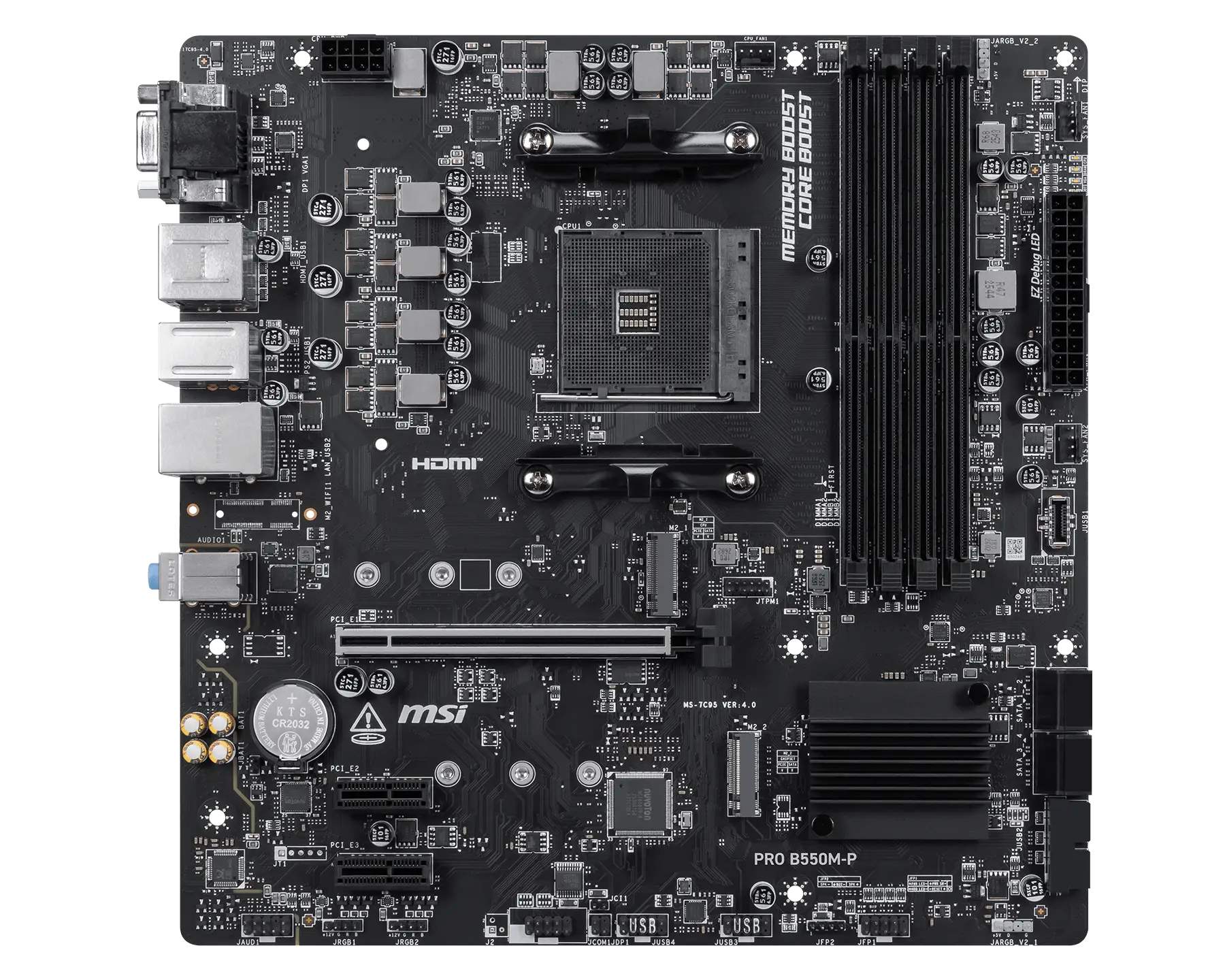

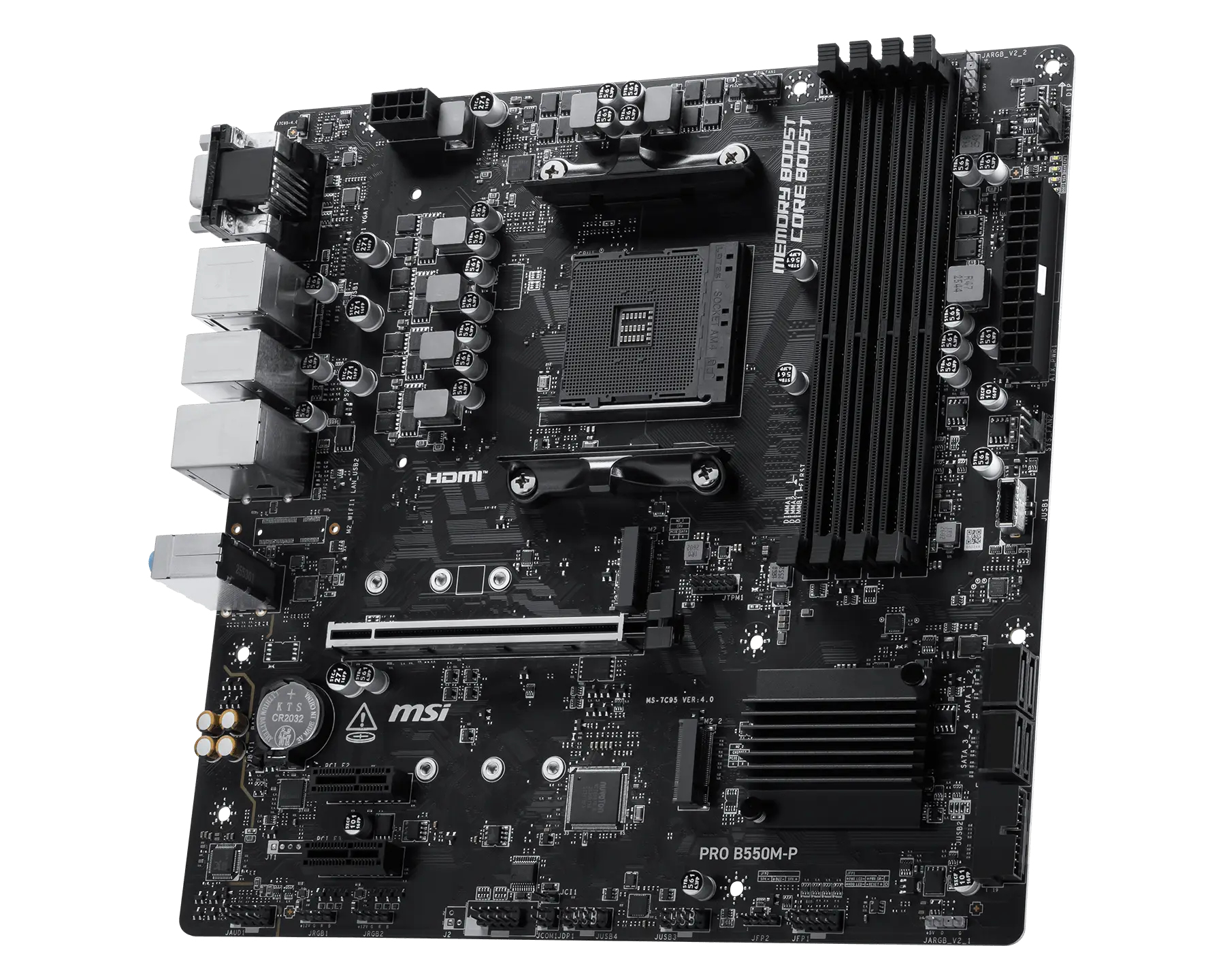

MSI PRO B550M-P scheda madre AMD B550 Socket AM4 ATX

* Non viene rilasciata alcuna garanzia su eventuali errori delle descrizioni tecniche aggiuntive né sull'accuratezza delle foto, da intendersi come un mero servizio informativo
Processore
Produttore processore
The manufacturer that produced the processor.
AMD
Presa per processore
Mechanical component(s) that provides mechanical and electrical connections between a microprocessor and a printed circuit board (PCB). This allows the processor to be replaced without soldering.
Socket AM4
Processori compatibili
A processor which is compatible with this device
AMD Ryzen 5000 Series, AMD Ryzen 4000 Series, AMD Ryzen 3000 Series
Socket Processori supportati
The sockets (plugs) for processors that are supported (can be used) by the device.
Socket AM4
Memoria
Tipi di memoria supportati
Types of memory which can be used with the product.
DDR4-SDRAM
Numero di slot di memoria
The total number of available sockets for installing memory modules.
4
tipo di slot di memoria
A memory slot
DIMM
Canali di memoria
The number of communication paths between the memory controller and the RAM, which affects data transfer bandwidth (e.g., Dual-channel).
Dual-channel
Compatibilità ECC
Specifies whether the product supports Error Correction Code (ECC) memory, which detects and fixes data corruption (e.g., ECC, non-ECC).
Non-ECC
Velocità di memoria supportate
Memory clock speed is the time it takes for a computer to complete basic operations. It refers to the computer's processing speed and is measured in hertz. It is however not such a reliable measure of a computer's speed as it doesn't take into account other factors like RAM and cache size.
2667,2800,2933,3000,3066,3200,3466,3600,3733,3866,4000,4133,4266,4400 MHz
Velocità di clock della memoria supportata (max)
The maximum frequency at which the system memory can operate, measured in MHz.
4400 MHz
RAM massima supportata
The maximum internal memory which is available in the product.
128 GB
Senza buffer
Indicates whether the device supports the use of unbuffered memory modules.
Sì
Controller di archiviazione
Tipi di unità di archiviazione supportate
The type of storage drives the device is compatible with.
HDD & SSD
Interfacce dell'unità di archiviazione supportate
The physical and logical connection standards supported for connecting storage drives to the system (e.g., M.2 or SATA).
M.2, PCI Express 4.0, PCI Express 3.0, SATA
Numero di hard drive supportati
The total number of hard drives that can be used in/with this product.
4
numero di dispositivi di archivio supportati
How many storage drives can be fit into the product at once.
2
Supporto RAID
The device uses RAID
Sì
Livelli RAID
RAID is a storage technology that combines multiple disk drive components into a logical unit for the purposes of data redundancy and performance improvement. Data is distributed across the drives in one of several ways
0, 1, 10
Grafica
Tecnologia di processo parallela
Parallel processing technology is the simultaneous use of more than one CPU or processor core to execute a program or multiple computational threads. Ideally
Non supportato
Scheda grafica integrata
Graphics hardware which is built into the motherboard or CPU
Sì
I/O interni
Connettori USB 2.0
The end of a cable with a USB 2.0 connector. USB 2.0 was released in April 2000 (now called "Hi-Speed")
4
Connettori USB 3.2 Gen 1 (3.1 Gen 1)
This is a connector (normally attached to a cable) for USB 3.0. USB 3.0 is the second major revision of the Universal Serial Bus (USB) standard for computer connectivity. First introduced in 2008
6
Connettori USB 3.2 Gen 2 (3.1 Gen 2)
The total number of internal or external ports supporting the USB 3.2 Gen 2 (3.1 Gen 2) standard for high-speed data transfer.
1
Numero di connettori SATA III
Serial ATA (Advanced Technology Attachment) (SATA) is a computer bus interface that connects host bus adapters to mass storage devices such as hard disk drives and optical drives. SATA III (revision 3.x) interface
4
Numero di connettori SATA
The total number of Serial ATA (SATA) ports available on the unit for connecting storage devices.
4
Numero totale di connettori SATA
The total count of Serial ATA interfaces available for connecting storage devices or optical drives.
4
Connettore pannello audio frontale
Indicates whether the product has a dedicated header to connect audio jacks located on the front panel of a chassis.
Sì
Connettore del pannello anteriore
Indicates whether the product has a dedicated header for connecting the chassis front panel buttons and LEDs.
Sì
Connettore ventola CPU
Indicates whether the product has a dedicated header for connecting a CPU cooling fan.
Sì
Connettore d'intrusione del telaio
Indicates whether the product has a dedicated header to connect a switch that detects when the case has been opened.
Sì
Connettore TPM
Indicates whether the product features a dedicated header for connecting a Trusted Platform Module (TPM) security chip.
Sì
Connettore LED RGB
Indicates whether the product features a dedicated pin header for connecting and controlling RGB LED lighting components.
Sì

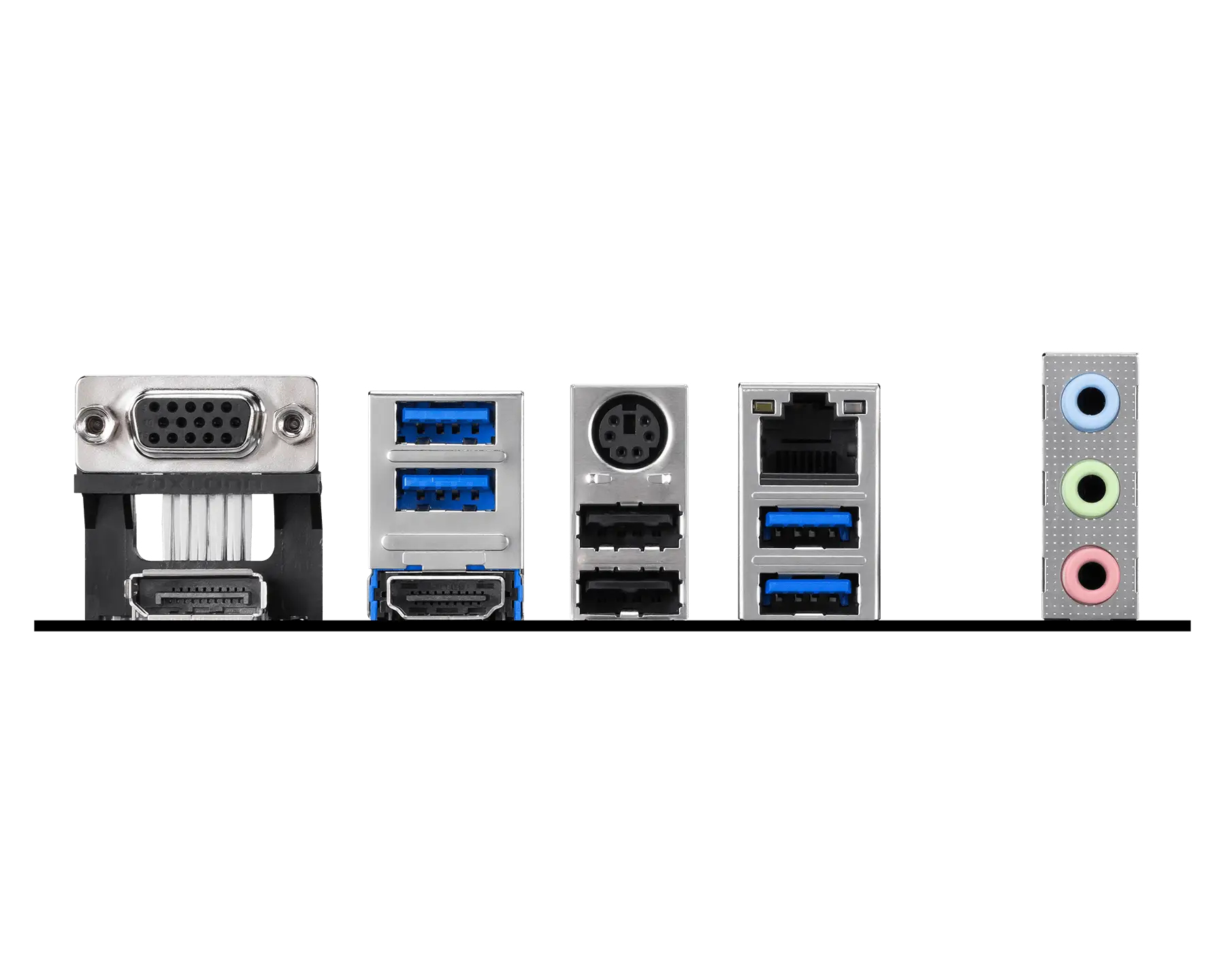

Pannello posteriore porte I/O
Quantità porte USB 2.0
La porta USB 2.0 ha una velocità di trasmissione data di 480 Mbps ed è diversamente compatibile con la porta USB 1.1 .Si può collegare qualsiasi tipo di dispositivo periferico a questi.
6
Quantità di porte USB 3.2 Gen 1 (3.1 Gen 1) di tipo A
The total number of available USB 3.2 Gen 1 (formerly 3.1 Gen 1) Type-A connection ports on the device.
6
Quantità di porte USB 3.2 Gen 1 (3.1 Gen 1) di tipo C
Number of USB 3.0 (3.1 Gen 1) ports with Type-C connector. USB 3.0 (3.1 Gen 1) is USB interface version which supports transfer rate up to 5 Gbit/s (SuperSpeed). USB Type-C connector has symmetrical design architecture and compatible with Thunderbolt 3 interface.
1
Quantità porte Ethernet LAN (RJ-45)
Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.
1
Quantità porte VGA (D-Sub)
Number of VGA (D-Sub) ports (connecting interfaces) in the device. The VGA (D-Sub) connector is a 15 pin connector between a computer and a monitor. It was first introduced in 1987 by IBM.
1
Quantità porte HDMI
The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor
1
Versione HDMI
The specific release version of the High-Definition Multimedia Interface standard supported by the device (e.g. 1.3 or 2.0).
2.1
Quantità DisplayPorts
Number of DisplayPorts. A DisplayPort is a digital display interface developed by the Video Electronics Standards Association (VESA). The interface is primarily used to connect a video source to a display device such as a computer monitor
1
versione DisplayPort
The specific release version of the DisplayPort standard supported by the device (e.g., 1.2 or 1.4).
1.4
Collegamento in rete
Collegamento ethernet LAN
An Ethernet LAN (Local Area Network) interface is present
Sì
Tipo di interfaccia Ethernet
The maximum data transfer rate supported by the network port, expressed in gigabits per second (e.g., 10 Gigabit Ethernet).
Gigabit Ethernet
Controller LAN
The specific hardware chip or chipset that manages the network interface and handles data transmission (e.g. Intel I219-V).
Realtek 8111H
Wi-Fi
Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves.
No
Caratteristiche
Chipset scheda madre
The chipset connects the microprocessor to the rest of the motherboard.
AMD B550
Chip audio
The specific integrated circuit or hardware component responsible for processing audio signals (e.g., ALC3287-CGT).
Realtek ALC897
Sistema audio
An audio output channel is an electric circuit which acts as a path for a signal produced by a device. A device may have several audio output channels.
7.1 canali
Componente per
What this product is used as a part of (component for).
PC
Fattore di forma scheda madre
Design of the motherboard (ATX
ATX
Famiglia di chipset per scheda madre
The category of motherboard chipset e.g. Intel
AMD
Slot espansione
Slot PCI Express x1 (Gen 3.x)
The number of available PCI Express x1 slots supporting generation 3.x specifications for expanding the device's functionality.
2
PCI Express x16 slots
The total number of available PCI Express x16 expansion slots for installing high-bandwidth components.
1
Slot PCI Express x16 (Gen 3.x)
Places where PCI Express x16 (Gen 3.x) are placed inside and connected to the computer motherboard.
1
Slot PCI Express x16 (Gen 4.x)
The number of available expansion slots supporting the PCI Express 4.0 standard with x16 lane connectivity.
1
Numero di slot di M.2 (M)
The total number of available M.2 M-key slots for installing high-speed storage devices or expansion cards.
2
Dimensione massima del primo connettore Key M.2
The maximum physical dimensions of the M.2 module supported by the first slot, typically expressed as width and length (e.g., 2280).
2280
Generazione massima PCI Express del primo M.2
The maximum supported PCI Express version for the first M.2 slot (e.g., 4.0).
4.0
Dimensione massima del secondo connettore Key M.2
The maximum physical dimensions supported for the second M.2 slot, typically expressed as width and length (e.g. 2280).
2280
Generazione massima PCI Express del secondo M.2
The maximum supported PCI Express version for the second M.2 slot (e.g., 4.0).
3.0
BIOS
Tipo BIOS
The BIOS (Basic Input/Output System) initializes and tests system hardware components
UEFI AMI
Dimensione memoria BIOS
The total storage capacity of the basic input/output system chip, measured in Mbit.
256 Mbit
Versione ACPI
The version of the Advanced Configuration and Power Interface standard supported by the device to manage power consumption and hardware configuration (e.g., 2.0).
6.0
Versione System management BIOS (SMBIOS)
The specific version of the System Management BIOS standard supported by the firmware (e.g. 2.7), which defines how hardware information is communicated to the operating system.
2.8
Dimensioni e peso
Larghezza
The measurement or extent of something from side to side.
243,8 mm
Profondità
The distance from the front to the back of something.
243,8 mm
Dettagli tecnici
Garanzia legale
The minimum period, established by law, during which the seller is liable for defective or non-conforming goods. Duration, conditions, and terminology vary by jurisdiction (e.g. minimum 2 years in the EU under Directive 2019/771, implied warranty under the UCC in the US, Consumer Rights Act 2015 in the UK).
3 anno/i
MSI PRO B550M-P. Produttore processore: AMD, Presa per processore: Socket AM4, Processori compatibili: AMD Ryzen 5000 Series, AMD Ryzen 4000 Series, AMD Ryzen 3000 Series. Tipi di memoria supportati: DDR4-SDRAM, RAM massima supportata: 128 GB, tipo di slot di memoria: DIMM. Interfacce dell'unità di archiviazione supportate: M.2, PCI Express 4.0, PCI Express 3.0, SATA, Tipi di unità di archiviazione supportate: HDD & SSD, Livelli RAID: 0, 1, 10. Tipo di interfaccia Ethernet: Gigabit Ethernet, Controller LAN: Realtek 8111H. Componente per: PC, Fattore di forma scheda madre: ATX, Famiglia di chipset per scheda madre: AMD
