TL-SX3008F

Ean : 6935364006457

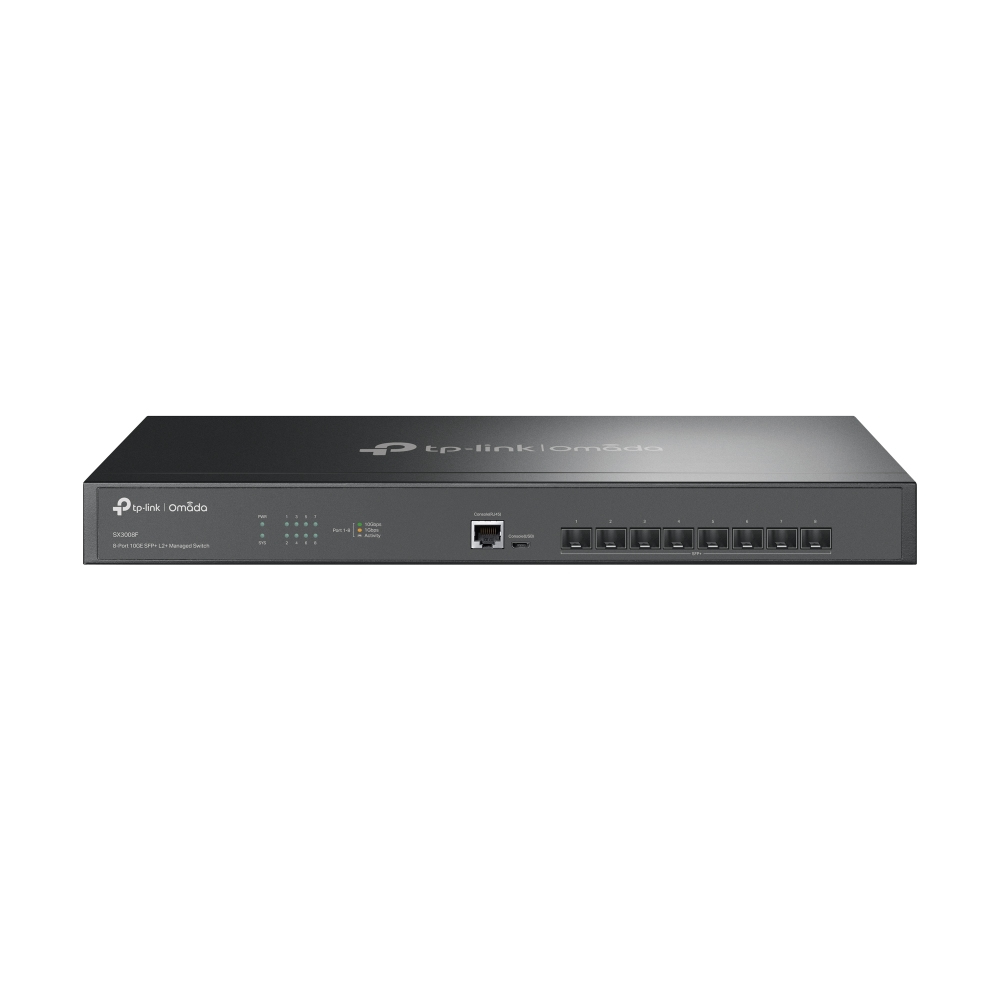

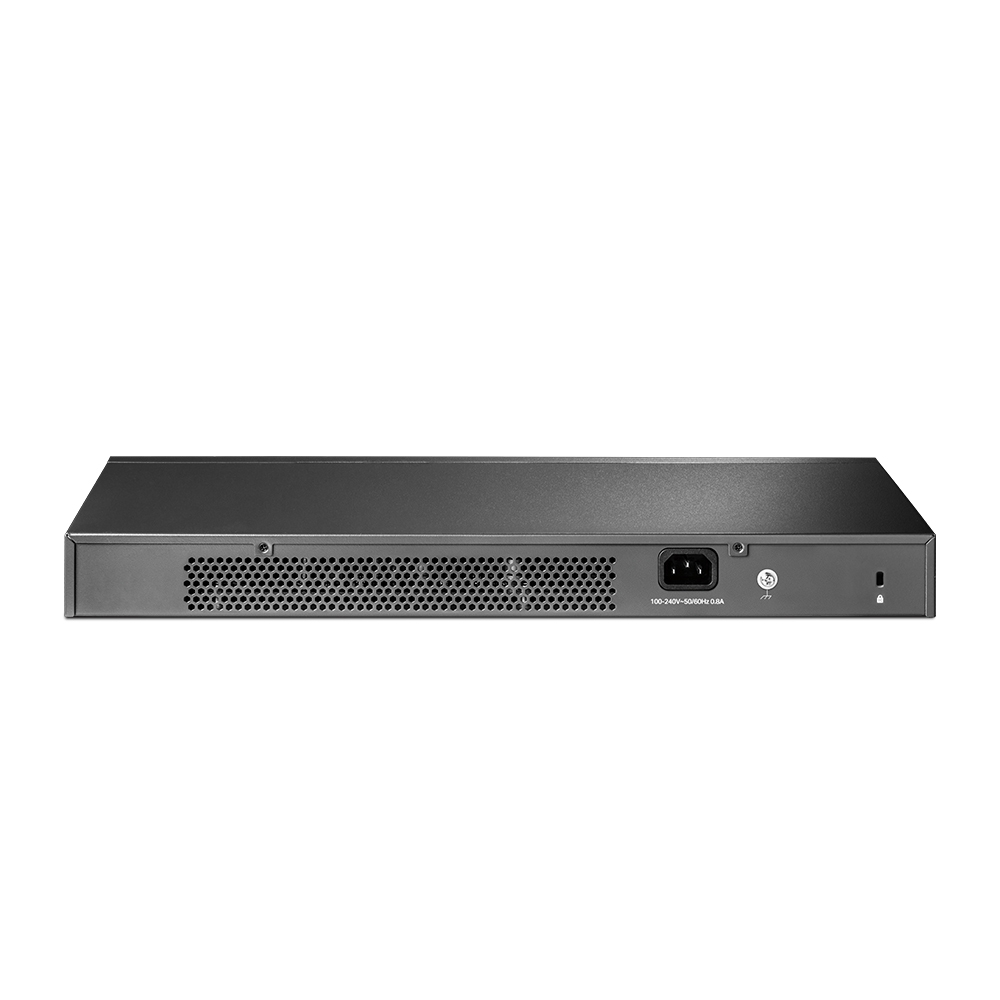

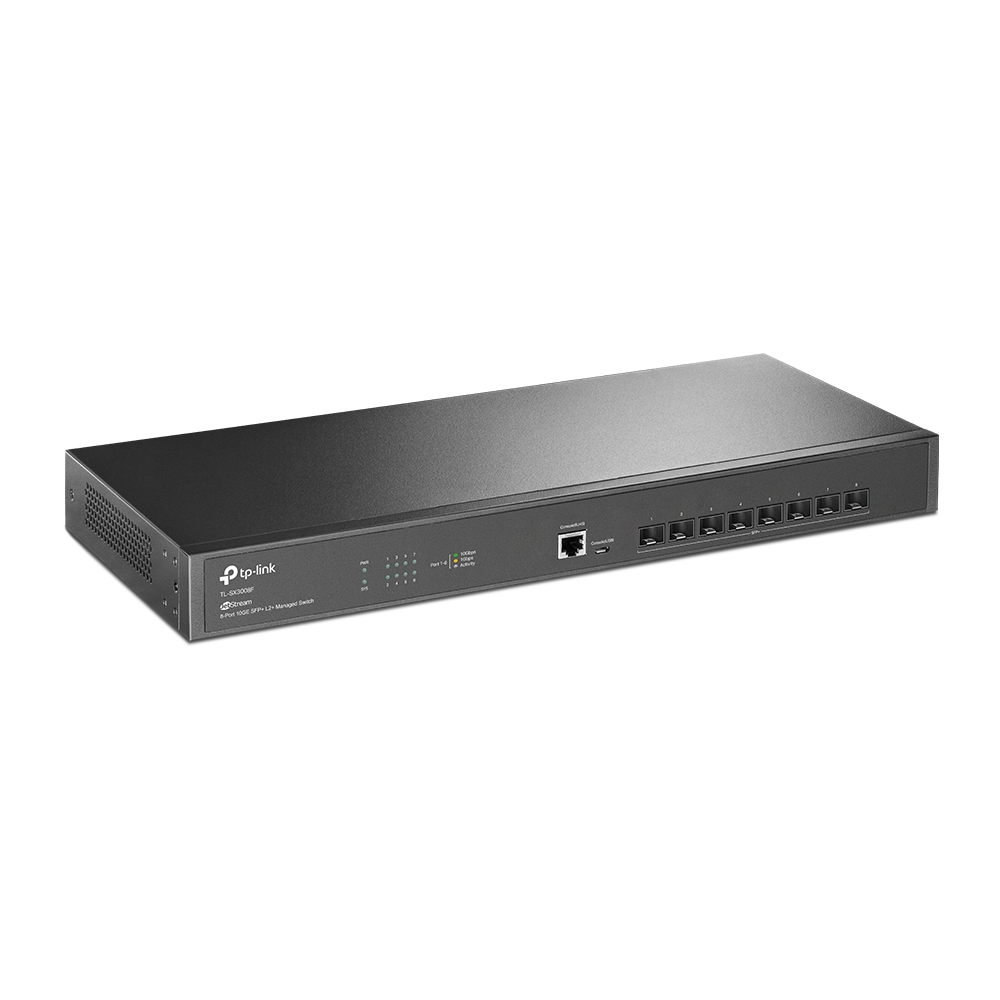

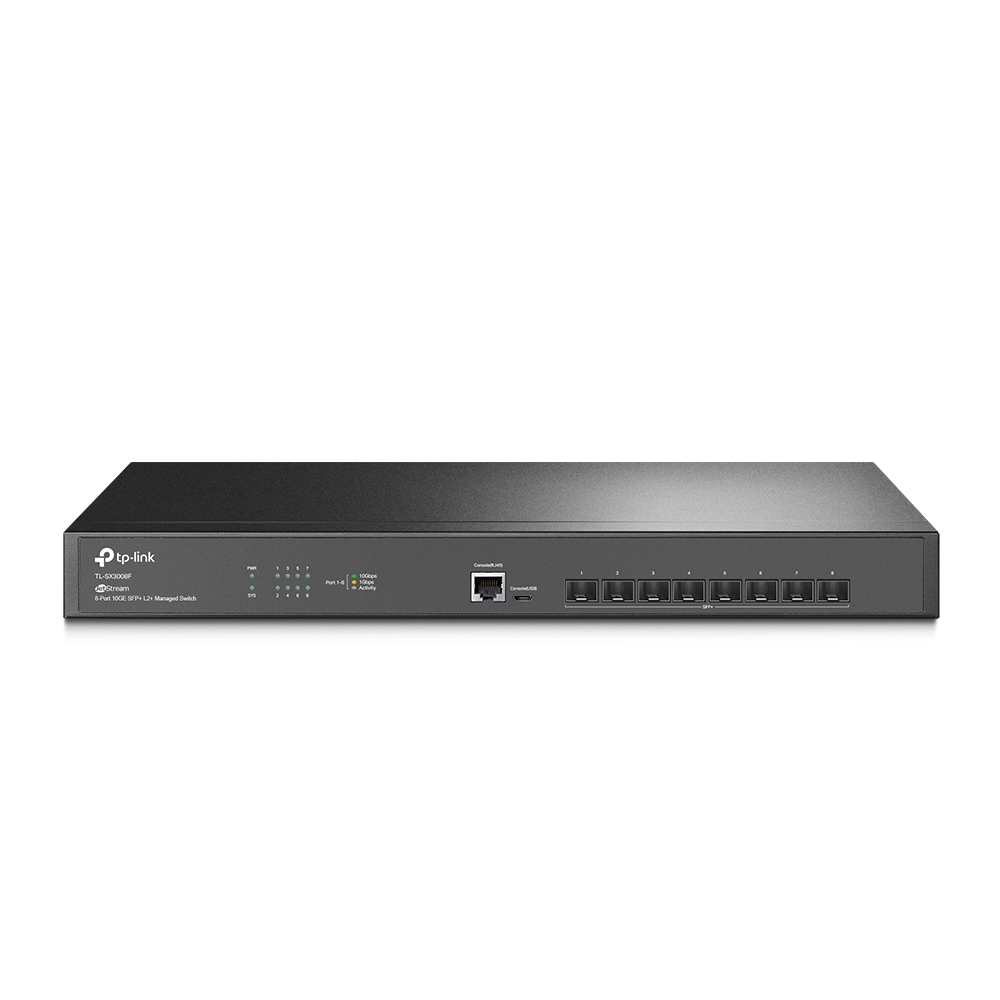

TP-Link TL-SX3008F switch di rete Gestito L2/L3 Nessuno Nero

* Non viene rilasciata alcuna garanzia su eventuali errori delle descrizioni tecniche aggiuntive né sull'accuratezza delle foto, da intendersi come un mero servizio informativo
Caratteristiche di gestione
Tipo interruttore
What switch device has
Gestito
Livello del commutatore
A network switch is a computer networking device that links networking segments. A switch has different layers
L2/L3
Supporto qualità del servizio (QoS)
Gestione web-based
Using a website/web application to manage something.
Gestito in Cloud
Classificazione del traffico
Ispezione ARP
Configurazione dei parametri di localizzazione (CLI)
Registro evento di sistema
Supporto MIB
RFC2925, RFC2618, RFC2620, RFC2021, RFC2819, RFC2674, RFC1493, RFC1643, RFC2233, RFC1213
Connettività
Tipo di porte RJ-45
The type/category of basic switching RJ-45 Ethernet ports (sockets).
Nessuno
Quantità di slot del modulo SFP+
8
Console port
RJ-45/micro-USB
Connettore di alimentazione
Jack DC-ingresso
Collegamento in rete
Standard di rete
The way in which the network is working
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3x
Supporto 10G
The product can use Oracle 10G
Mirroring della porta
Routing IP
Supporto controllo flusso
Raggruppamento link
Controllo Broadcast storm
Limitazione della velocità
Apertura albero di protocollo
Blocco Head-of-line (HOL)
VLAN support
A Virtual Local Area Network (VLAN) consists of a group of computers and switches that can be physically distributed over different networks and buildings
Caratteristiche della LAN virtuale
Private VLAN, Protocol-based VLAN, Voice VLAN
Numero di VLA
4000
Trasmissione dati
Capacità di commutazione
The data transfer capacity of the switch per second.
160 Gbit/s
tasso di inoltro
119,04 Mpps
Dimensioni tavola MAC
The MAC address is the 'Media Access Control Address'. It is a unique address given to a network interface controller (NIC) in a device. A MAC address table shows the addresses in a table format.
32000 voci
Numero di code
8
Instradamento statico
Supporto Jumbo Frames
Frame Jumbo
9000
Sicurezza
Caratteristiche DHCP
DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping
Lista di controllo accesso (ACL)
Funzione IGMP snooping
Algoritmi di sicurezza supportati
Security algorithms are used to provide authentication
HTTPS, SSH, SSH-2, SSL/TLS
Filtri MAC address
Security access control method whereby the 48-bit address assigned to each network card is used to determine access to the network. MAC addresses are uniquely assigned to each card
Porta di sicurezza statica
Supporto SSH/SSL
Protezione contro i loop back
Protezione/Filtro BPDU
Funzione IP-MAC-Port binding
Autenticazione
VLAN Guest, Autenticazione basata su MAC, Autenticazione basata su Port, Autenticazione basata sul web
tipo di autenticazione
Authentification means proving identity to gain access to sometheng. There are various types of authentification exist e.g. access card
Mini Stilo AAA, TACACS+
Algoritmi di pianificazione di coda
SP, WRR+SP, Weighted Round Robin (WRR)
Funzioni Multicast
Supporto multicast
Snooping del Multicast listener discovery (MLD)
Y
Protocolli
Protocolli di gestione
SNMPv1/v2c/v3, SNTP
Caratteristiche IPv4 e IPv6
IPv6 Telnet, IPv6 ping, IPv6 tracert
Design
Montaggio rack
The type of mounting that can position devices in a shelving system (rack).
Colore del prodotto
The colour e.g. red
Nero
Indicatori LED
Certificazione
CE, FCC, RoHS
Gestione energetica
Alimentazione
What is providing power for the product e.g. mains electricity.
AC
Fonte di alimentazione inclusa
There is a power supply with this product.
Tensione di ingresso AC
The voltage of the AC electricity that is inputted into the product.
100 - 240 V
Frequenza di ingresso AC
50 - 60 Hz
Consumo energetico (max)
The maximum amount of power used by the device.
15,46 W
Power over Ethernet (PoE)
Supporto Power over Ethernet (PoE)
The device supports Power over Ethernet (PoE)
No
Condizioni ambientali
Intervallo temperatura di funzionamento
The minimum and maximum temperatures at which the product can be safely operated.
0 - 45 °C
Intervallo di temperatura
The minimum and maximum temperatures at which the product can be safely stored.
-40 - 70 °C
Range di umidità di funzionamento
10 - 90%
Umidità
5 - 90%
Dissipazione del calore
Il calore misurato in unità di misura inglese per ore, generate dal fornitore di energia
52,75 BTU/h
Dimensioni e peso
Larghezza
The measurement or extent of something from side to side.
440 mm
Profondità
The distance from the front to the back of something.
180 mm
Altezza
Altezza del prodotto
44 mm
Dati su imballaggio
Cavi inclusi
AC
Guida rapida
Instructions
Manuale dell'utente
Tipo di imballo
The type of product package e.g. box.
Scatola
Kit di montaggio per rack
Larghezza imballo
The distance from one side of the packaging to the other.
528 mm
Profondità imballo
The distance from the front to the back of the packaging.
250 mm
Altezza imballo
The distance from the top to the bottom of the packaging.
80 mm
Peso dell'imballo
Weight of the packaged product.
2,37 kg
Dati logistici
Codice del Sistema Armonizzato (SA)
85176990
TP-Link TL-SX3008F. Tipo interruttore: Gestito, Livello del commutatore: L2/L3. Tipo di porte RJ-45: Nessuno, Console port: RJ-45/micro-USB. Dimensioni tavola MAC: 32000 voci, Capacità di commutazione: 160 Gbit/s. Standard di rete: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3x. Connettore di alimentazione: Jack DC-ingresso. Montaggio rack
