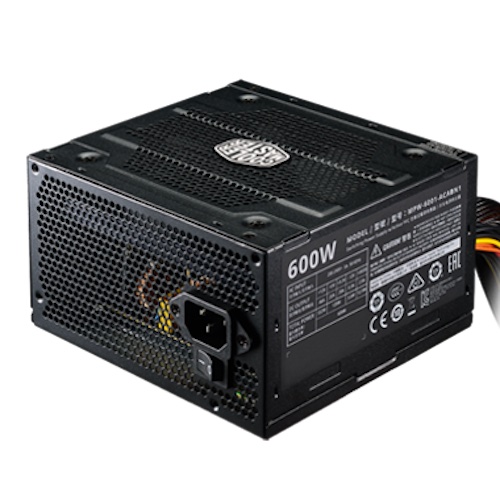

Cooler Master ELITE NEX 230V 600W Power Supply, Non-Modular, 120mm Sleeve Fan, xx EPS, xx SATA, xx PCI-E, xx Molex
NEX LEVEL POWER
THE ELITE NEX POWER SUPPLY UNIT IS A DEPENDABLE CHOICE FOR ENTRY LEVEL USERS AND SYSTEM INTEGRATORS. THE QUIET 120MM FAN, ACTIVE PFC AND 3 YEARS WARRANTY DELIVER A COMPLETE POWER SOLUTION AT A POPULAR PRICE.
ACTIVE PFC + DUAL FORWARD TOPOLOGY DESIGN
CONSTRUCTED WITH THE ACTIVE PFC FOR HIGH-END POWER SUPPLY AND THE DUAL FORWARD TOPOLOGY DESIGN, IT CAN NOT ONLY REDUCE INTERFERENCE AND INCREASE POWER QUALITY, BUT REDUCE POWER LOSS TO INCREASE EFFICIENCY.
HIGH TEMPERATURE RESISTANCE
IT'S CAPABLE OF OPERATING AT 40°C UNDER FULL LOAD, ALLOWING A LONGER LIFESPAN IN WARMER ENVIRONMENTS.
PEAK POWER TOLERANCE
THIS UNIT CAN RELIABLY PUSH AN ADDITIONAL 100W AT PEAK POWER LOAD FOR UP TO 20 SECONDS
75% EFFICIENCY
THE POWER SUPPLY MAINTAINS AN AVERAGE EFFICIENCY OF 75% AT TYPICAL LOADS.
Specifiche
Model MPW-6001-ACBN-B
ATX Version ATX 12V Ver. 2.41
PFC Active PFC
Input Voltage 200-240V
Input Current 4.5A
Input Frequency 50-60Hz
Dimensions (L x W x H) 140 x 150 x 86 mm
Fan Size 120mm
Fan Bearing Sleeve Fan
Efficiency ≥ 75% @ Typical Load
ErP 2014 Lot 3 Yes
Operating Temperature 0-40°C
Power Good Signal 100 - 500 ms
Hold Up Time ≥10ms at 100% load
MTBF >100,000 Hours
Protections OVP, OPP, SCP, UVP, OTP,
Inrush Protection
Regulatory TUV, CE, CCC, EAC, UKCA
ATX 24 Pin Connectors 1
EPS 4+4 Pin Connectors 1
SATA Connectors 5
Peripheral 4 Pin Connectors 3
PCI-e 6+2 Pin Connectors 2
Series Elite Series
80 Plus None 80 PLUS
Modular Non Modular
Wattage 600W |
|
