TPL

OC400

Ean : 8885020620023

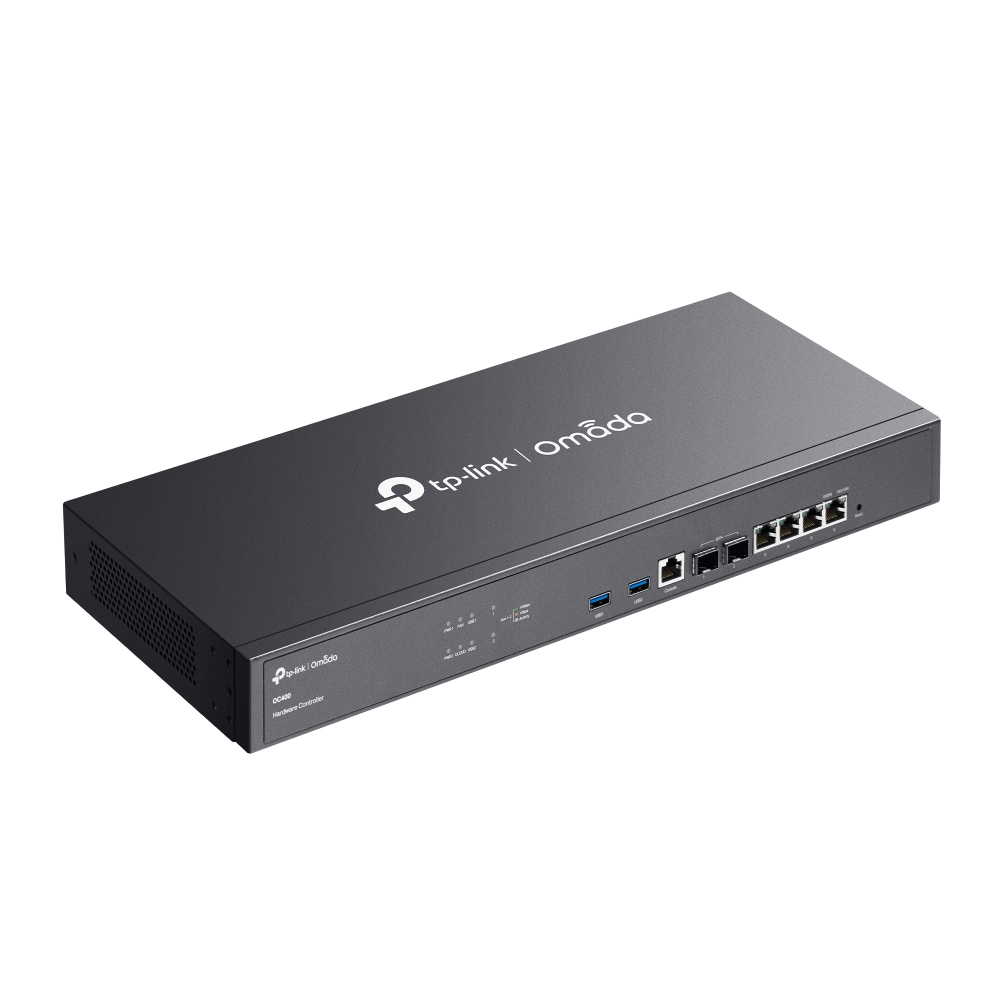

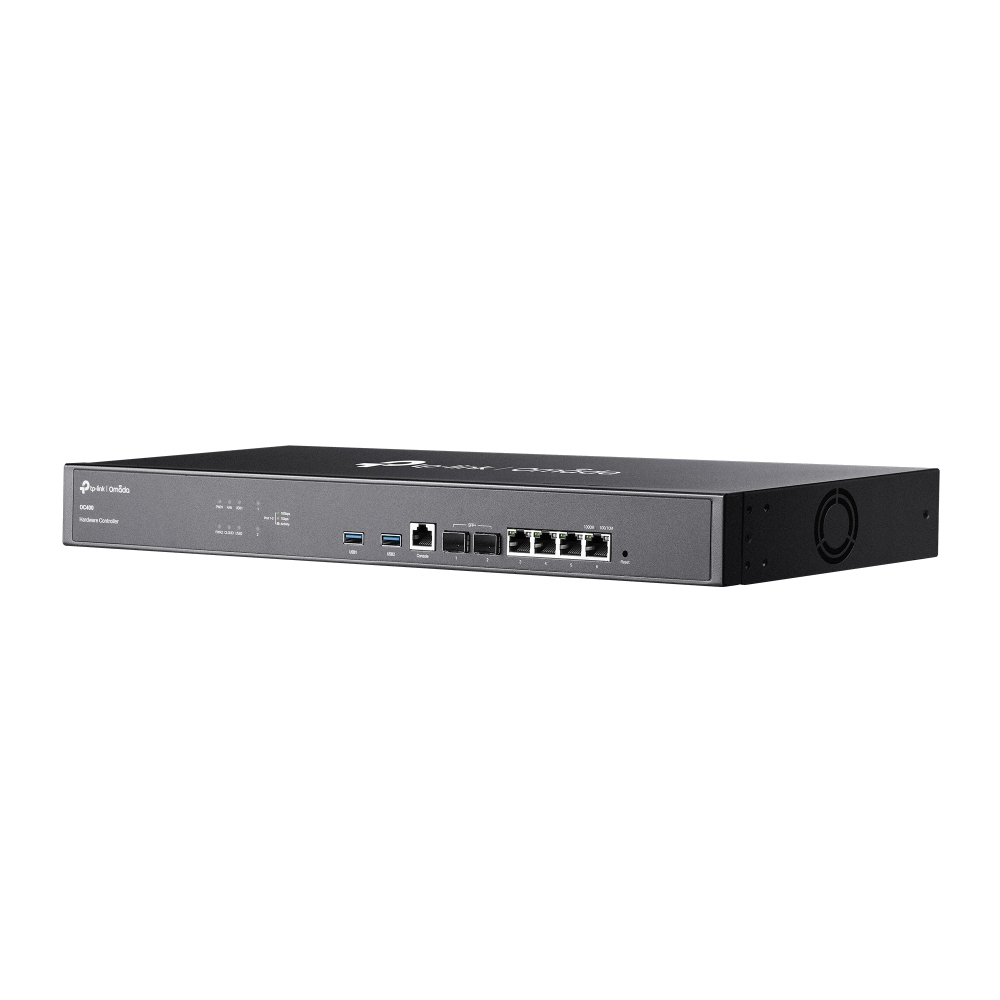

TP-Link Omada OC400 gateway/controller 1000, 10000 Mbit/s

* Non viene rilasciata alcuna garanzia su eventuali errori delle descrizioni tecniche aggiuntive né sull'accuratezza delle foto, da intendersi come un mero servizio informativo
Design
Colore del prodotto
The colour e.g. red
Grigio
Indicatori LED
The specific status lights available on the unit to provide visual feedback on its current state or connectivity (e.g., AC input, ACT, or Access).
Sì
Prestazione
Unità del display di controllo
Indicates whether the device includes a built-in display unit for monitoring and control purposes.
No
Processore integrato
Whether or not a processor is built into the device.
Sì
RAM installata
La capacità della memoria misurata in megabyte installata nell' hardware del sistema
8 MB
Tipo di RAM
The type of internal memory such as RAM
DDR4
Capacità SSD
The Solid State Drive's data storage capacity.
32 GB
Memoria flash
The total amount of non-volatile storage available for firmware or data, measured in MB.
4 MB
Collegamento in rete
Velocità trasferimento Ethernet LAN
The different speed levels of the Ethernet LAN connection.
1000,10000 Mbit/s
Connettività
Quantità di porte USB 3.2 Gen 1 (3.1 Gen 1) di tipo A
The total number of available USB 3.2 Gen 1 (formerly 3.1 Gen 1) Type-A connection ports on the device.
2
Numero di porte della console
The total number of physical ports available for direct console access to the device for configuration and management purposes.
1
Quantità porte Ethernet LAN (RJ-45)
Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.
4
Jack DC-in
The socket/plug where the DC electricity supply connects to the device.
Sì
Numero di porte SFP+
The total number of SFP+ slots available for high-speed fiber optic or direct attach copper connectivity.
2
Caratteristiche di gestione
Piattaforma di gestione
The software or cloud-based system used to configure, monitor, and control the device (e.g., Cloudpath or EPICenter Network Management Software).
Omada App
Performance management
Indicates whether the product includes tools or software to monitor, analyze, and optimize operational efficiency and resource utilization.
• Up to 1,000 Omada access points, 200 Omada switches, and 100 Omada routers* • Up to 30,000 clients
Tasto reset
Indicates whether the device features a dedicated button to restore the unit to its original factory settings.
Sì
Gestione energetica
Voltaggio di ingresso
The voltage (V) which is required to power the product.
100 - 240 V
Frequenza di ingresso
The frequency (Hz) which is required to power the product.
50/60 Hz
Dimensioni e peso
Larghezza
The measurement or extent of something from side to side.
440 mm
Profondità
The distance from the front to the back of something.
180 mm
Altezza
Altezza del prodotto
44 mm
Contenuto dell'imballo
Cavi inclusi
Specifies the types and quantities of connection cables provided with the product (e.g., 3.5 mm to 3.5 mm or SATA).
LAN (RJ-45), Potenza
Guida d'installazione rapida
Indicates whether a simplified, fast-start manual is included with the product.
Sì
Contenuto della confezione
A list of all items and documentation included in the box (e.g. Quick Start Guide).
• Omada Hardware Controller OC400 • Quick Installation Guide • Ethernet Cable • Power Cord • Rackmount Kit
Condizioni ambientali
Intervallo temperatura di funzionamento
The minimum and maximum temperatures at which the product can be safely operated.
0 - 40 °C
Intervallo di temperatura
The minimum and maximum temperatures at which the product can be safely stored.
-40 - 70 °C
Range di umidità di funzionamento
The range of relative humidity, expressed as a percentage, within which the device can function correctly without damage or performance loss.
10 - 90%
Umidità
The permissible range of relative humidity, expressed as a percentage, within which the product can be stored without damage.
5 - 90%
Sostenibilità
Conformità alla sostenibilità
Indicates whether the product complies with established environmental and sustainability standards.
Sì
Certificati di sicurezza
Certificati di conformità
Indicates which regulatory, safety, and environmental standards the product complies with, as verified by recognized authorities or certification bodies.
CE, Federal Communications Commission (FCC), RoHS
TP-Link Omada OC400. Colore del prodotto: Grigio. RAM installata: 8 MB, Tipo di RAM: DDR4, Capacità SSD: 32 GB. Velocità trasferimento Ethernet LAN: 1000,10000 Mbit/s. Piattaforma di gestione: Omada App, Performance management: • Up to 1,000 Omada access points, 200 Omada switches, and 100 Omada routers* • Up to 30,000 clients. Voltaggio di ingresso: 100 - 240 V, Frequenza di ingresso: 50/60 Hz
