ASU

90MB1E70-M0EAY0

Ean : 4711387025741

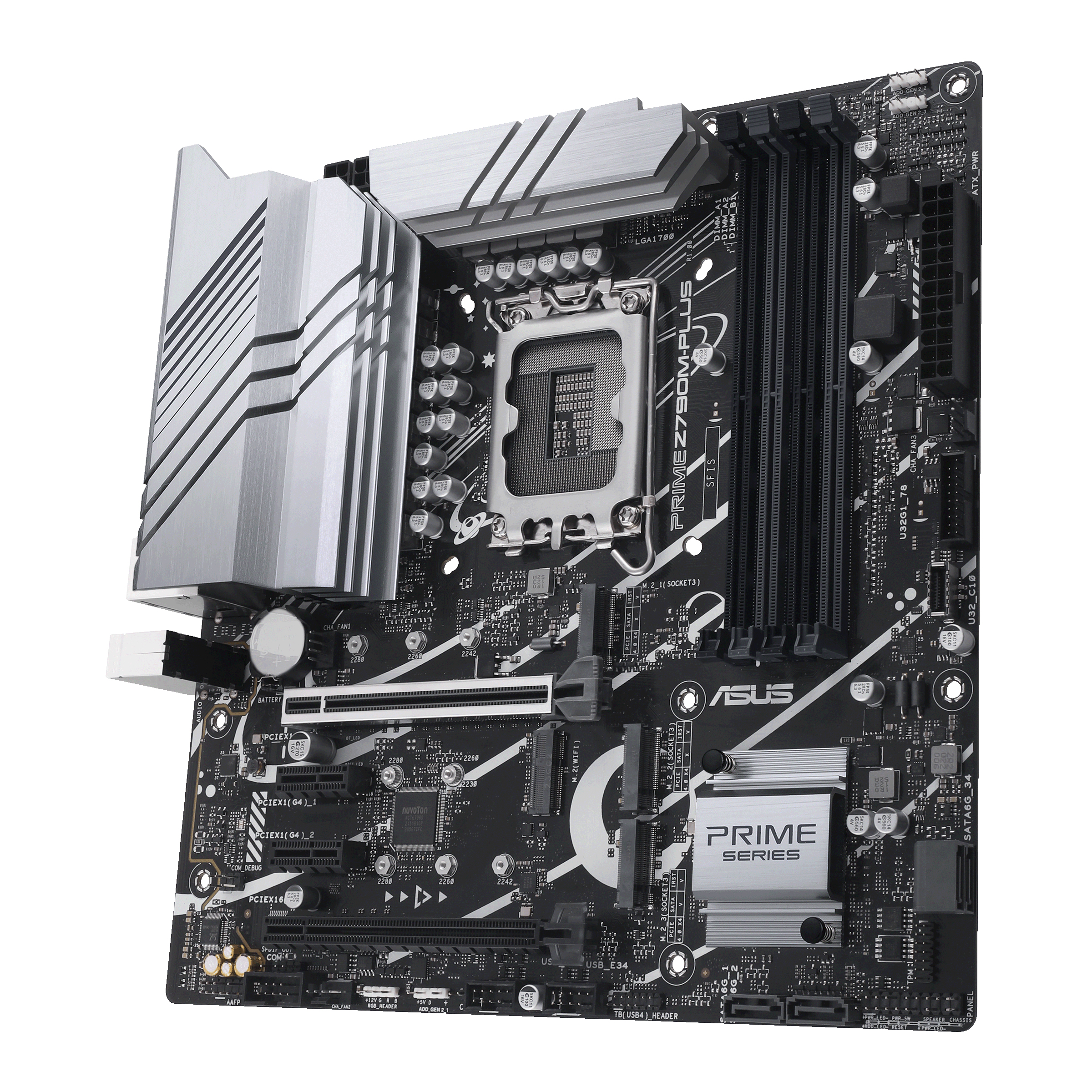

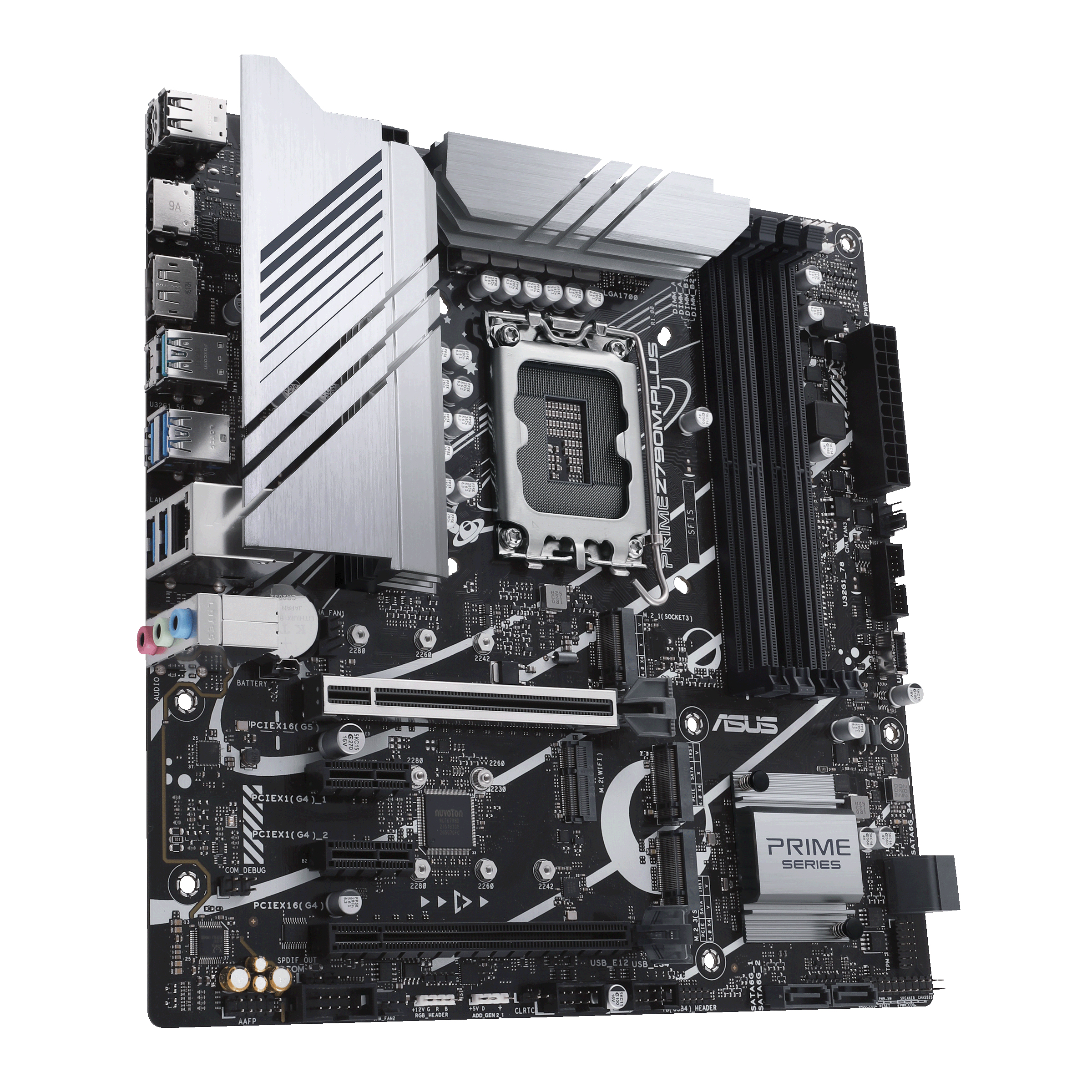

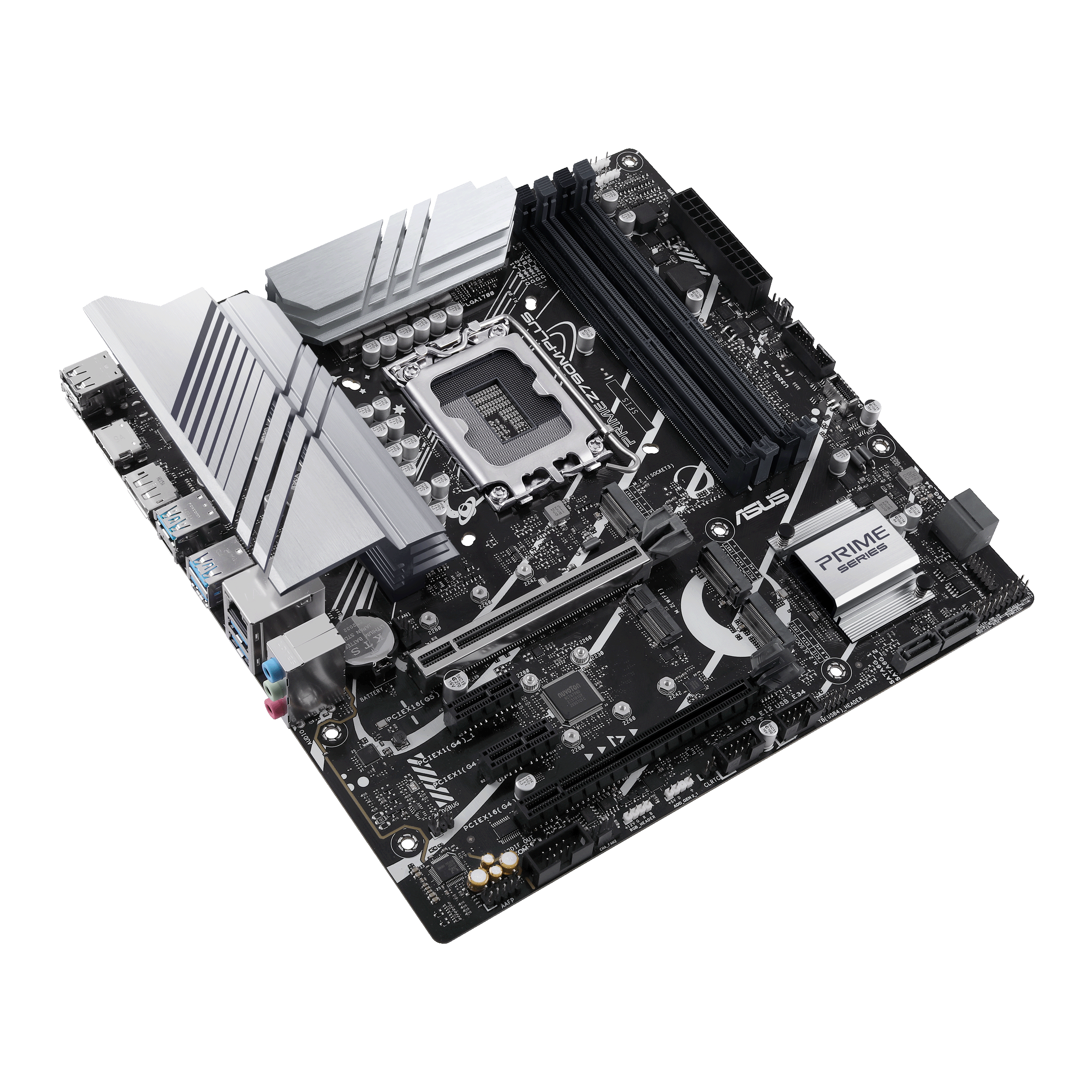

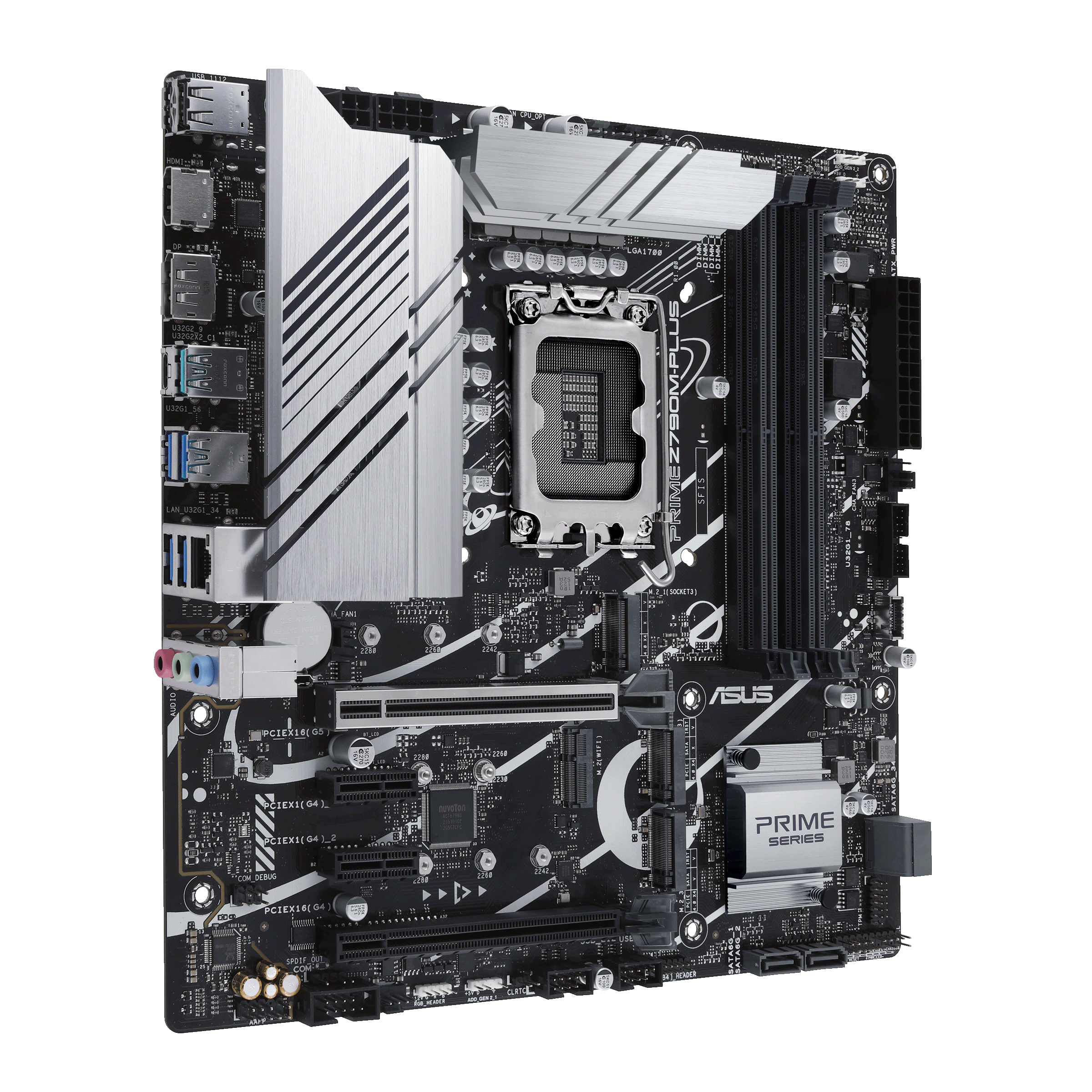

ASUS PRIME Z790M-PLUS Intel Z790 LGA 1700 micro ATX

Cpu Intel Core i5-14600KF processore 5.3 GHz 24 MB Intel® Smart Cache LGA1700 senza grafica integrata versione Box

PROCESSORI

Cpu Intel Core i5-14600KF processore 5.3 GHz 24 MB Intel® Smart Cache LGA1700 senza grafica integrata versione Box
Cpu Intel Core Ultra 9 285 processore 36 MB SmartCache versione Box e unlocked

PROCESSORI

Cpu Intel Core Ultra 9 285 processore 36 MB SmartCache versione Box e unlocked

Intel Core i3-14100 processore 12 MB Cache intelligente Scatola

PROCESSORI

Intel Core i3-14100 processore 12 MB Cache intelligente Scatola
Intel Core i5-12400 processore 18 MB Cache intelligente Scatola

PROCESSORI

Intel Core i5-12400 processore 18 MB Cache intelligente Scatola
Intel Core i5-12400F processore 18 MB Cache intelligente Scatola

PROCESSORI

Intel Core i5-12400F processore 18 MB Cache intelligente Scatola
Intel Core i5-12600KF processore 20 MB Cache intelligente Scatola

PROCESSORI

Intel Core i5-12600KF processore 20 MB Cache intelligente Scatola
Intel Core i5-14400 processore 20 MB Cache intelligente Scatola

PROCESSORI

Intel Core i5-14400 processore 20 MB Cache intelligente Scatola
Intel Core i5-14400F processore 20 MB Cache intelligente Scatola

PROCESSORI

Intel Core i5-14400F processore 20 MB Cache intelligente Scatola
Intel Core i5-14500 processore 24 MB Cache intelligente Box

PROCESSORI

Intel Core i5-14500 processore 24 MB Cache intelligente Box
Intel Core i7-12700 processore 25 MB Cache intelligente Scatola

PROCESSORI

Intel Core i7-12700 processore 25 MB Cache intelligente Scatola
Intel Core i7-12700F processore 25 MB Cache intelligente Scatola

PROCESSORI

Intel Core i7-12700F processore 25 MB Cache intelligente Scatola
Intel Core i7-12700K processore 25 MB Cache intelligente Scatola

PROCESSORI

Intel Core i7-12700K processore 25 MB Cache intelligente Scatola
Intel Core i7-12700KF processore 25 MB Cache intelligente Scatola

PROCESSORI

Intel Core i7-12700KF processore 25 MB Cache intelligente Scatola
Intel Core i7-14700 processore 33 MB Cache intelligente Scatola

PROCESSORI

Intel Core i7-14700 processore 33 MB Cache intelligente Scatola
Intel Core i7-14700F processore 33 MB Cache intelligente Scatola

PROCESSORI

Intel Core i7-14700F processore 33 MB Cache intelligente Scatola
Intel Core i7-14700K processore 33 MB Cache intelligente Scatola

PROCESSORI

Intel Core i7-14700K processore 33 MB Cache intelligente Scatola
Intel Core i7-14700KF processore 33 MB Cache intelligente Scatola

PROCESSORI

Intel Core i7-14700KF processore 33 MB Cache intelligente Scatola
Intel Core i9-12900KF processore 30 MB Cache intelligente Scatola

PROCESSORI

Intel Core i9-12900KF processore 30 MB Cache intelligente Scatola
Intel Core i9-14900 processore 36 MB Cache intelligente Scatola

PROCESSORI

Intel Core i9-14900 processore 36 MB Cache intelligente Scatola
Intel Core i9-14900F processore 36 MB Cache intelligente Scatola

PROCESSORI

Intel Core i9-14900F processore 36 MB Cache intelligente Scatola
Intel Core i9-14900K processore 36 MB Cache intelligente Scatola

PROCESSORI

Intel Core i9-14900K processore 36 MB Cache intelligente Scatola
Intel Core i9-14900KF processore 36 MB Cache intelligente Scatola

PROCESSORI

Intel Core i9-14900KF processore 36 MB Cache intelligente Scatola
Intel Core Ultra 5 245K processore 24 MB Cache intelligente Scatola

PROCESSORI

Intel Core Ultra 5 245K processore 24 MB Cache intelligente Scatola
Intel Core Ultra 5 245KF processore 24 MB Cache intelligente Scatola

PROCESSORI

Intel Core Ultra 5 245KF processore 24 MB Cache intelligente Scatola
Intel Core Ultra 7 265K processore 30 MB Cache intelligente Scatola

PROCESSORI

Intel Core Ultra 7 265K processore 30 MB Cache intelligente Scatola
Intel Core Ultra 7 265KF processore 30 MB Cache intelligente Scatola

PROCESSORI

Intel Core Ultra 7 265KF processore 30 MB Cache intelligente Scatola
Intel Core Ultra 9 285K processore 36 MB Cache intelligente Scatola

PROCESSORI

Intel Core Ultra 9 285K processore 36 MB Cache intelligente Scatola
* Non viene rilasciata alcuna garanzia su eventuali errori delle descrizioni tecniche aggiuntive né sull'accuratezza delle foto, da intendersi come un mero servizio informativo
Processore
Produttore processore
The manufacturer that produced the processor.
Intel
Presa per processore
Mechanical component(s) that provides mechanical and electrical connections between a microprocessor and a printed circuit board (PCB). This allows the processor to be replaced without soldering.
LGA 1700
Processori compatibili
A processor which is compatible with this device
Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold
Memoria
Tipi di memoria supportati
Types of memory which can be used with the product.
DDR5-SDRAM
Numero di slot di memoria
The total number of available sockets for installing memory modules.
4
tipo di slot di memoria
A memory slot
DIMM
Canali di memoria
The number of communication paths between the memory controller and the RAM, which affects data transfer bandwidth (e.g., Dual-channel).
Dual-channel
Compatibilità ECC
Specifies whether the product supports Error Correction Code (ECC) memory, which detects and fixes data corruption (e.g., ECC, non-ECC).
Non-ECC
Velocità di memoria supportate
Memory clock speed is the time it takes for a computer to complete basic operations. It refers to the computer's processing speed and is measured in hertz. It is however not such a reliable measure of a computer's speed as it doesn't take into account other factors like RAM and cache size.
4800,5000,5200,5400,5600,5800,6000,6200,6400,6600,6800,7000,7200 MHz
RAM massima supportata
The maximum internal memory which is available in the product.
128 GB
Senza buffer
Indicates whether the device supports the use of unbuffered memory modules.
Sì
Controller di archiviazione
Tipi di unità di archiviazione supportate
The type of storage drives the device is compatible with.
HDD & SSD
Interfacce dell'unità di archiviazione supportate
The physical and logical connection standards supported for connecting storage drives to the system (e.g., M.2 or SATA).
M.2, PCI Express 4.0, SATA
Numero di hard drive supportati
The total number of hard drives that can be used in/with this product.
3
numero di dispositivi di archivio supportati
How many storage drives can be fit into the product at once.
4
Supporto RAID
The device uses RAID
Sì
Livelli RAID
RAID is a storage technology that combines multiple disk drive components into a logical unit for the purposes of data redundancy and performance improvement. Data is distributed across the drives in one of several ways
0, 1, 5, 10
Grafica
Scheda grafica integrata
Graphics hardware which is built into the motherboard or CPU
No
I/O interni
Connettori USB 2.0
The end of a cable with a USB 2.0 connector. USB 2.0 was released in April 2000 (now called "Hi-Speed")
2
Connettori USB 3.2 Gen 1 (3.1 Gen 1)
This is a connector (normally attached to a cable) for USB 3.0. USB 3.0 is the second major revision of the Universal Serial Bus (USB) standard for computer connectivity. First introduced in 2008
2
Numero di connettori SATA III
Serial ATA (Advanced Technology Attachment) (SATA) is a computer bus interface that connects host bus adapters to mass storage devices such as hard disk drives and optical drives. SATA III (revision 3.x) interface
4
Connettore uscita S/PDIF
Indicates whether the product features a Sony/Philips Digital Interface (S/PDIF) port for transmitting digital audio signals.
Sì
Connettore audio
Indicates whether the product features a dedicated interface for connecting audio devices.
Sì
Connettore ATX (24-PIN)
Indicates whether the product features a 24-pin ATX power connector for main power supply connectivity.
Sì
Alimentazione ventola
Indicates whether the product has a dedicated connector for powering the system fan.
Sì
Connettore ventola CPU
Indicates whether the product has a dedicated header for connecting a CPU cooling fan.
Sì
Numero di connettori ventola chassis
The total number of internal headers available to connect case cooling fans (e.g. 3 or 4).
3
Connettori periferiche (Molex) (4-pin)
White 4-pinned connector used to connect a peripheral to the power supply.
1
Connettore di potenza EPS (8-Pin)
Indicates whether the product features an 8-pin EPS connector to provide dedicated power to the CPU.
Sì
Numero di connettori COM
The total number of serial communication ports available on the device (e.g. 2).
1
Intestazioni della porta seriale
The number of internal connection points available on the board to attach a serial port cable.
1
Porte Thunderbolt
The number of internal connection points available on the board to attach an optional Thunderbolt expansion card.
1
Connettore con potenza 12V
Indicates whether the product has a dedicated 12V power connector for additional power delivery.
Sì
Connettore LED RGB
Indicates whether the product features a dedicated pin header for connecting and controlling RGB LED lighting components.
Sì

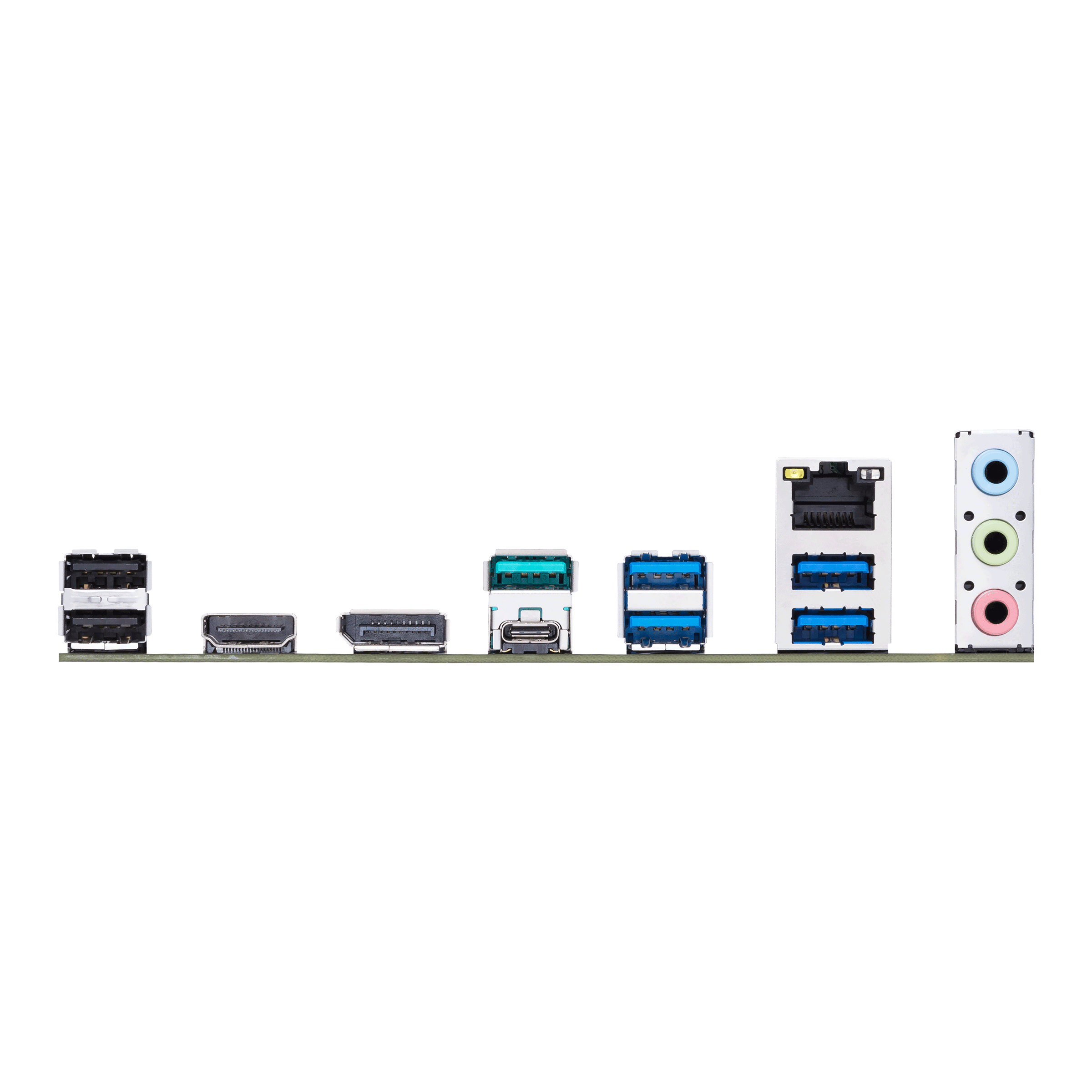

Pannello posteriore porte I/O
Quantità porte USB 2.0
La porta USB 2.0 ha una velocità di trasmissione data di 480 Mbps ed è diversamente compatibile con la porta USB 1.1 .Si può collegare qualsiasi tipo di dispositivo periferico a questi.
4
Quantità di porte USB 3.2 Gen 1 (3.1 Gen 1) di tipo A
The total number of available USB 3.2 Gen 1 (formerly 3.1 Gen 1) Type-A connection ports on the device.
4
Quantità di porte USB 3.2 Gen 1 (3.1 Gen 1) di tipo C
Number of USB 3.0 (3.1 Gen 1) ports with Type-C connector. USB 3.0 (3.1 Gen 1) is USB interface version which supports transfer rate up to 5 Gbit/s (SuperSpeed). USB Type-C connector has symmetrical design architecture and compatible with Thunderbolt 3 interface.
1
Quantità di porte USB 3.2 Gen 2 (3.1 Gen 2) di tipo A
The total number of USB Type-A ports that support the 3.2 Gen 2 (formerly 3.1 Gen 2) standard for high-speed data transfer.
1
Quantità di porte USB 3.2 Gen 2x2 Tipo C
The number of USB Type-C ports supporting the USB 3.2 Gen 2x2 standard for high-speed data transfer.
1
Quantità porte Ethernet LAN (RJ-45)
Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.
1
Quantità porte HDMI
The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor
1
Versione HDMI
The specific release version of the High-Definition Multimedia Interface standard supported by the device (e.g. 1.3 or 2.0).
2.0
Quantità DisplayPorts
Number of DisplayPorts. A DisplayPort is a digital display interface developed by the Video Electronics Standards Association (VESA). The interface is primarily used to connect a video source to a display device such as a computer monitor
1
versione DisplayPort
The specific release version of the DisplayPort standard supported by the device (e.g., 1.2 or 1.4).
1.4
Uscite per cuffie
Number of sockets /ports where headphones are connected.
1
Ingresso di linea
Indicates whether the device has a dedicated input port for receiving audio signals from an external source.
Sì
Microfono, spinotto d'ingresso
The socket where a microphone is connected to the device.
Sì
Quantità porte COM
The number of serial communication ports available on the unit for connecting peripheral devices.
1
Connettore USB
The type of USB connector/port that this product has.
USB tipo A
Collegamento in rete
Collegamento ethernet LAN
An Ethernet LAN (Local Area Network) interface is present
Sì
Tipo di interfaccia Ethernet
The maximum data transfer rate supported by the network port, expressed in gigabits per second (e.g., 10 Gigabit Ethernet).
Gigabit Ethernet
Wi-Fi
Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves.
No
Caratteristiche
Chipset scheda madre
The chipset connects the microprocessor to the rest of the motherboard.
Intel Z790
Sistema audio
An audio output channel is an electric circuit which acts as a path for a signal produced by a device. A device may have several audio output channels.
7.1 canali
Colore del prodotto
The colour e.g. red
Alluminio, Nero
Componente per
What this product is used as a part of (component for).
PC
Fattore di forma scheda madre
Design of the motherboard (ATX
micro ATX
Famiglia di chipset per scheda madre
The category of motherboard chipset e.g. Intel
Intel
Tipologia alimentazione
What the power source is.
ATX
Sistema operativo Windows supportato
Windows vesions wich can be used with the device.
Windows 10, Windows 11
Slot espansione
Slot PCI Express x1 (Gen 4.x)
The number of available PCI Express x1 expansion slots supporting the Generation 4.x standard.
2
Slot PCI Express x16 (Gen 4.x)
The number of available expansion slots supporting the PCI Express 4.0 standard with x16 lane connectivity.
1
Slot PCI Express x16 (Gen 5.x)
The number of available PCI Express x16 slots supporting the 5.0 generation standard for high-speed component connectivity.
1
Numero di slot di M.2 (M)
The total number of available M.2 M-key slots for installing high-speed storage devices or expansion cards.
3
BIOS
Tipo BIOS
The BIOS (Basic Input/Output System) initializes and tests system hardware components
UEFI AMI
Dimensione memoria BIOS
The total storage capacity of the basic input/output system chip, measured in Mbit.
192 Mbit
Dimensioni e peso
Larghezza
The measurement or extent of something from side to side.
244 mm
Profondità
The distance from the front to the back of something.
244 mm
Contenuto dell'imballo
Cavi inclusi
Specifies the types and quantities of connection cables provided with the product (e.g., 3.5 mm to 3.5 mm or SATA).
SATA
Software forniti
Software distributed with another product such as a piece of computer hardware or other electronic device
ASUS Exclusive Software Armoury Crate - Aura Sync - Fan Xpert 4 (with AI Cooling II) - Power Saving AI Suite 3 - TurboV EVO - DIGI+ VRM - PC Cleaner ASUS CPU-Z Norton 360 Deluxe (60 Days Free Trial) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode
ASUS PRIME Z790M-PLUS. Produttore processore: Intel, Presa per processore: LGA 1700, Processori compatibili: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,.... Tipi di memoria supportati: DDR5-SDRAM, RAM massima supportata: 128 GB, tipo di slot di memoria: DIMM. Interfacce dell'unità di archiviazione supportate: M.2, PCI Express 4.0, SATA, Tipi di unità di archiviazione supportate: HDD & SSD, Livelli RAID: 0, 1, 5, 10. Connettore USB: USB tipo A. Tipo di interfaccia Ethernet: Gigabit Ethernet
logo Focelda
Focelda
Sedi Operative
Registrazione
SEGUICI SUI SOCIAL

C.F. e numero di iscrizione al Registro Imprese di Napoli 05083420637 - P.I. 01388761213 – REA n. NA-415989 / Capitale sociale € 3.000.000,00 i.v. Sede Legale: Via Napoli, 157 - 80013 Casalnuovo (NA)
