MSI

MEG AI1300P PCIE5

Ean : 4719072970260

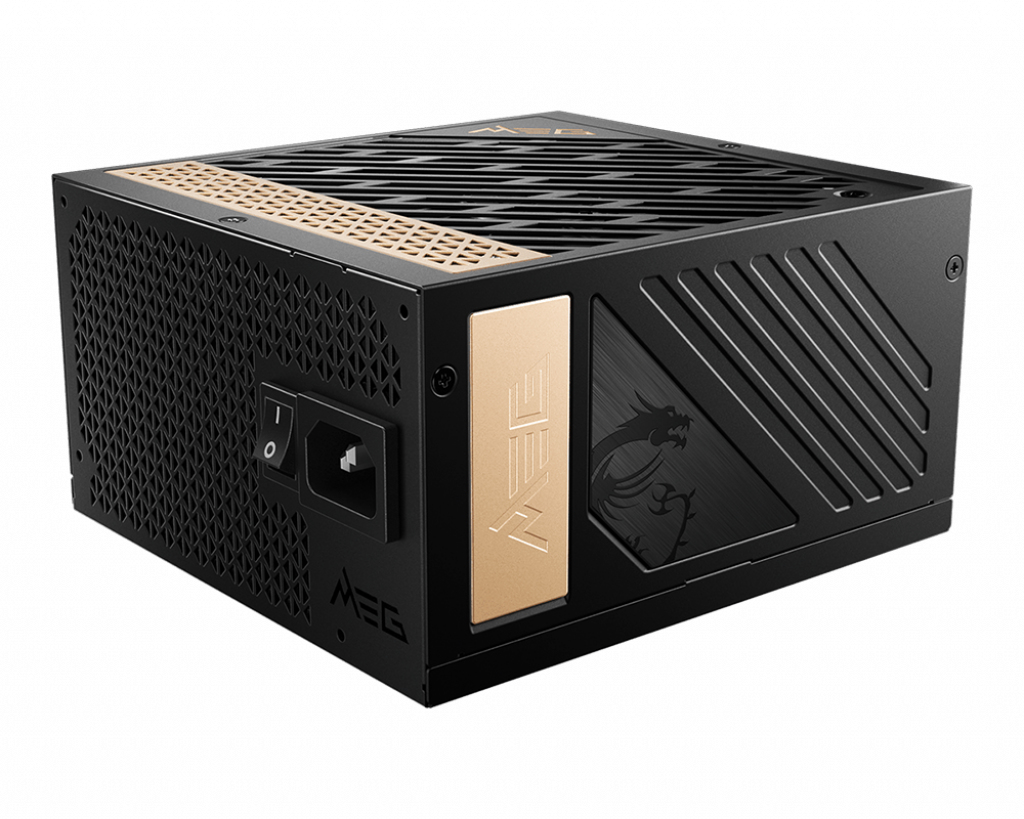

MSI MEG AI1300P PCIE5 alimentatore per computer 1300 W 24-pin ATX ATX Nero

* Non viene rilasciata alcuna garanzia su eventuali errori delle descrizioni tecniche aggiuntive né sull'accuratezza delle foto, da intendersi come un mero servizio informativo
Gestione energetica
Potenza totale
The total power that is needed by the device
1300 W
Tensione di ingresso AC
The voltage of the AC electricity that is inputted into the product.
100 - 240 V
Frequenza di ingresso AC
The range of alternating current frequencies the device can accept from the power source, measured in hertz (e.g., 45 - 65).
50 - 60 Hz
Corrente di ingresso massima (@110V)
The maximum electrical current the device draws from the power source when operated at a voltage of 110V, measured in amperes.
10 A
Corrente di ingresso massima (@220V)
The maximum amount of electrical current the device draws from the power source when operated at 220V, measured in A.
5 A
Tipo di correttore del fattore di potenza (PFC)
Specifies the method used by the power supply unit to improve the efficiency of power delivery and reduce harmonic distortion, such as Active or Passive PFC.
Attivo
Potenza combinata (+3.3V)
The total power output available on the +3.3V rail, measured in W.
130 W
Potenza combinata (+12V)
The total maximum power output available across all +12V rails, measured in W.
1300 W
Potenza combinata (+5V)
The total maximum power output available on the +5V rail, measured in W.
130 W
Corrente massima di uscita (+3.3V)
The maximum electrical current that can be delivered on the +3.3V rail, measured in A.
25 A
Corrente massima di uscita (+12V)
The maximum electrical current that the device can provide on the +12V rail, measured in A.
25 A
Corrente massima di uscita (+5V)
The maximum electrical current that can be delivered on the +5V rail, measured in A.
25 A
Corrente massima di uscita (-12V)
The maximum electrical current that can be delivered on the -12V rail, measured in A.
0,3 A
Efficienza
The percentage of input energy that is converted into useful work or output, rather than being lost as heat or waste (e.g. 92%).
92%
Funzionalità di protezione dell'alimentazione
Features that protect the device against power problems e.g. overload.
Sovracorrente, Sovralimentazione, Sovraccarico, Cortocircuito, Sotto carico

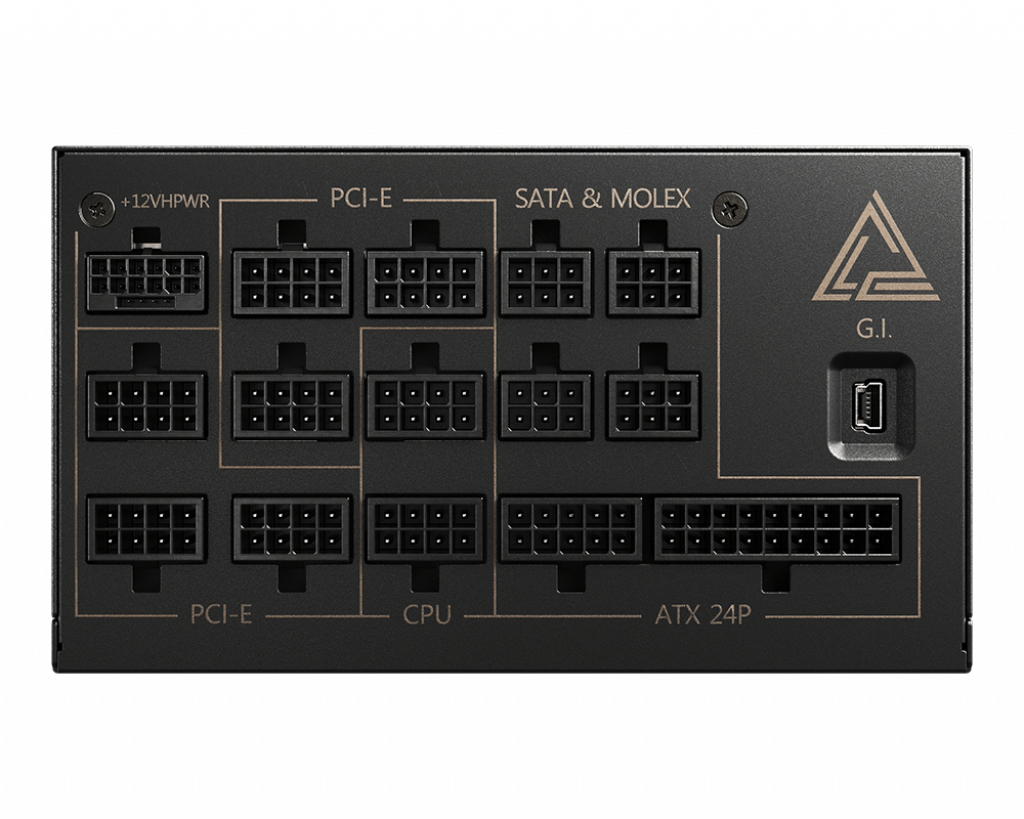

Connettività
Connettore scheda madre
The way in which the motherboard is connected to the power supply.
24-pin ATX
Lunghezza del cavo di alimentazione della scheda madre
The total length of the cable used to provide power to the motherboard, measured in mm.
60 cm
Numero di connettori SATA
The total number of available power interfaces designed to provide electricity to SATA-compatible drives or peripherals.
16
Connettori periferiche (Molex) (4-pin)
White 4-pinned connector used to connect a peripheral to the power supply.
4
Connettore di potenza EPS (8-Pin)
Indicates whether the product features an 8-pin EPS connector to provide dedicated power to the CPU.
Sì
Connettore di alimentazione EPS (4+4 poli)
Indicates whether the product includes a 4+4 pin power connector.
Sì
Connettori PCI Express (6+2 pin)
The number of 6+2 pin power connectors available to provide dedicated power to high-performance expansion cards.
8
Connettore ATX (24-PIN)
Indicates whether the product features a 24-pin ATX power connector for main power supply connectivity.
Sì
Connettore floppy disc
Indicates whether the product has a dedicated power or data interface for connecting a 3.5" floppy disk drive.
Sì
Connettore PCI Express
Indicates whether the product features a PCI Express interface.
Sì

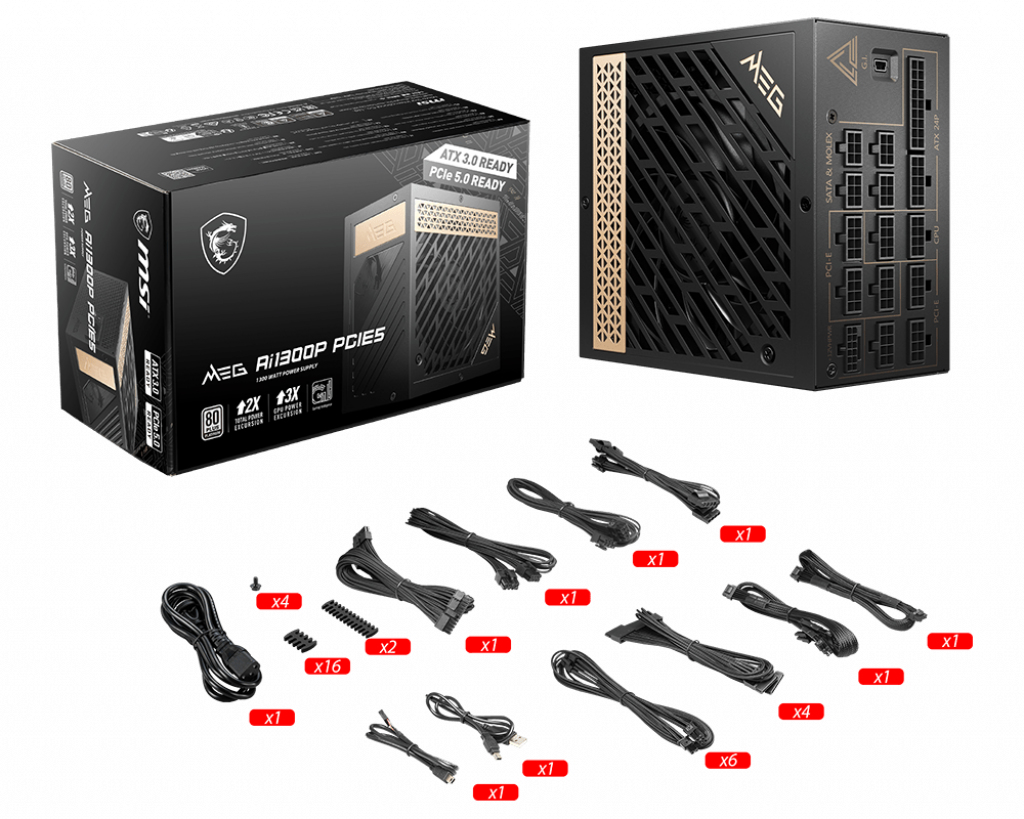

Tipo di cablaggio
Specifies the design of the internal wiring, indicating whether cables are permanently attached or can be removed (e.g. Fully-Modular).
Totalmente Modulare
Prestazione
Certificazione 80 PLUS
The energy efficiency rating, indicating the minimum percentage of power converted from the mains to the device (e.g., 80 PLUS Gold).
80 PLUS Platinum
Utilizzo
What the product is used for.
PC
Fattore di forma dell'unità di alimentazione (PSU)
The physical dimensions and shape standard of the power supply, which determines compatibility with the chassis (e.g., ATX or Flex ATX).
ATX
Versione ATX
ATX (Advanced Technology eXtended) is a motherboard form factor specification developed by Intel in 1995. The specification defines the key mechanical dimensions
3.1
Design
Colore del prodotto
The colour e.g. red
Nero
Tipo di raffreddamento
The method used to cool the device or to cool the air around the device.
Attivo

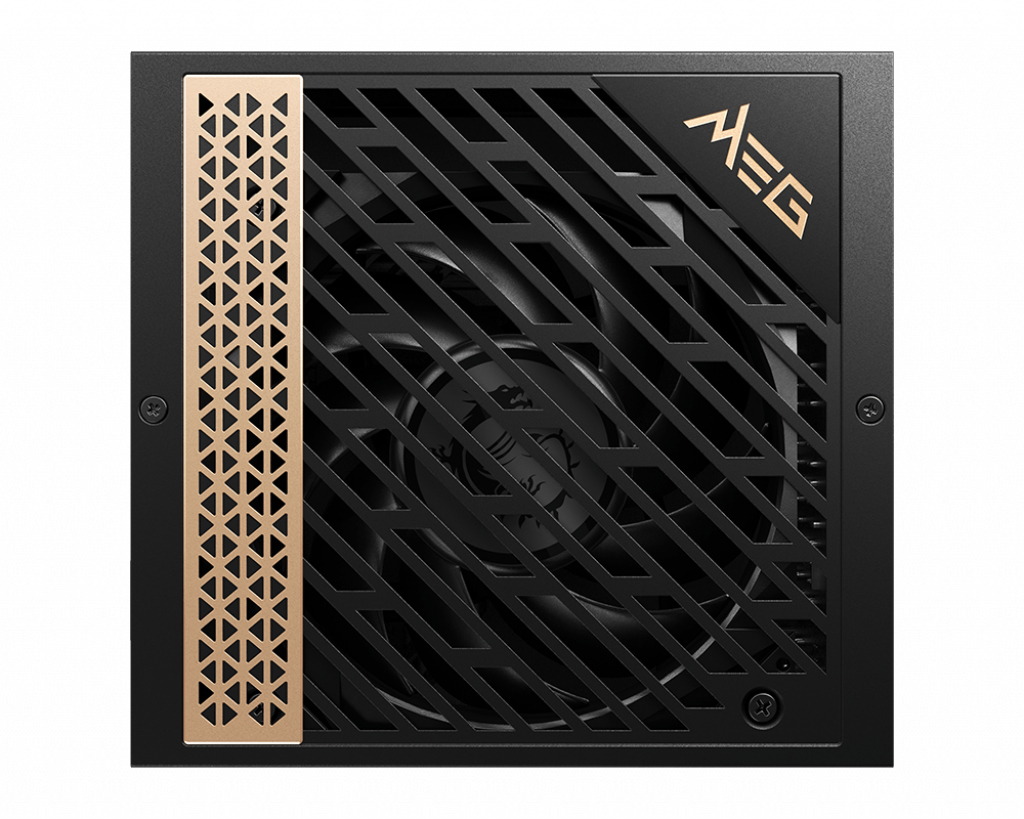

Diametro del ventilatore
The size of the fan
12 cm
Numero di ventole
The quantity of fans (apparatus with rotating blades that creates a current of air for cooling or ventilation).
1 ventola(e)
Illuminazione
The device has illumination.
No
Interrutore On/Off
The button which is pressed to switch the device on or off.
Sì
Dimensioni e peso
Larghezza
The measurement or extent of something from side to side.
150 mm
Profondità
The distance from the front to the back of something.
16 mm
Altezza
Altezza del prodotto
86 mm
Dati logistici
Codice del Sistema Armonizzato (SA)
The standardized numerical method of classifying traded products used by customs authorities around the world to identify goods for tariffs and statistics.
84733020
Paese di origine
Country where the device is made. Aka Country of manufacture (COM).
Cina
Altre caratteristiche
Garanzia legale
The minimum period, established by law, during which the seller is liable for defective or non-conforming goods. Duration, conditions, and terminology vary by jurisdiction (e.g. minimum 2 years in the EU under Directive 2019/771, implied warranty under the UCC in the US, Consumer Rights Act 2015 in the UK).
10 anno/i
MSI MEG AI1300P PCIE5. Potenza totale: 1300 W, Tensione di ingresso AC: 100 - 240 V, Frequenza di ingresso AC: 50 - 60 Hz. Connettore scheda madre: 24-pin ATX, Lunghezza del cavo di alimentazione della scheda madre: 60 cm, Tipo di cablaggio: Totalmente Modulare. Utilizzo: PC, Fattore di forma dell'unità di alimentazione (PSU): ATX, Certificazione 80 PLUS: 80 PLUS Platinum. Colore del prodotto: Nero, Tipo di raffreddamento: Attivo, Diametro del ventilatore: 12 cm. Larghezza: 150 mm, Profondità: 16 mm, Altezza: 86 mm
