ZYX

GS1350-26HP-EU0101F

Ean : 4718937604463

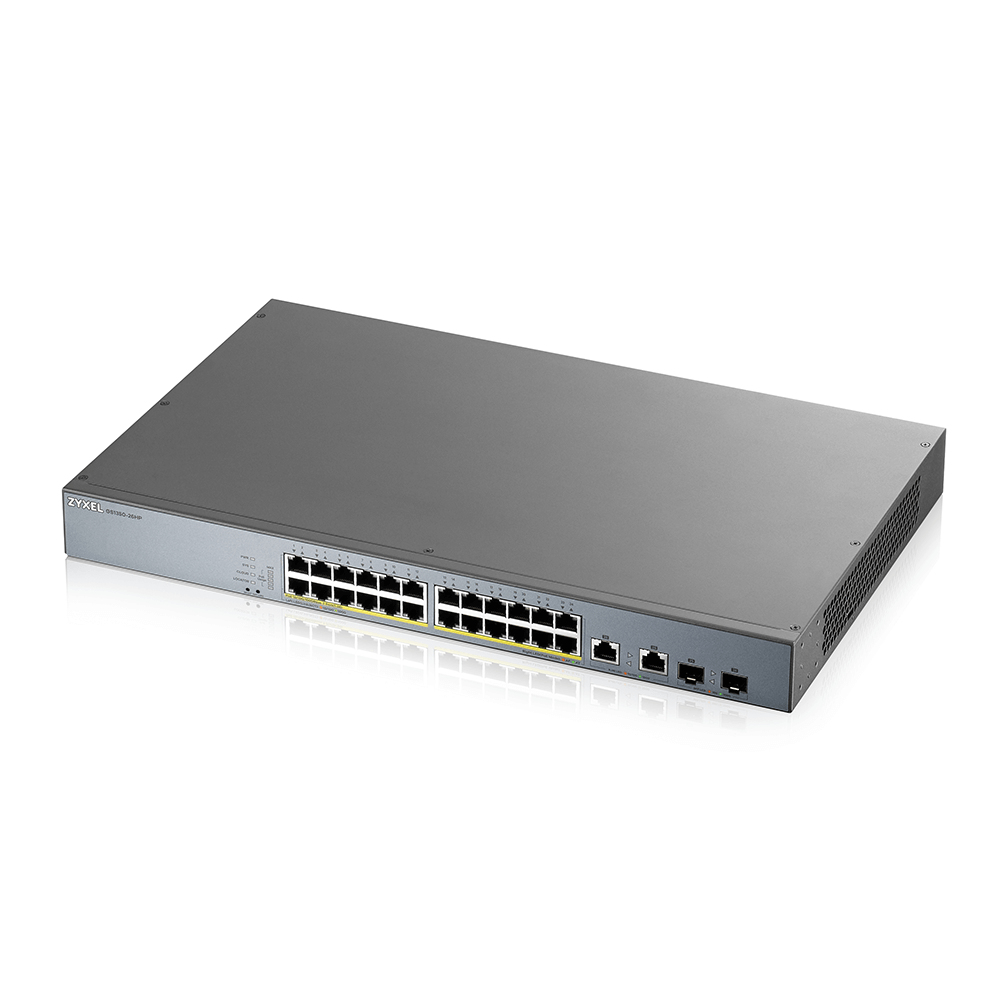

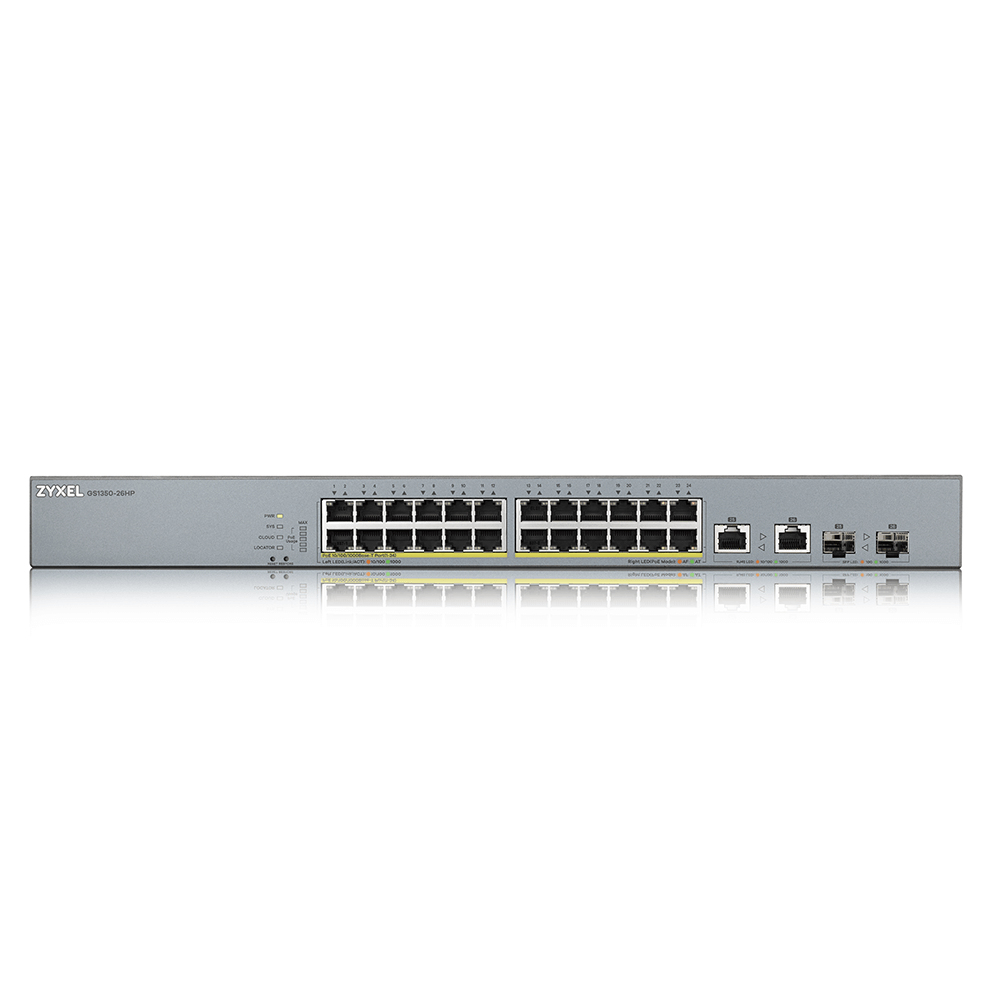

Zyxel GS1350-26HP-EU0101F switch di rete Gestito L2 Gigabit Ethernet (10/100/1000) Supporto Power over Ethernet (PoE) Grigio

* Non viene rilasciata alcuna garanzia su eventuali errori delle descrizioni tecniche aggiuntive né sull'accuratezza delle foto, da intendersi come un mero servizio informativo
Caratteristiche di gestione
Tipo interruttore
What switch device has
Gestito
Livello del commutatore
A network switch is a computer networking device that links networking segments. A switch has different layers
L2
Gestione web-based
Using a website/web application to manage something.
Sì
Configurazione dei parametri di localizzazione (CLI)
Indicates whether location settings can be configured via the command line interface (CLI).
Sì
Registro evento di sistema
Indicates whether the device maintains a record of internal system events and status changes for diagnostic purposes.
Sì
Supporto MIB
Indicates whether the device supports the Management Information Base for network management and monitoring via protocols such as SNMP.
RFC 1066, RFC 1213, 1157, RFC 1493, RFC 1643, RFC 1757, RFC 2011, 2012, 2013, RFC 2233, RFC 2358, RFC 2674, RFC 2819, 2925, RFC 3621, RFC 4293, RFC 4292, RFC 4022, RFC 4113
Connettività
Quantità di porte RJ-45
The number of basic switching RJ-45 Ethernet ports (sockets).
24
Tipo di porte RJ-45
The type/category of basic switching RJ-45 Ethernet ports (sockets).
Gigabit Ethernet (10/100/1000)
Quantità di porte Combo SFP
The number of dual-purpose ports that can support either a copper RJ45 connection or an SFP fiber optic module.
2
Collegamento in rete
Standard di rete
The way in which the network is working
IEEE 802.1D, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1w, IEEE 802.3, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Supporto 10G
The product can use Oracle 10G
No
Tecnologia Ethernet su cavi in rame
The specific standard used for data transmission over copper twisted-pair cables (e.g., 1000BASE-T).
10BASE-T, 100BASE-TX, 1000BASE-T
Mirroring della porta
Indicates whether the network switch can copy traffic from one or more ports to another port for monitoring and analysis purposes.
Sì
Supporto controllo flusso
Indicates whether the device supports the management of data transmission rates to prevent buffer overflow.
Sì
Controllo Broadcast storm
Indicates whether the device can monitor and limit the amount of broadcast traffic to prevent network congestion and potential crashes.
Sì
Limitazione della velocità
Indicates whether the device can control the maximum amount of network traffic allowed to pass through a specific port or interface to prevent congestion.
Sì
Apertura albero di protocollo
Indicates whether the device supports a network protocol that prevents loops in a bridge network topology.
Sì
VLAN support
A Virtual Local Area Network (VLAN) consists of a group of computers and switches that can be physically distributed over different networks and buildings
Sì
Caratteristiche della LAN virtuale
Specifies the supported methods for segmenting a network into multiple logical broadcast domains on the switch or access point (e.g., MAC address-based VLAN or Management VLAN).
MAC address-based VLAN, Port-based VLAN
Numero di VLA
The maximum number of virtual local area networks that can be configured on the device to segment network traffic.
256
Fibra ottica
Tecnologia delle fibre dei cavi elettrici
The specific IEEE 802.3 standard or industry specification used for data transmission over fiber optic cables (e.g., 1000BASE-SX or 1000BASE-LX).
1000BASE-X
Trasmissione dati
Capacità di commutazione
The data transfer capacity of the switch per second.
52 Gbit/s
tasso di inoltro
The number of packets the device can process and send per second, measured in millions of packets per second (e.g., 148.8 Mpps).
38,7 Mpps
Dimensioni tavola MAC
The MAC address is the 'Media Access Control Address'. It is a unique address given to a network interface controller (NIC) in a device. A MAC address table shows the addresses in a table format.
8000 voci
Buffer di memoria di pacchetto
The amount of memory available in the network switch to temporarily store data packets during congestion, typically measured in megabytes (MB) or kilobytes (KB).
0,525 MB
Sicurezza
Caratteristiche DHCP
Specifies the supported Dynamic Host Configuration Protocol (DHCP) options for network configuration, such as DHCP Option 66 for boot server addresses.
DHCP client, DHCP relay, DHCP snooping
Funzione IGMP snooping
Indicates whether the device can optimize multicast traffic by ensuring it is only forwarded to the ports that have requested it.
Sì
IGMP proxy
Indicates whether the device can forward IGMP messages between different network segments to optimize the delivery of multicast traffic.
Sì
Algoritmi di sicurezza supportati
Security algorithms are used to provide authentication
SNMP, SNMPv3, SSH, SSL/TLS
Protezione contro i loop back
Indicates whether the device has a mechanism to detect and prevent network loops to avoid broadcast storms.
Sì
Algoritmi di pianificazione di coda
The method used by the device to manage the order in which data packets are transmitted from the output buffer, such as Priority Queuing (PQ) or Deficit Round Robin (DRR).
SPQ, WFQ, Weighted Round Robin (WRR)
Funzioni Multicast
Supporto multicast
Indicates whether the device supports the simultaneous transmission of a single data stream to multiple recipients.
Sì
Design
Montaggio rack
The type of mounting that can position devices in a shelving system (rack).
Sì
Colore del prodotto
The colour e.g. red
Grigio
Indicatori LED
The specific status lights available on the unit to provide visual feedback on its current state or connectivity (e.g., AC input, ACT, or Access).
Sì
Compatibilità elettromagnetica
Elenco dei Paesi e delle rispettive agenzie di regolazione delle norme standard dalle quali il l' prodotto si riferisce
CE, FCC, C-Tick, A; BSMI CNS13438
Prestazione
Emissione acustica
The amplitude level of the undesired background noise
40,1 dB
Firmware aggiornabile
Indicates whether the internal software of the device can be updated to a newer version to improve performance or add features.
Sì
Tempo medio tra guasti (MTBF)
Modo statistico usato per indicare l'affidabilità del prodotto/ meccanismo espresso in ore e percentuale per circuiti di lavorazione. Il numero (espresso in ore)non calcola il tempo prima dell'errore della singola unit à/ meccanismo.
888495 h
Gestione energetica
Tensione di ingresso AC
The voltage of the AC electricity that is inputted into the product.
100 - 240 V
Frequenza di ingresso AC
The range of alternating current frequencies the device can accept from the power source, measured in hertz (e.g., 45 - 65).
50 - 60 Hz
Consumo energetico (max)
The maximum amount of power used by the device.
448,9 W
Power over Ethernet (PoE)
Supporto Power over Ethernet (PoE)
The device supports Power over Ethernet (PoE)
Sì
Quantità porte Power over Ethernet (PoE)
The number of network ports on the switch that can provide electrical power to connected devices via the Ethernet cable.
24
Bilancio energetico totale del PoE
The maximum total amount of power available to be distributed across all PoE-enabled ports, measured in Watts (e.g. 120W).
375 W
Condizioni ambientali
Intervallo temperatura di funzionamento
The minimum and maximum temperatures at which the product can be safely operated.
-20 - 50 °C
Intervallo di temperatura
The minimum and maximum temperatures at which the product can be safely stored.
-40 - 70 °C
Range di umidità di funzionamento
The range of relative humidity, expressed as a percentage, within which the device can function correctly without damage or performance loss.
5 - 95%
Umidità
The permissible range of relative humidity, expressed as a percentage, within which the product can be stored without damage.
5 - 95%
Dissipazione del calore
Il calore misurato in unità di misura inglese per ore, generate dal fornitore di energia
1530,75 BTU/h
Dimensioni e peso
Larghezza
The measurement or extent of something from side to side.
441 mm
Profondità
The distance from the front to the back of something.
270 mm
Altezza
Altezza del prodotto
44 mm
Peso
Il peso del prodotto senza imballaggio (peso netto). Se possibile, il peso netto viene espresso compreso di accessori standard e forniture . Notate che alle volte il produttore interpreta troppo seriamente il peso del prodotto,tralasciando il peso degli accessori e/o fornimenti .
3,58 kg
Contenuto dell'imballo
Cavi inclusi
Specifies the types and quantities of connection cables provided with the product (e.g., 3.5 mm to 3.5 mm or SATA).
AC
Kit di montaggio per rack
Indicates whether the necessary hardware is included to install the unit into a standard 19-inch equipment rack.
Sì
Dati logistici
Codice del Sistema Armonizzato (SA)
The standardized numerical method of classifying traded products used by customs authorities around the world to identify goods for tariffs and statistics.
85176990
Zyxel GS1350-26HP-EU0101F. Tipo interruttore: Gestito, Livello del commutatore: L2. Tipo di porte RJ-45: Gigabit Ethernet (10/100/1000), Quantità di porte RJ-45: 24. Dimensioni tavola MAC: 8000 voci, Capacità di commutazione: 52 Gbit/s. Standard di rete: IEEE 802.1D, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1w, IEEE 802.3, IEEE 802.3ad, IEEE 802.3af, IEEE.... Supporto Power over Ethernet (PoE). Montaggio rack
