ASU

90MB1LN0-M0EAY0

Ean : 4711636051125

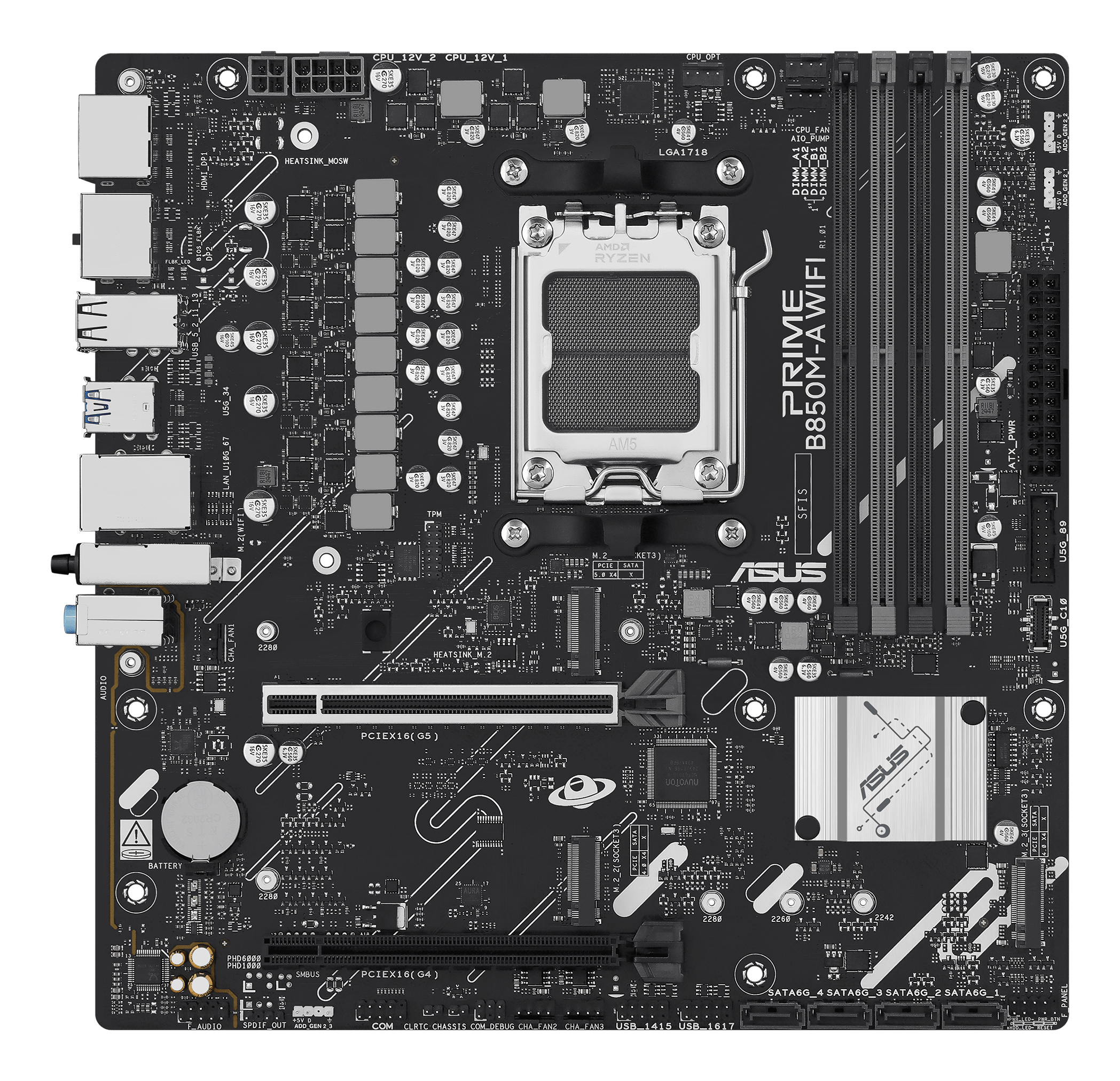

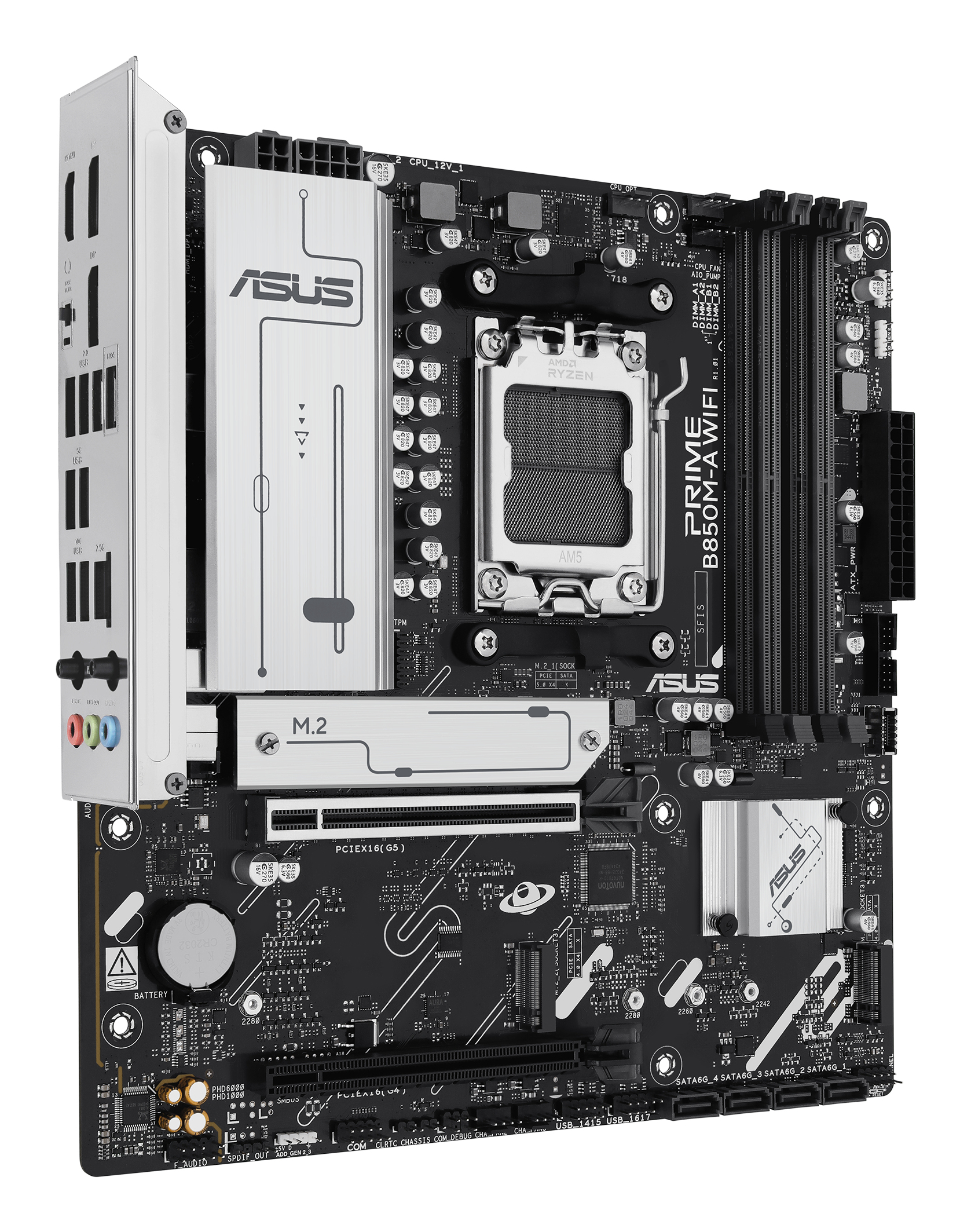

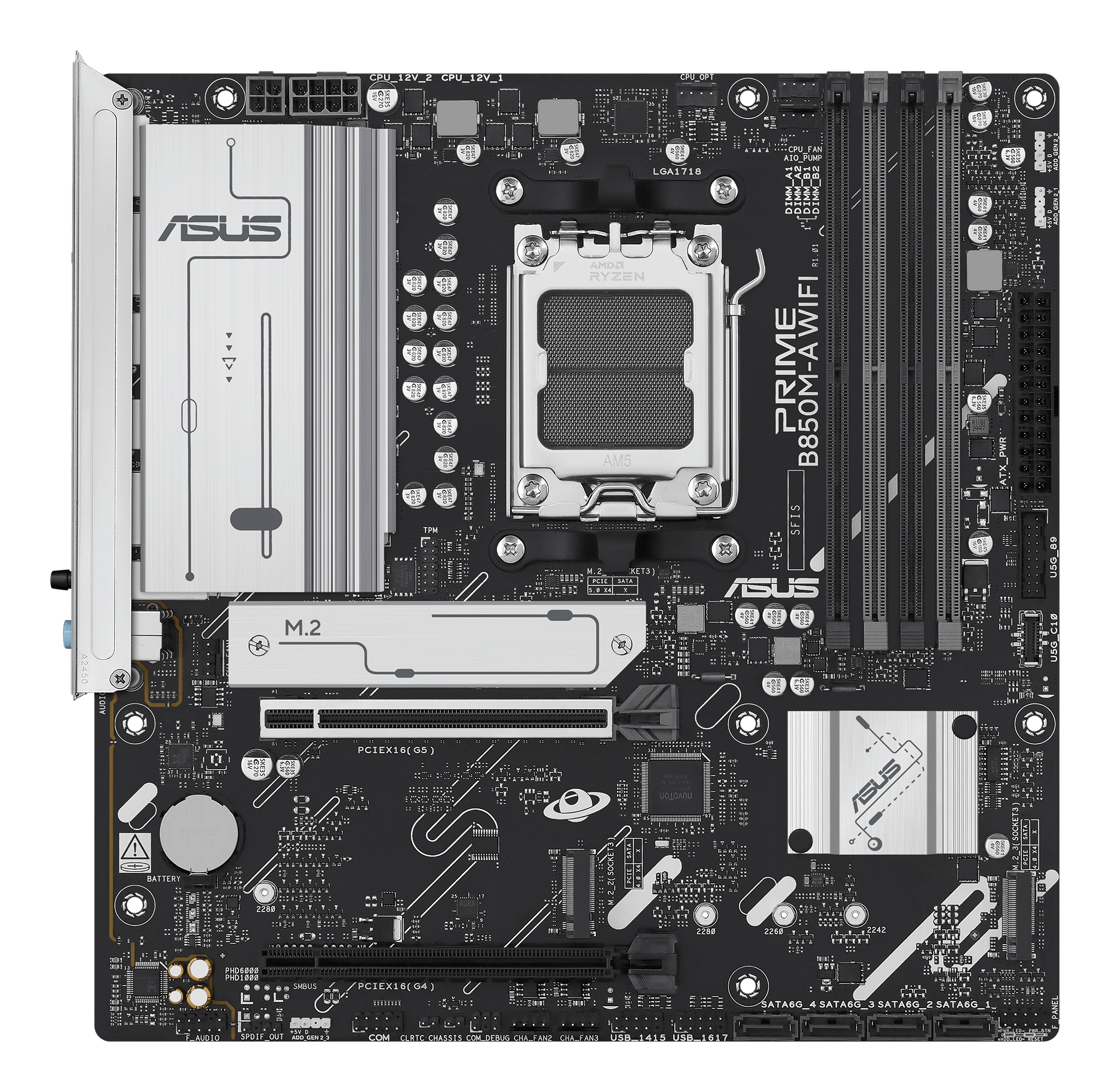

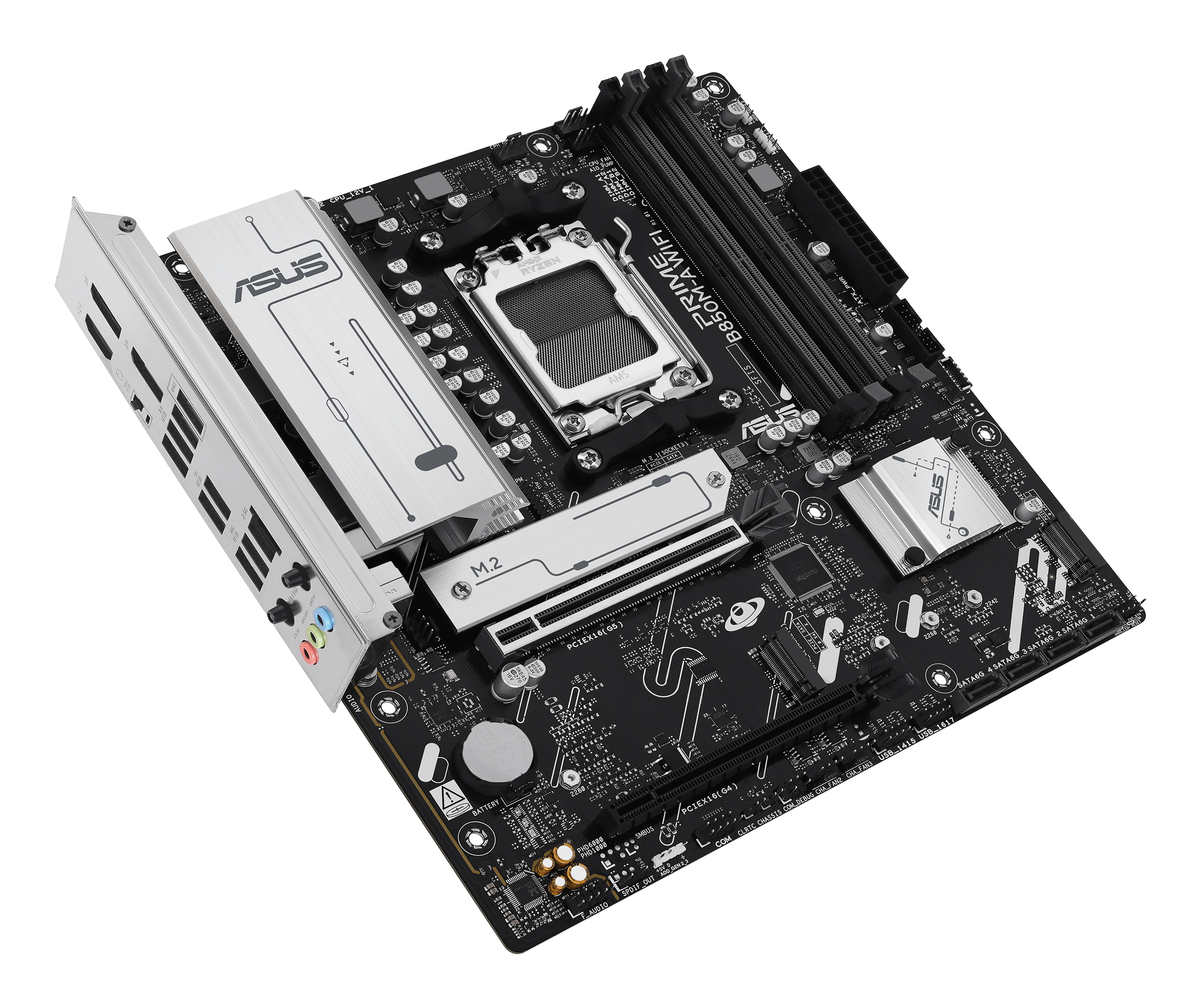

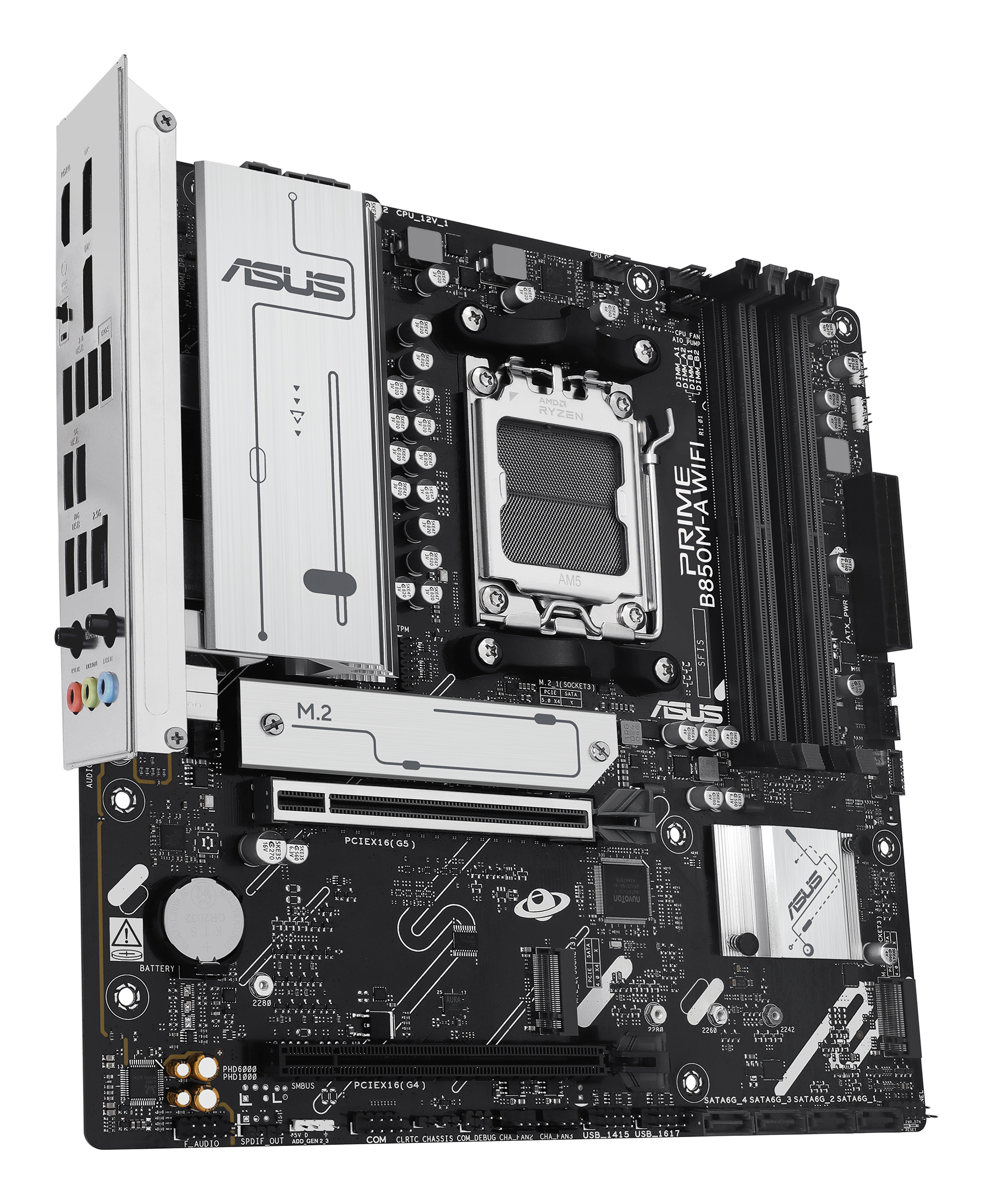

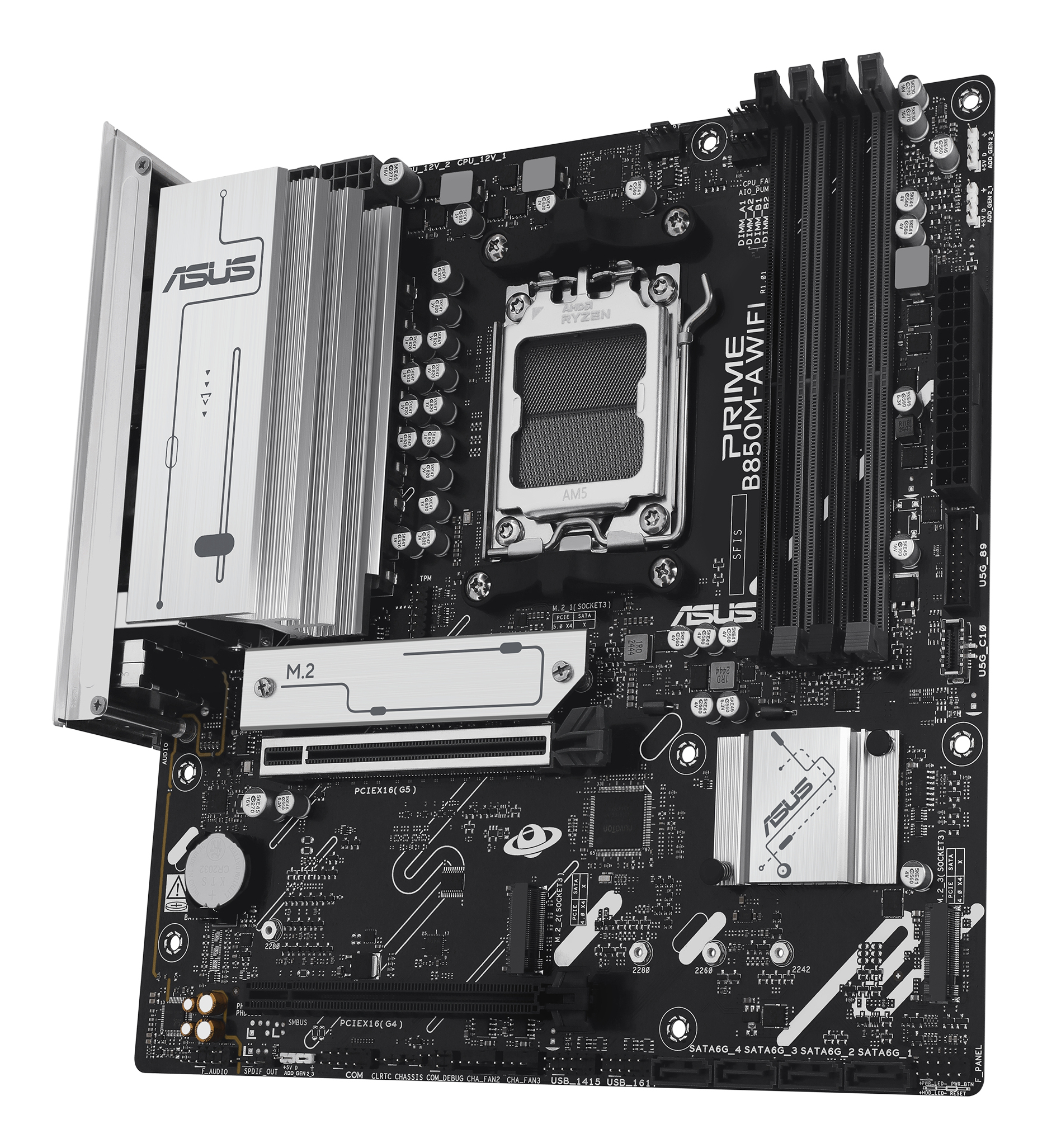

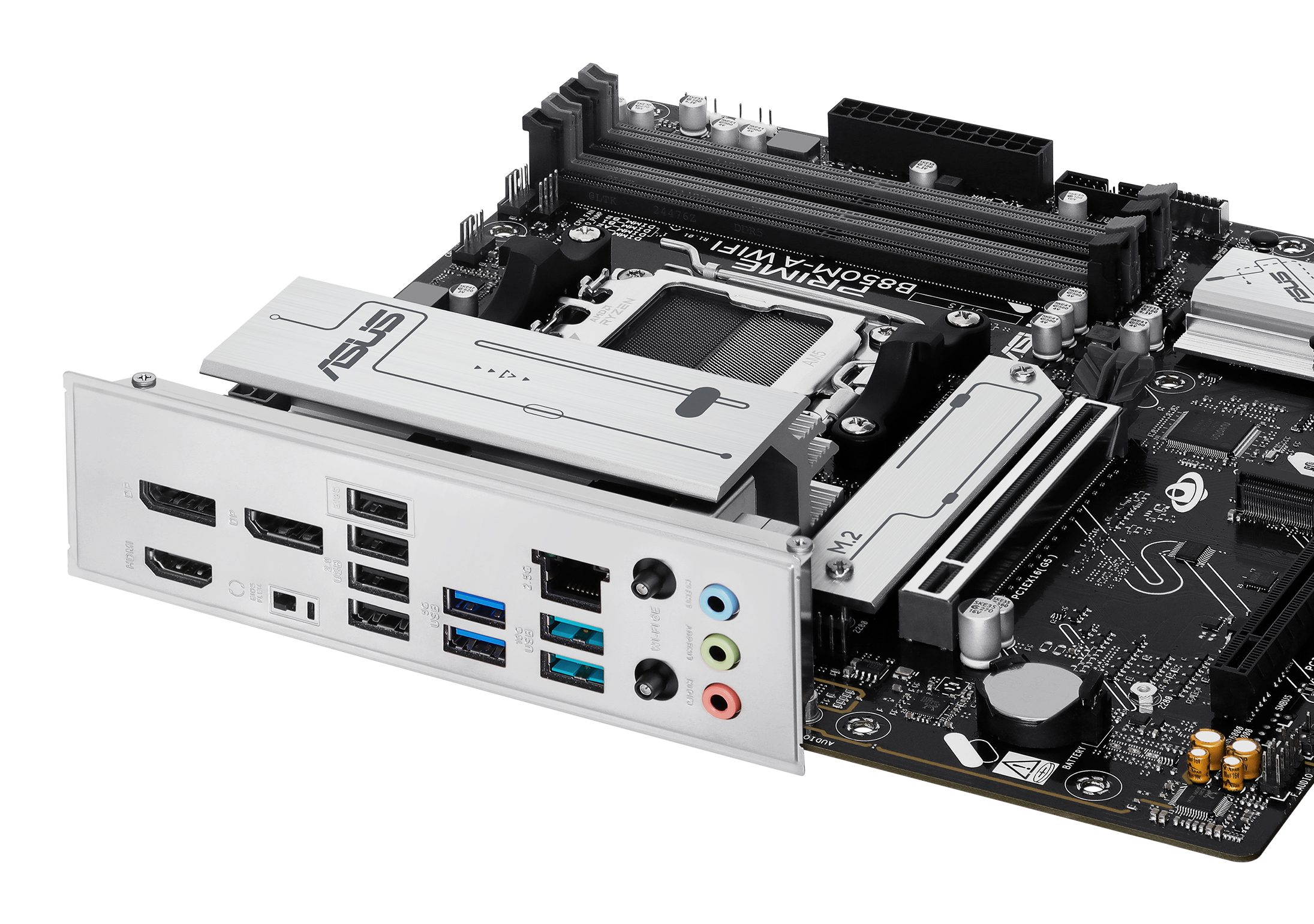

ASUS PRIME B850M-A WIFI AMD B850 Socket AM5 micro ATX

* Non viene rilasciata alcuna garanzia su eventuali errori delle descrizioni tecniche aggiuntive né sull'accuratezza delle foto, da intendersi come un mero servizio informativo
Processore
Produttore processore
The manufacturer that produced the processor.
AMD
Presa per processore
Mechanical component(s) that provides mechanical and electrical connections between a microprocessor and a printed circuit board (PCB). This allows the processor to be replaced without soldering.
Socket AM5
Processori compatibili
A processor which is compatible with this device
AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Memoria
Tipi di memoria supportati
Types of memory which can be used with the product.
DDR5-SDRAM
Numero di slot di memoria
The total number of available sockets for installing memory modules.
4
tipo di slot di memoria
A memory slot
DIMM
Canali di memoria
The number of communication paths between the memory controller and the RAM, which affects data transfer bandwidth (e.g., Dual-channel).
Dual-channel
Compatibilità ECC
Specifies whether the product supports Error Correction Code (ECC) memory, which detects and fixes data corruption (e.g., ECC, non-ECC).
ECC & Non-ECC
Velocità di clock della memoria supportata (max)
The maximum frequency at which the system memory can operate, measured in MHz.
8000 MHz
RAM massima supportata
The maximum internal memory which is available in the product.
256 GB
Senza buffer
Indicates whether the device supports the use of unbuffered memory modules.
Sì
Controller di archiviazione
Tipi di unità di archiviazione supportate
The type of storage drives the device is compatible with.
HDD & SSD
Interfacce dell'unità di archiviazione supportate
The physical and logical connection standards supported for connecting storage drives to the system (e.g., M.2 or SATA).
M.2, SATA III
Numero di hard drive supportati
The total number of hard drives that can be used in/with this product.
4
numero di dispositivi di archivio supportati
How many storage drives can be fit into the product at once.
7
Supporto RAID
The device uses RAID
Sì
Livelli RAID
RAID is a storage technology that combines multiple disk drive components into a logical unit for the purposes of data redundancy and performance improvement. Data is distributed across the drives in one of several ways
0, 1, 5, 10
Grafica
Tecnologia di processo parallela
Parallel processing technology is the simultaneous use of more than one CPU or processor core to execute a program or multiple computational threads. Ideally
Non supportato
I/O interni
Connettori USB 2.0
The end of a cable with a USB 2.0 connector. USB 2.0 was released in April 2000 (now called "Hi-Speed")
2
Connettori USB 3.2 Gen 1 (3.1 Gen 1)
This is a connector (normally attached to a cable) for USB 3.0. USB 3.0 is the second major revision of the Universal Serial Bus (USB) standard for computer connectivity. First introduced in 2008
2
Numero di connettori SATA III
Serial ATA (Advanced Technology Attachment) (SATA) is a computer bus interface that connects host bus adapters to mass storage devices such as hard disk drives and optical drives. SATA III (revision 3.x) interface
4
Connettore uscita S/PDIF
Indicates whether the product features a Sony/Philips Digital Interface (S/PDIF) port for transmitting digital audio signals.
Sì
Connettore pannello audio frontale
Indicates whether the product has a dedicated header to connect audio jacks located on the front panel of a chassis.
Sì
Connettore ATX (24-PIN)
Indicates whether the product features a 24-pin ATX power connector for main power supply connectivity.
Sì
Connettore ventola CPU
Indicates whether the product has a dedicated header for connecting a CPU cooling fan.
Sì
Numero di connettori della ventola della CPU
The total number of dedicated headers available on the board to power and control CPU cooling fans.
1
Numero di connettori ventola chassis
The total number of internal headers available to connect case cooling fans (e.g. 3 or 4).
3
Connettore d'intrusione del telaio
Indicates whether the product has a dedicated header to connect a switch that detects when the case has been opened.
Sì
Connettore di potenza EPS (8-Pin)
Indicates whether the product features an 8-pin EPS connector to provide dedicated power to the CPU.
Sì
Numero di connettori COM
The total number of serial communication ports available on the device (e.g. 2).
1
Connettore TPM
Indicates whether the product features a dedicated header for connecting a Trusted Platform Module (TPM) security chip.
Sì
Connettore con potenza 12V
Indicates whether the product has a dedicated 12V power connector for additional power delivery.
Sì

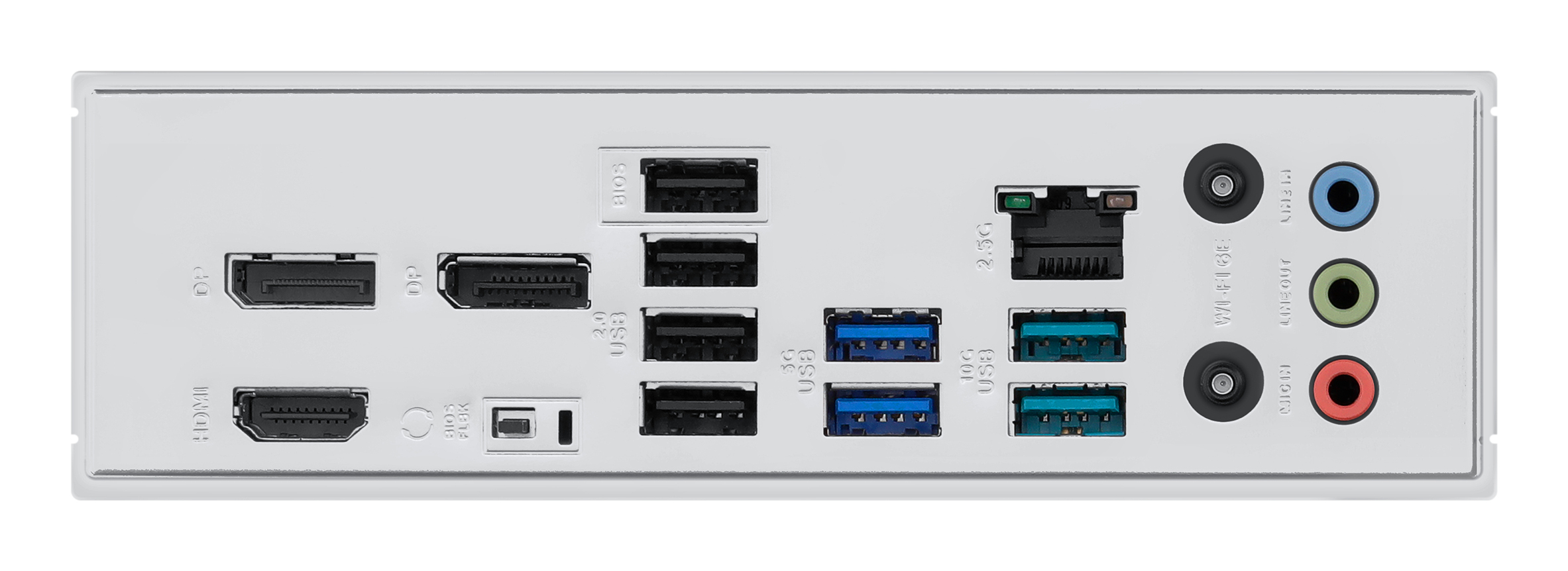

Pannello posteriore porte I/O
Quantità porte USB 2.0
La porta USB 2.0 ha una velocità di trasmissione data di 480 Mbps ed è diversamente compatibile con la porta USB 1.1 .Si può collegare qualsiasi tipo di dispositivo periferico a questi.
4
Quantità di porte USB 3.2 Gen 1 (3.1 Gen 1) di tipo A
The total number of available USB 3.2 Gen 1 (formerly 3.1 Gen 1) Type-A connection ports on the device.
2
Quantità di porte USB 3.2 Gen 2 (3.1 Gen 2) di tipo A
The total number of USB Type-A ports that support the 3.2 Gen 2 (formerly 3.1 Gen 2) standard for high-speed data transfer.
2
Quantità porte Ethernet LAN (RJ-45)
Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.
1
Quantità porte HDMI
The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor
1
Quantità DisplayPorts
Number of DisplayPorts. A DisplayPort is a digital display interface developed by the Video Electronics Standards Association (VESA). The interface is primarily used to connect a video source to a display device such as a computer monitor
2
Ingresso di linea
Indicates whether the device has a dedicated input port for receiving audio signals from an external source.
Sì
Spinotto antenna WiFi-AP
The number of antenna connectors available on the unit for connecting external WiFi antennas.
2
Collegamento in rete
Collegamento ethernet LAN
An Ethernet LAN (Local Area Network) interface is present
Sì
Tipo di interfaccia Ethernet
The maximum data transfer rate supported by the network port, expressed in gigabits per second (e.g., 10 Gigabit Ethernet).
2.5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
Wi-Fi
Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves.
Sì
Wi-Fi standard
Connection of this device is done via Wi-Fi in a high standard.
Wi-Fi 6E (802.11ax)
Bluetooth
Bluetooth è una tecnologia radio basata su basso consumo di energia sviluppata per sostituire i cavi attualmente usati per collegare dispositivi elettronici come computer, stampanti e una larga gamma di dispositivi manuali inclusi i telefoni cellulari. Grazie alla connessione di onde radio, un dispositivo Bluetooth è in grado di stabilire una connessione costante verso qualsiasi browser. Questo risparmia all' utente la fatica, ad esempio, di accedere ad internet per controllare le emails o controllare aggiornamenti
Sì
Versione Bluetooth
The type of bluetooth technology in the product e.g. Bluetooth Smart (v4.0).
5.3
Caratteristiche
Chipset scheda madre
The chipset connects the microprocessor to the rest of the motherboard.
AMD B850
Sistema audio
An audio output channel is an electric circuit which acts as a path for a signal produced by a device. A device may have several audio output channels.
7.1 canali
Colore del prodotto
The colour e.g. red
Multicolore
Componente per
What this product is used as a part of (component for).
PC
Fattore di forma scheda madre
Design of the motherboard (ATX
micro ATX
Famiglia di chipset per scheda madre
The category of motherboard chipset e.g. Intel
AMD
Sistema operativo Windows supportato
Windows vesions wich can be used with the device.
Windows 10 x64, Windows 11
Slot espansione
Slot PCI Express x16 (Gen 4.x)
The number of available expansion slots supporting the PCI Express 4.0 standard with x16 lane connectivity.
1
Slot PCI Express x16 (Gen 5.x)
The number of available PCI Express x16 slots supporting the 5.0 generation standard for high-speed component connectivity.
1
Numero di slot di M.2 (M)
The total number of available M.2 M-key slots for installing high-speed storage devices or expansion cards.
3
BIOS
Tipo BIOS
The BIOS (Basic Input/Output System) initializes and tests system hardware components
UEFI AMI
Dimensione memoria BIOS
The total storage capacity of the basic input/output system chip, measured in Mbit.
256 Mbit
Dati su imballaggio
Larghezza imballo
The distance from one side of the packaging to the other.
275 mm
Profondità imballo
The distance from the front to the back of the packaging.
275 mm
Altezza imballo
The distance from the top to the bottom of the packaging.
67,5 mm
Peso dell'imballo
Weight of the packaged product.
1,52 kg
Dimensioni e peso
Larghezza
The measurement or extent of something from side to side.
244 mm
Profondità
The distance from the front to the back of something.
244 mm
Altezza
Altezza del prodotto
50 mm
Contenuto dell'imballo

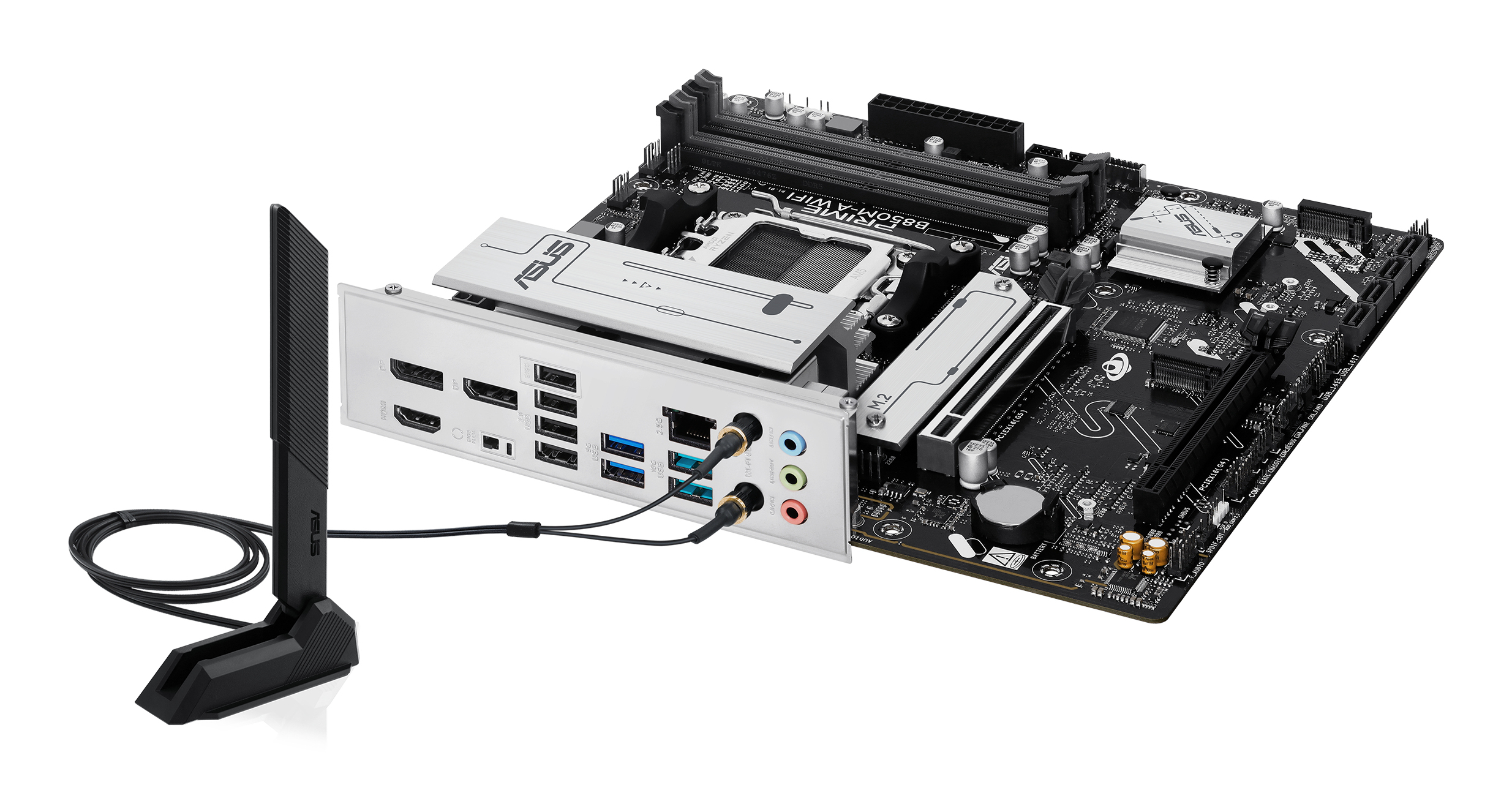

Antenna inclusa
An antenna (aerial) is built into the product or comes with it.
Sì
Altre caratteristiche
Peso
Il peso del prodotto senza imballaggio (peso netto). Se possibile, il peso netto viene espresso compreso di accessori standard e forniture . Notate che alle volte il produttore interpreta troppo seriamente il peso del prodotto,tralasciando il peso degli accessori e/o fornimenti .
930 g
ASUS PRIME B850M-A WIFI. Produttore processore: AMD, Presa per processore: Socket AM5, Processori compatibili: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Tipi di memoria supportati: DDR5-SDRAM, RAM massima supportata: 256 GB, tipo di slot di memoria: DIMM. Interfacce dell'unità di archiviazione supportate: M.2, SATA III, Tipi di unità di archiviazione supportate: HDD & SSD, Livelli RAID: 0, 1, 5, 10. Tipo di interfaccia Ethernet: 2.5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet, Wi-Fi standard: Wi-Fi 6E (802.11ax). Componente per: PC, Fattore di forma scheda madre: micro ATX, Famiglia di chipset per scheda madre: AMD
