MSI

B550M PRO-VDH WIFI

Ean : 4719072733698

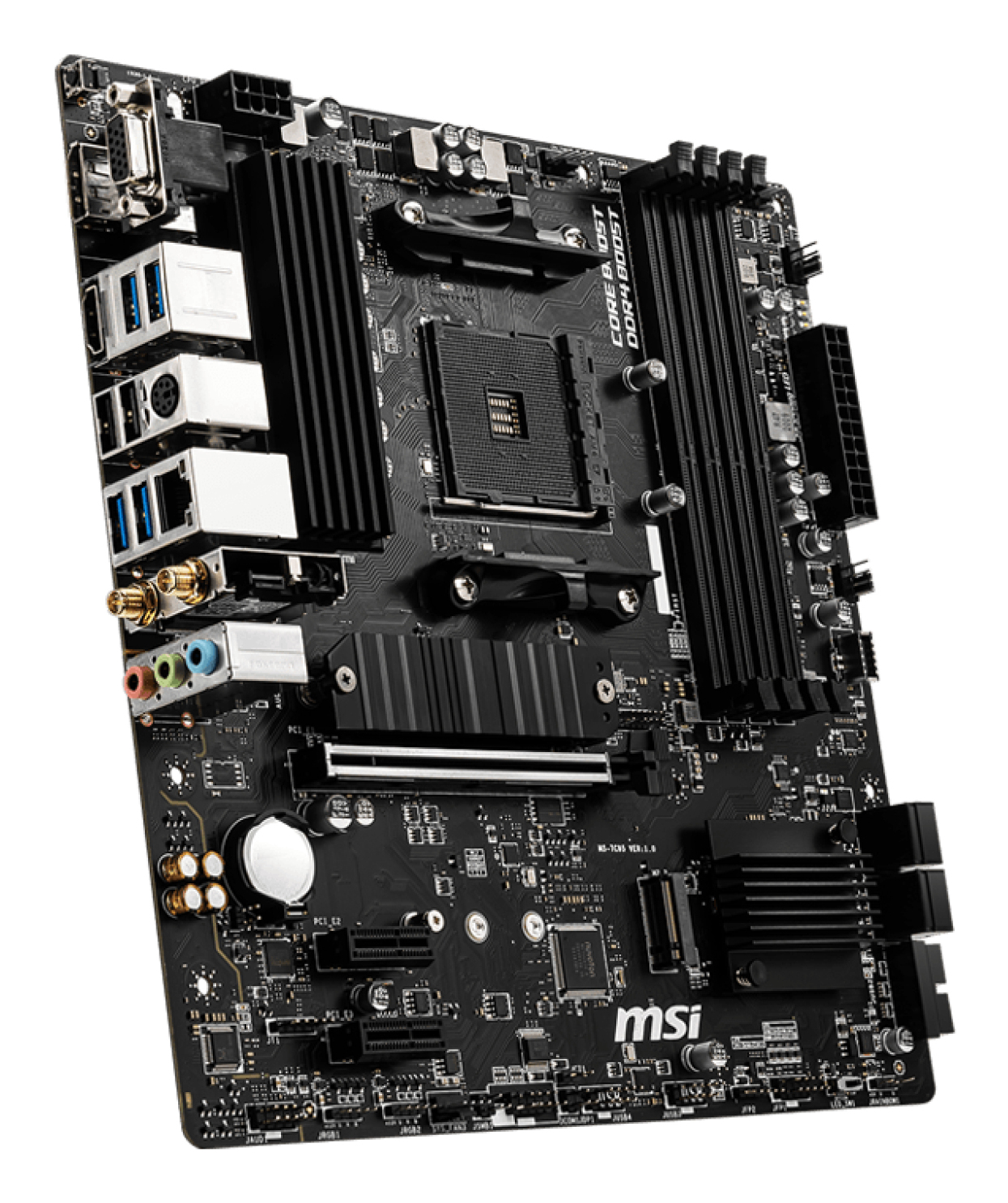

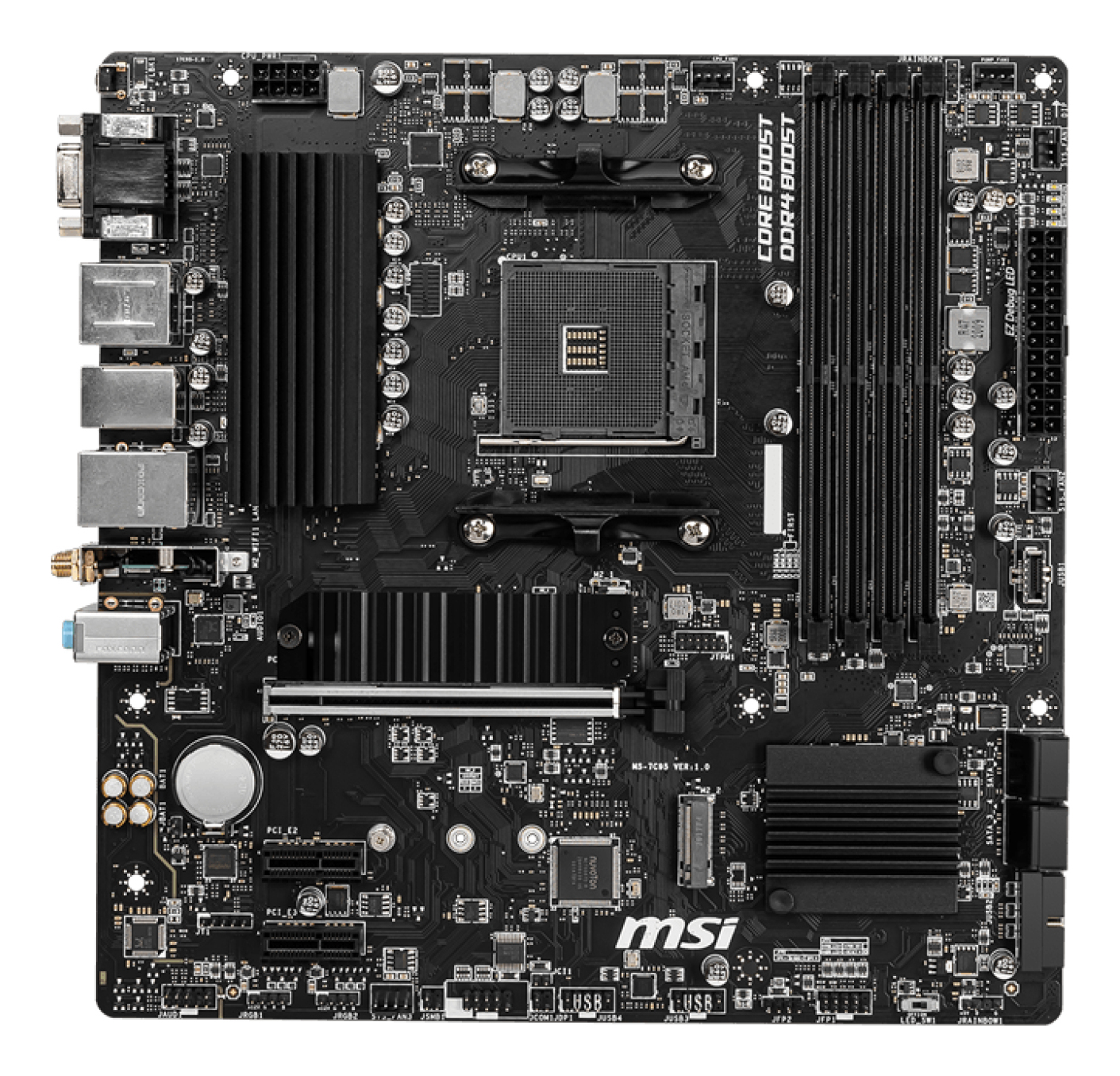

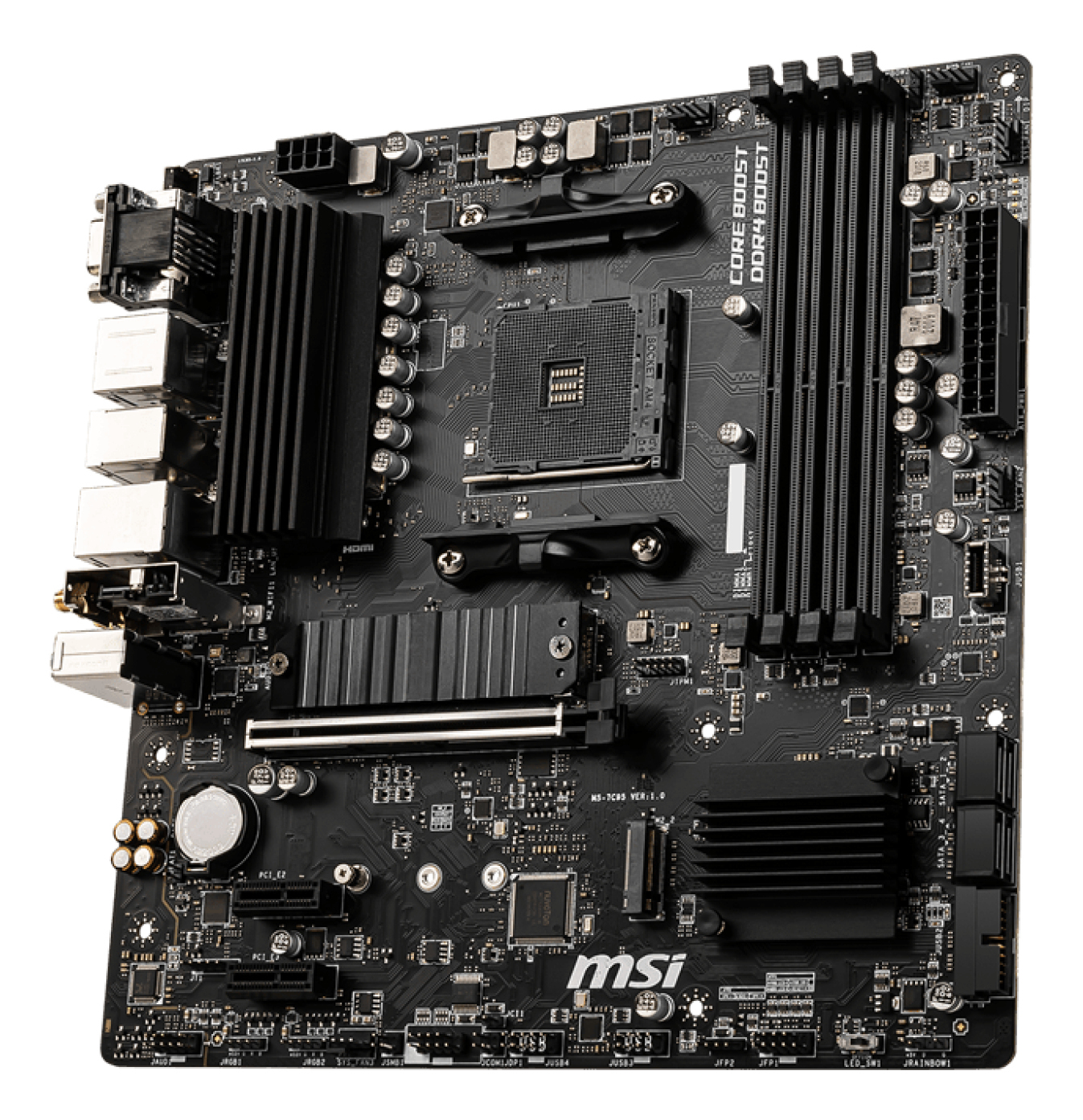

MSI B550M PRO-VDH WIFI scheda madre AMD B550 Socket AM4 micro ATX

* Non viene rilasciata alcuna garanzia su eventuali errori delle descrizioni tecniche aggiuntive né sull'accuratezza delle foto, da intendersi come un mero servizio informativo
Processore
Produttore processore
The manufacturer that produced the processor.
AMD
Presa per processore
Mechanical component(s) that provides mechanical and electrical connections between a microprocessor and a printed circuit board (PCB). This allows the processor to be replaced without soldering.
Socket AM4
Processori compatibili
A processor which is compatible with this device
AMD Ryzen 3000 Series
Numero massimo processori SMP
processore MP
1
Socket Processori supportati
The sockets (plugs) for processors that are supported (can be used) by the device.
Socket AM4
Memoria
Tipi di memoria supportati
Types of memory which can be used with the product.
DDR4-SDRAM
Numero di slot di memoria
The total number of available sockets for installing memory modules.
4
tipo di slot di memoria
A memory slot
DIMM
Canali di memoria
The number of communication paths between the memory controller and the RAM, which affects data transfer bandwidth (e.g., Dual-channel).
Dual-channel
Compatibilità ECC
Specifies whether the product supports Error Correction Code (ECC) memory, which detects and fixes data corruption (e.g., ECC, non-ECC).
ECC & Non-ECC
Velocità di memoria supportate
Memory clock speed is the time it takes for a computer to complete basic operations. It refers to the computer's processing speed and is measured in hertz. It is however not such a reliable measure of a computer's speed as it doesn't take into account other factors like RAM and cache size.
1866,2133,2400,2667,2800,2933,3000,3066,3200,3466,3600,3733,3866,4000,4133,4266,4400 MHz
RAM massima supportata
The maximum internal memory which is available in the product.
128 GB
Senza buffer
Indicates whether the device supports the use of unbuffered memory modules.
Sì
Controller di archiviazione
Tipi di unità di archiviazione supportate
The type of storage drives the device is compatible with.
HDD & SSD
Interfacce dell'unità di archiviazione supportate
The physical and logical connection standards supported for connecting storage drives to the system (e.g., M.2 or SATA).
SATA III
numero di dispositivi di archivio supportati
How many storage drives can be fit into the product at once.
6
Supporto RAID
The device uses RAID
Sì
Livelli RAID
RAID is a storage technology that combines multiple disk drive components into a logical unit for the purposes of data redundancy and performance improvement. Data is distributed across the drives in one of several ways
0, 1, 10
Grafica
Memoria massima adattatore grafico
La memoria grafica è determinata dalla grafica del processore e dalla prestazione/video del computer. La memoria grafica è spesso condivisa con quella dell' sistema variando così la quantità di memoria di sistema installata e i sistemi caricati.
16000 MB
Tecnologia di processo parallela
Parallel processing technology is the simultaneous use of more than one CPU or processor core to execute a program or multiple computational threads. Ideally
Non supportato
Risoluzione massima
The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height
4096 x 2160 Pixel
I/O interni
Connettori USB 2.0
The end of a cable with a USB 2.0 connector. USB 2.0 was released in April 2000 (now called "Hi-Speed")
2
Connettori USB 3.2 Gen 1 (3.1 Gen 1)
This is a connector (normally attached to a cable) for USB 3.0. USB 3.0 is the second major revision of the Universal Serial Bus (USB) standard for computer connectivity. First introduced in 2008
1
Numero di connettori SATA III
Serial ATA (Advanced Technology Attachment) (SATA) is a computer bus interface that connects host bus adapters to mass storage devices such as hard disk drives and optical drives. SATA III (revision 3.x) interface
4
Connettore ATX (24-PIN)
Indicates whether the product features a 24-pin ATX power connector for main power supply connectivity.
Sì
Connettore ventola CPU
Indicates whether the product has a dedicated header for connecting a CPU cooling fan.
Sì
Numero di connettori ventola chassis
The total number of internal headers available to connect case cooling fans (e.g. 3 or 4).
3
Intestazioni della porta seriale
The number of internal connection points available on the board to attach a serial port cable.
1
Connettore con potenza 12V
Indicates whether the product has a dedicated 12V power connector for additional power delivery.
Sì
Connettore LED RGB
Indicates whether the product features a dedicated pin header for connecting and controlling RGB LED lighting components.
Sì

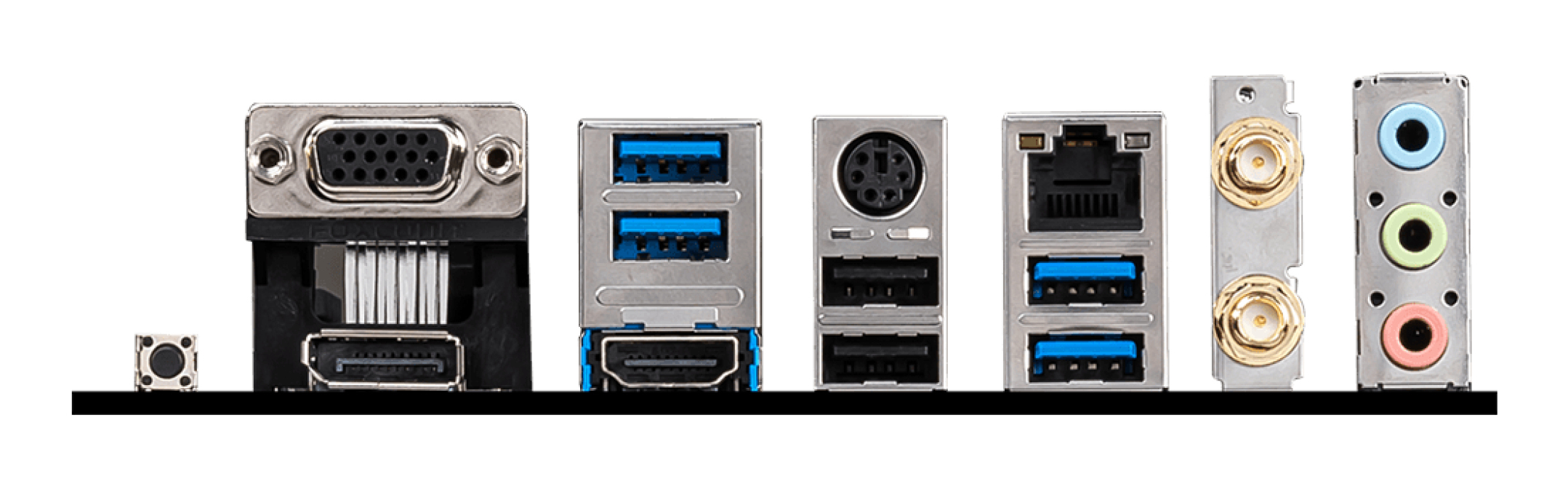

Pannello posteriore porte I/O
Quantità porte USB 2.0
La porta USB 2.0 ha una velocità di trasmissione data di 480 Mbps ed è diversamente compatibile con la porta USB 1.1 .Si può collegare qualsiasi tipo di dispositivo periferico a questi.
2
Quantità di porte USB 3.2 Gen 1 (3.1 Gen 1) di tipo A
The total number of available USB 3.2 Gen 1 (formerly 3.1 Gen 1) Type-A connection ports on the device.
4
Quantità porte Ethernet LAN (RJ-45)
Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.
1
Quantità porte PS/2
iL numero di connettori PS2 per tastiere e mouse. Il nome deriva dal' IBM Personal System/2.
1
Quantità porte VGA (D-Sub)
Number of VGA (D-Sub) ports (connecting interfaces) in the device. The VGA (D-Sub) connector is a 15 pin connector between a computer and a monitor. It was first introduced in 1987 by IBM.
1
Quantità porte HDMI
The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor
1
Quantità DisplayPorts
Number of DisplayPorts. A DisplayPort is a digital display interface developed by the Video Electronics Standards Association (VESA). The interface is primarily used to connect a video source to a display device such as a computer monitor
1
Spinotto antenna WiFi-AP
The number of antenna connectors available on the unit for connecting external WiFi antennas.
2
Collegamento in rete
Collegamento ethernet LAN
An Ethernet LAN (Local Area Network) interface is present
Sì
Tipo di interfaccia Ethernet
The maximum data transfer rate supported by the network port, expressed in gigabits per second (e.g., 10 Gigabit Ethernet).
Gigabit Ethernet
Controller LAN
The specific hardware chip or chipset that manages the network interface and handles data transmission (e.g. Intel I219-V).
Realtek 8111HN
Wi-Fi
Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves.
Sì
Wi-Fi standard
Connection of this device is done via Wi-Fi in a high standard.
Wi-Fi 5 (802.11ac)
Standard Wi-Fi
The type of wireless local area network (LAN). It can be ad-hoc
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Bluetooth
Bluetooth è una tecnologia radio basata su basso consumo di energia sviluppata per sostituire i cavi attualmente usati per collegare dispositivi elettronici come computer, stampanti e una larga gamma di dispositivi manuali inclusi i telefoni cellulari. Grazie alla connessione di onde radio, un dispositivo Bluetooth è in grado di stabilire una connessione costante verso qualsiasi browser. Questo risparmia all' utente la fatica, ad esempio, di accedere ad internet per controllare le emails o controllare aggiornamenti
Sì
Versione Bluetooth
The type of bluetooth technology in the product e.g. Bluetooth Smart (v4.0).
4.2
Caratteristiche
Chipset scheda madre
The chipset connects the microprocessor to the rest of the motherboard.
AMD B550
Chip audio
The specific integrated circuit or hardware component responsible for processing audio signals (e.g., ALC3287-CGT).
Realtek ALC892
Sistema audio
An audio output channel is an electric circuit which acts as a path for a signal produced by a device. A device may have several audio output channels.
7.1 canali
Colore del prodotto
The colour e.g. red
Nero
Componente per
What this product is used as a part of (component for).
PC
Fattore di forma scheda madre
Design of the motherboard (ATX
micro ATX
Famiglia di chipset per scheda madre
The category of motherboard chipset e.g. Intel
AMD
Numero di fori di montaggio
The total count of pre-drilled openings available for securing the unit to a surface or chassis.
8
Slot espansione
Slot PCI Express x1 (Gen 3.x)
The number of available PCI Express x1 slots supporting generation 3.x specifications for expanding the device's functionality.
2
Slot PCI Express x16 (Gen 4.x)
The number of available expansion slots supporting the PCI Express 4.0 standard with x16 lane connectivity.
1
Numero di slot di M.2 (M)
The total number of available M.2 M-key slots for installing high-speed storage devices or expansion cards.
2
BIOS
Jumper di azzeramento CMOS
Indicates whether the product features a physical jumper to reset the CMOS settings to their factory defaults.
Sì
Dati logistici
Codice del Sistema Armonizzato (SA)
The standardized numerical method of classifying traded products used by customs authorities around the world to identify goods for tariffs and statistics.
84733020
Dimensioni e peso
Larghezza
The measurement or extent of something from side to side.
244 mm
Profondità
The distance from the front to the back of something.
244 mm
Altezza
Altezza del prodotto
65 mm
Contenuto dell'imballo
Cavi inclusi
Specifies the types and quantities of connection cables provided with the product (e.g., 3.5 mm to 3.5 mm or SATA).
SATA
Drivers inclusi
Indicates whether the necessary software drivers are provided in the package.
Sì
Altre caratteristiche
Peso
Il peso del prodotto senza imballaggio (peso netto). Se possibile, il peso netto viene espresso compreso di accessori standard e forniture . Notate che alle volte il produttore interpreta troppo seriamente il peso del prodotto,tralasciando il peso degli accessori e/o fornimenti .
1 kg
MSI B550M PRO-VDH WIFI. Produttore processore: AMD, Presa per processore: Socket AM4, Processori compatibili: AMD Ryzen 3000 Series. Tipi di memoria supportati: DDR4-SDRAM, RAM massima supportata: 128 GB, tipo di slot di memoria: DIMM. Interfacce dell'unità di archiviazione supportate: SATA III, Tipi di unità di archiviazione supportate: HDD & SSD, Livelli RAID: 0, 1, 10. Memoria massima adattatore grafico: 16000 MB, Risoluzione massima: 4096 x 2160 Pixel. Tipo di interfaccia Ethernet: Gigabit Ethernet, Controller LAN: Realtek 8111HN, Wi-Fi standard: Wi-Fi 5 (802.11ac)
