VIW

LS920WU

Ean : 766907008715

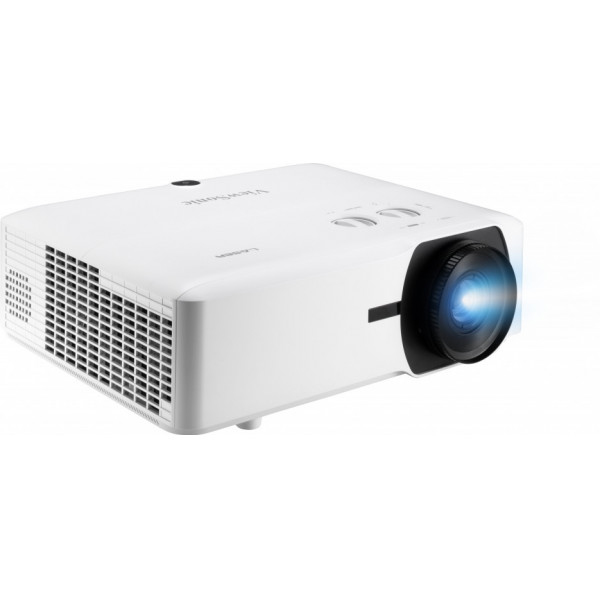

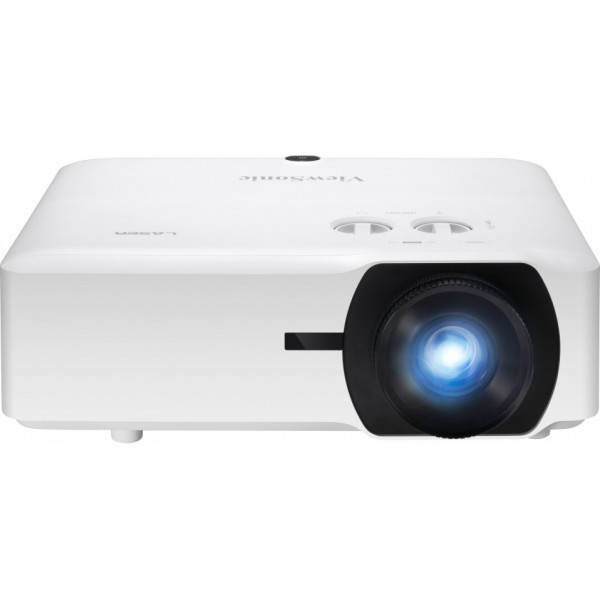

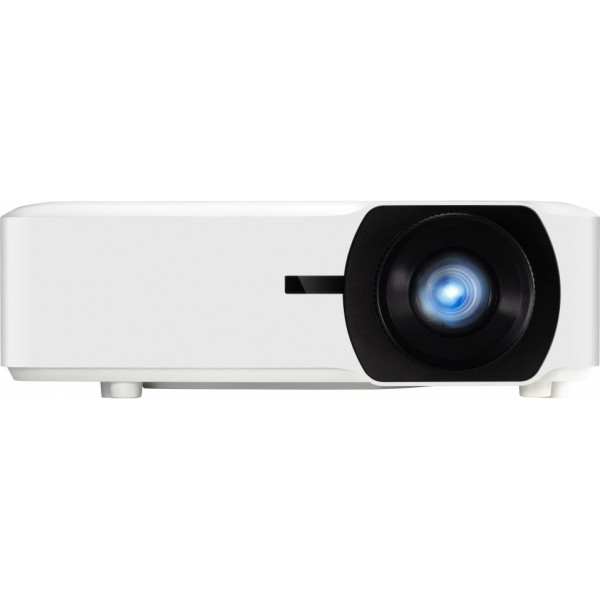

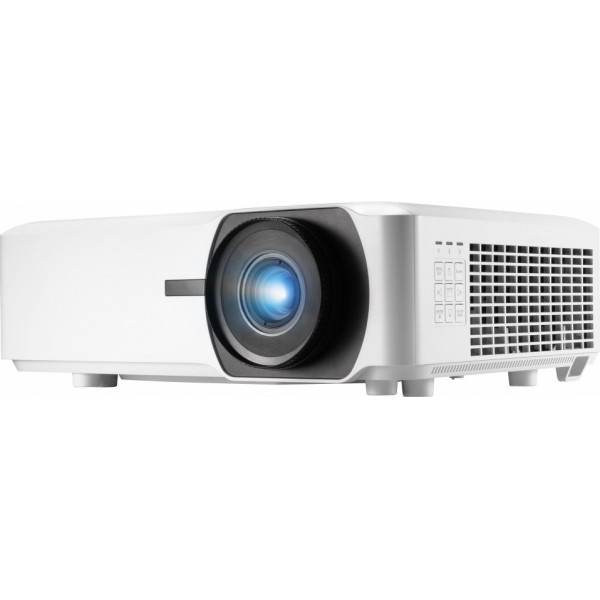

Viewsonic LS920WU videoproiettore Proiettore a raggio standard 6000 ANSI lumen DMD WUXGA (1920x1200) Bianco

* Non viene rilasciata alcuna garanzia su eventuali errori delle descrizioni tecniche aggiuntive né sull'accuratezza delle foto, da intendersi come un mero servizio informativo
Proiettore
Compatibilità dimensione schermo
The different screen sizes which the device can work with.
762 - 7620 mm (30 - 300")
Proiezione a distanza oggettiva
The maximum length at which an image can be projected.
0,88 - 14,09 m
Luminosità proiettore
The amount of light emitted, typically measured in ANSI lumens.
6000 ANSI lumen
Tecnologia di proiezione
The underlying method used to create the image on the screen, such as 3LCD or DLP.
DMD
Risoluzione nativa del proiettore
The actual number of physical pixels that make up the image on the display panel, typically expressed as width by height (e.g. 1920x1080).
WUXGA (1920x1200)
Rapporto di contrasto
La differenza di intensità luminosa tra il bianco più vistoso e il nero più scuro.
3000000:1
Numero di colori
The total number of distinct colours that the device can produce and display, often ranging from millions to billions.
1,07 miliardi di colori
Range di scansione orizzontale
The range of horizontal frequencies the device can process and display, measured in kHz.
15 - 135 kHz
Intervallo di scansione verticale
The range of vertical frequencies the device can process and display, measured in hertz (Hz).
23 - 120 Hz
Correzione Keystone, orizzontale
The maximum angle by which the image can be digitally adjusted horizontally to compensate for distortion when the device is not perfectly centered, measured in °.
-40 - 40°
Correzione Keystone, verticale
The maximum angle by which the image can be digitally adjusted vertically to compensate for misalignment between the lens and the screen, measured in °.
-40 - 40°
Dimensione della matrice
The physical dimensions of the imaging chip or display panel, measured in ".
1,22 cm (0.48")
Sorgente luminosa
Tipo di sorgente luminosa
The technology used to generate light, such as LED, Laser, or VCSEL.
Laser
Durata della sorgente luminosa
The expected operational duration of the light source before it requires replacement, measured in hours.
20000 h
Potenza della lampada
The amount of electrical power consumed by the lamp, measured in watts.
74 W
Quantità lampade
The number of lamps in/with the product.
2 lampada(e)

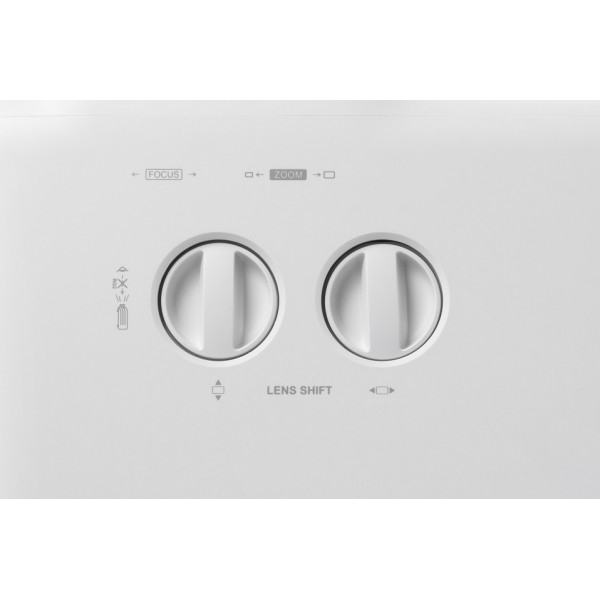

Sistema di lente
Messa a fuoco
Specifies the method used to achieve a sharp image, such as automatic (Auto), manual, or fixed focus.
Manuale
Lunghezza focale
Measure of how strongly the system converges or diverges light. For an optical system in air
14.3 - 22.9 mm
Range di apertura (F-F)
Apertura massima delle lenti della macchina fotografica, espresso in fastosa
1,81 - 2,1
Zoom fotocamera
The amount that the camera lens can zoom.
Sì
Rapporto di Zoom
Measures how much the camera can adjust its focus for distance shots. A 3x zoom ratio changes the camera's focal length by a factor of three
2.0:1
Rapporto di proiezione
The ratio between the distance from the lens to the projection surface and the width of the projected image.
1.36-2.18
Offset
The distance between the image edge and the projection or capture point, expressed as a percentage or a numerical value.
0%
Video
Formato video analogico
The supported protocols for exchanging analog signals.
NTSC, PAL, SECAM
Full HD
Full High Definition (HD) means that a display supports a resolution of 1920 x 1080 pixel
Sì
Risoluzioni grafiche supportate
The graphic resolutions that can be displayed by the device. The graphic resolution describes the width and height dimensions of a display
640 x 480 (VGA), 3840 x 2160

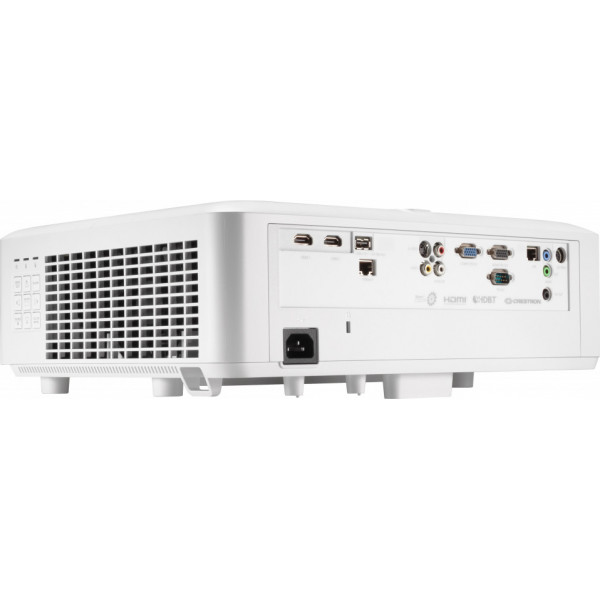

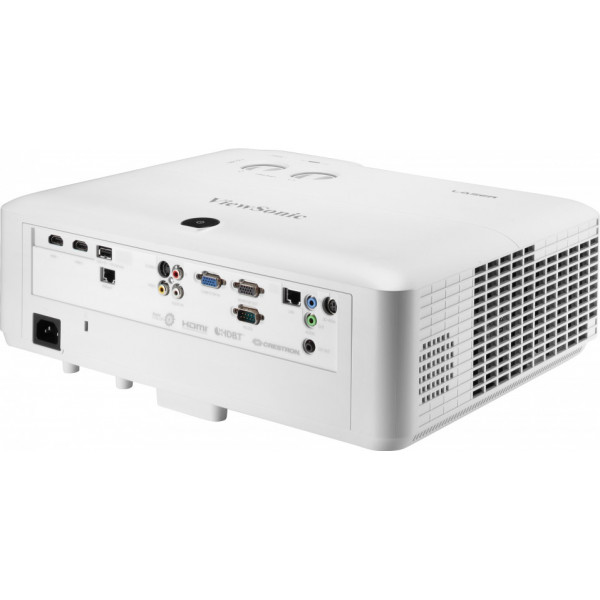

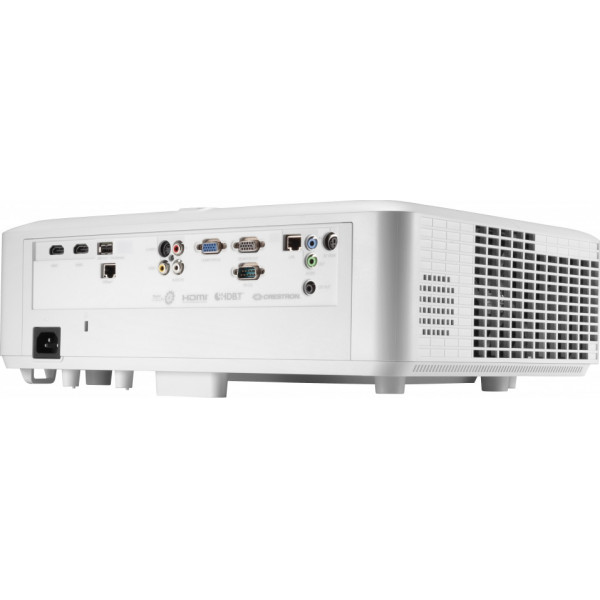

Connettività
Tipo di connettore HDMI
The physical size and form factor of the HDMI port on the device (e.g. Full-size, Mini, or Micro).
Taglia piena
Versione HDMI
The specific release version of the High-Definition Multimedia Interface standard supported by the device (e.g. 1.3 or 2.0).
2.0b
S-Video in
The number of ports (input sockets) for S-Video
1
Porta HDBaseT
Indicates whether the device features an HDBaseT port for transmitting uncompressed ultra-high-definition video, audio, and Ethernet over a single cable.
Sì
Quantità porte USB 2.0
La porta USB 2.0 ha una velocità di trasmissione data di 480 Mbps ed è diversamente compatibile con la porta USB 1.1 .Si può collegare qualsiasi tipo di dispositivo periferico a questi.
1
Ingressi audio (L,R)
The two sockets (ports) for receiving left audio signal (white cable) and right audio signal (red cable).
1
Tipo interfaccia seriale
The physical connector standard used for the serial communication port (e.g. DB9 or RJ-45).
RS-232
Ingresso audio per PC
The socket (port) for the PC audio input.
Sì
PC Audio out
Indicates whether the device has a dedicated output port for transmitting audio signals from a connected computer to external speakers or headphones.
Sì
Quantità porte VGA (D-Sub)
Number of VGA (D-Sub) ports (connecting interfaces) in the device. The VGA (D-Sub) connector is a 15 pin connector between a computer and a monitor. It was first introduced in 1987 by IBM.
2
Quantità porte HDMI
The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor
2
Ingresso video composito
The socket (port) for the composite video input (white cable).
1
Porta DVI
Digital Visual Interface (DVI) is a video display interface to connect a video source to a display device
No
Ingresso (alimentazione) AC
Indicates whether the device can be powered directly via an alternating current (AC) power source.
Sì
Collegamento in rete
Smart TV
Smart TV features access to a large number of channels that offer TV programs, movies, and music without the need to connect a TV antenna or subscribe to a cable/satellite service. Some smart TVs provide web browsing, gaming, and access to compatible media content stored on computers.
No
Collegamento ethernet LAN
An Ethernet LAN (Local Area Network) interface is present
Sì
Quantità porte Ethernet LAN (RJ-45)
Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.
1
Wi-Fi
Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves.
No
Archiviazione
Lettore di schede integrato
A card reader is a device that enables reading and, in some cases, writing data to and from a memory card.
No
Caratteristiche
Interattivo
Indicates whether the product supports interactive functionality or two-way communication.
No
Emissione acustica (modalità economica)
The amount of sound emitted during operation when the energy-saving or low-power setting is active, measured in decibels.
29 dB
HDCP
High-bandwidth Digital Content Protection (HDCP) is a form of digital copy protection to prevent copying of digital audio and video content as it travels across connections.
Sì
On Screen Display (OSD)
Indicates whether the device can display a graphical menu or information directly on the screen for adjusting settings and viewing status.
Sì
Lingue OSD
The list of available languages for the device's display interface (e.g., AFR for Afrikaans, ARA for Arabic).
Arabo, Cinese semplificato, Cinese tradizionale, Ceco, Tedesca, DUT, Inglese, ESP, Finlandese, Francese, Greco, Indonesiano, ITA, Giapponese, Coreano, Polacco, Portoghese, Russo, Svedese, Tailandese, Turco, Vietnamita
Numero di lingue OSD
The total number of different languages available for the on-screen display menu (e.g. 15).
23
Emissione acustica
The amplitude level of the undesired background noise
36 dB
Multimediale
Altoparlanti incorporati
The device contains speaker(s) to produce sound.
Sì
Potenza in uscita (RMS)
RMS (Root mean square) is a measure of the continuous power required by a device
20 W
Numero di altoparlanti incorporati
The total quantity of integrated audio output drivers installed within the unit.
2
Design
Posizionamento di mercato
Under which category can the device be positioned in the market, e.g. camera phone.
Presentazione
Tipo di prodotto
The sub-category of the product.
Proiettore a raggio standard
Colore del prodotto
The colour e.g. red
Bianco
Installazione
Where the product can be placed e.g. floor
Desktop, Soffitto
Display
Display incorporato
A display which is part of the product
No
Gestione energetica
Alimentazione
What is providing power for the product e.g. mains electricity.
AC
Consumi
Ammontare di energia consumata da questo modello espressa in watt, Solitamente i valori emessi dal produttore corrispondono a valori a dispositivo spento, in stand-by, durante il normale utilizzo e alle sue massime prestazioni
450 W
Consumi (modalità stand-by)
The amount of electricity that is consumed when the product is on standby.
0,5 W
Tensione di ingresso AC
The voltage of the AC electricity that is inputted into the product.
100-240 V
Frequenza di ingresso AC
The range of alternating current frequencies the device can accept from the power source, measured in hertz (e.g., 45 - 65).
50 - 60 Hz
Condizioni ambientali
Intervallo temperatura di funzionamento
The minimum and maximum temperatures at which the product can be safely operated.
0 - 40 °C
Intervallo di temperatura
The minimum and maximum temperatures at which the product can be safely stored.
-20 - 60 °C
Range di umidità di funzionamento
The range of relative humidity, expressed as a percentage, within which the device can function correctly without damage or performance loss.
10 - 90%
Umidità
The permissible range of relative humidity, expressed as a percentage, within which the product can be stored without damage.
10 - 90%
Altitudine di funzionamento
The maximum and minimum height above sea level at which the device can function correctly, measured in m.
0 - 3000 m
Dimensioni e peso
Larghezza
The measurement or extent of something from side to side.
405 mm
Profondità
The distance from the front to the back of something.
305 mm
Altezza
Altezza del prodotto
145 mm
Peso
Il peso del prodotto senza imballaggio (peso netto). Se possibile, il peso netto viene espresso compreso di accessori standard e forniture . Notate che alle volte il produttore interpreta troppo seriamente il peso del prodotto,tralasciando il peso degli accessori e/o fornimenti .
6,4 kg
Larghezza imballo
The distance from one side of the packaging to the other.
515 mm
Profondità imballo
The distance from the front to the back of the packaging.
490 mm
Altezza imballo
The distance from the top to the bottom of the packaging.
276 mm
Peso dell'imballo
Weight of the packaged product.
8,9 kg
Contenuto dell'imballo

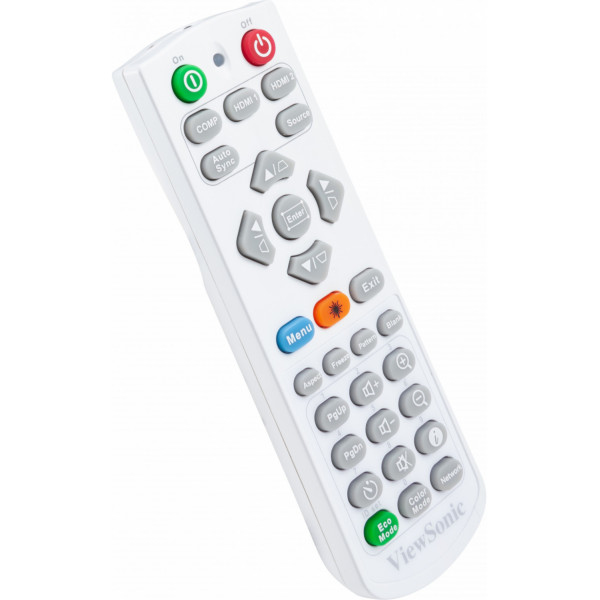

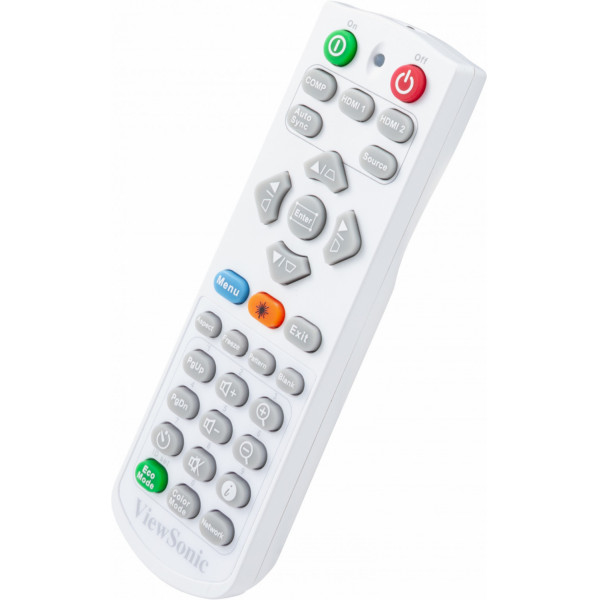

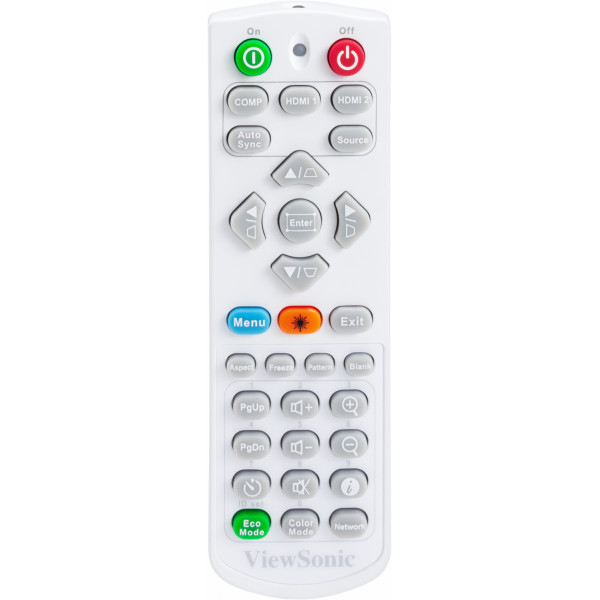

Telecomando portatile
Descrizione delle funzioni del telecomando manuale
Sì
Cavi inclusi
Specifies the types and quantities of connection cables provided with the product (e.g., 3.5 mm to 3.5 mm or SATA).
AC, VGA
Manuale dell'utente
Indicates whether a printed user manual is included in the package.
Sì
Dati logistici
Lunghezza del pallet
The total external length of the product including the shipping pallet, measured in millimetres.
98 cm
Ampiezza del pallet
The total width of the product including its shipping pallet, measured in millimetres.
103 cm
Altezza del pallet
The total height of the product when packed on a pallet, including the pallet itself, measured in millimetres.
178 cm
Quantità per cartone principale
The total quantity of individual units contained within a single master shipping case, measured in pc(s).
1 pz
Codice del Sistema Armonizzato (SA)
The standardized numerical method of classifying traded products used by customs authorities around the world to identify goods for tariffs and statistics.
8528620000
Viewsonic LS920WU. Luminosità proiettore: 6000 ANSI lumen, Tecnologia di proiezione: DMD, Risoluzione nativa del proiettore: WUXGA (1920x1200). Tipo di sorgente luminosa: Laser, Durata della sorgente luminosa: 20000 h, Potenza della lampada: 74 W. Messa a fuoco: Manuale, Lunghezza focale: 14.3 - 22.9 mm, Range di apertura (F-F): 1,81 - 2,1. Formato video analogico: NTSC, PAL, SECAM, Risoluzioni grafiche supportate: 640 x 480 (VGA), 3840 x 2160. Tipo interfaccia seriale: RS-232, Tipo di connettore HDMI: Taglia piena, Versione HDMI: 2.0b
